Standard Roller Fixed TR---. 0200

• Lubricated for lifetime
• Optional from size 60 relubricable.

Use profile UP---.0700. Profile UP---.0730 for TR050.0200
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! Dynamic load capacity refers to bearing.

Dimensions in mm.

Product Information

Designation Dynamic Load Capacity Radial Dynamic Load Capacity Axial System Load Capacity Radial System Load Capacity Axial
24500 N 7500 N 5300 N 2000 N
31000 N 11000 N 8870 N 2950 N
45500 N 13000 N 11400 N 3150 N
48000 N 18000 N 12870 N 5000 N
68000 N 23000 N 20370 N 5100 N
81000 N 31000 N 24060 N 8900 N
110000 N 43000 N 33440 N 9800 N
151000 N 68000 N 51940 N 17400 N
207000 N 73000 N 76000 N 23000 N

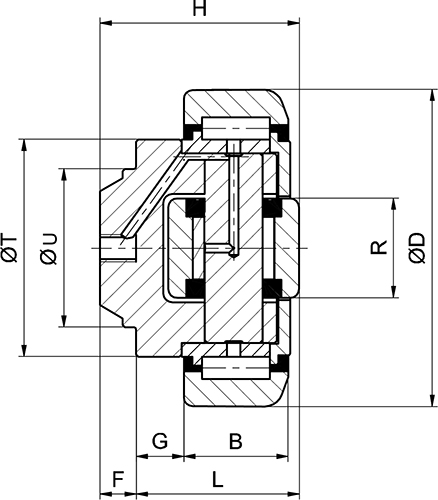

Technical Drawing
Designation B D F G H L R T U
17 52,50 6 5 33 27 16 40 30
20 62,50 7 9 37,50 30,50 20 42 30
23 70,10 8 10,50 44 36 22 48 35
23 77,70 11,50 10,50 48 36,50 24 54 40
30 88,40 13 10,50 57 44 26 59 45
31 107,70 14 20 69 55 34 71 60
37 123 16,30 14 72,30 56 40 80 60
45 149 20 8,50 78,50 58,50 50 103 60
57,30 180 19,40 12,50 95,70 76,30 60 124 100
