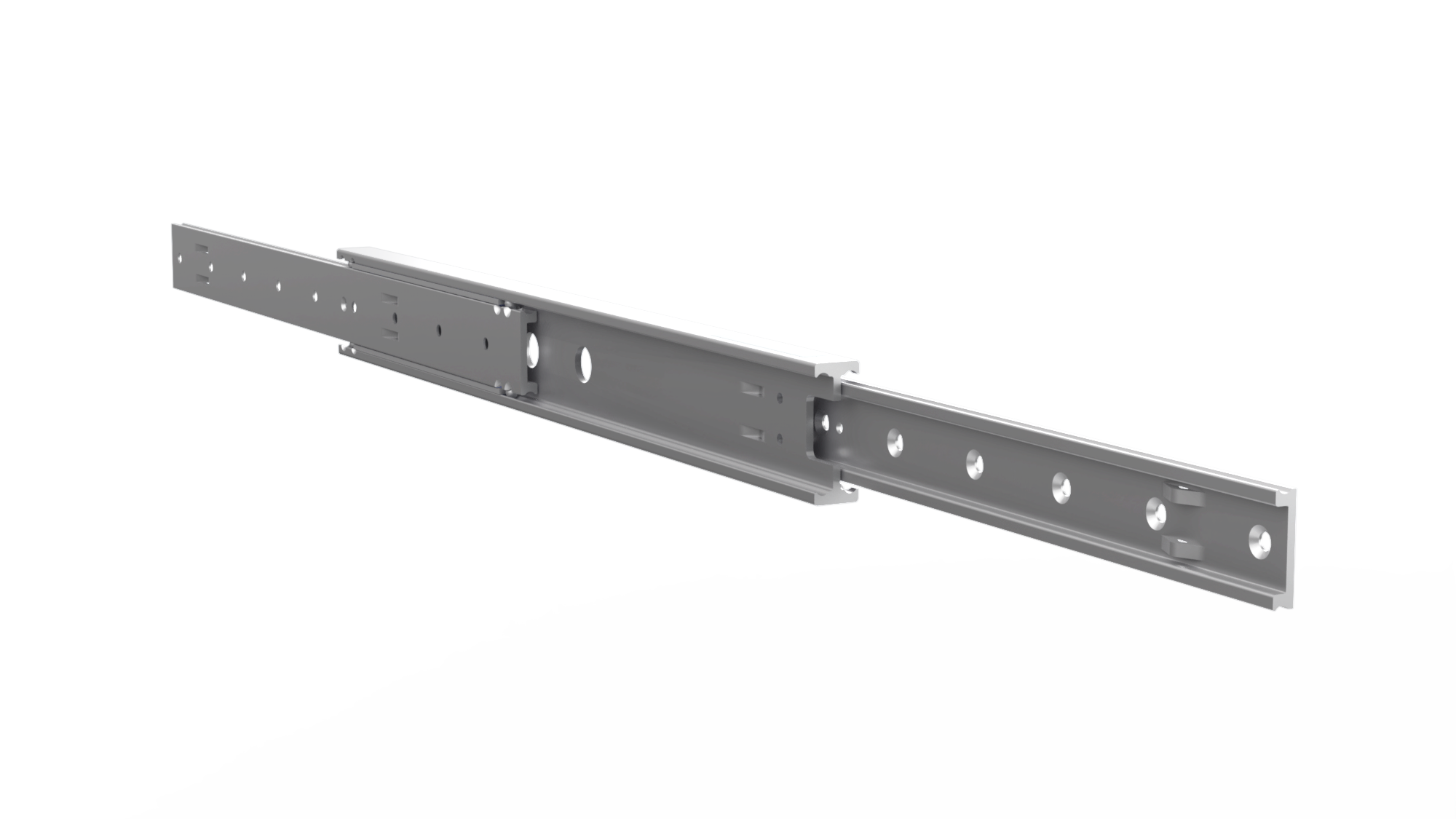

210 Non Lock - 100% Extension

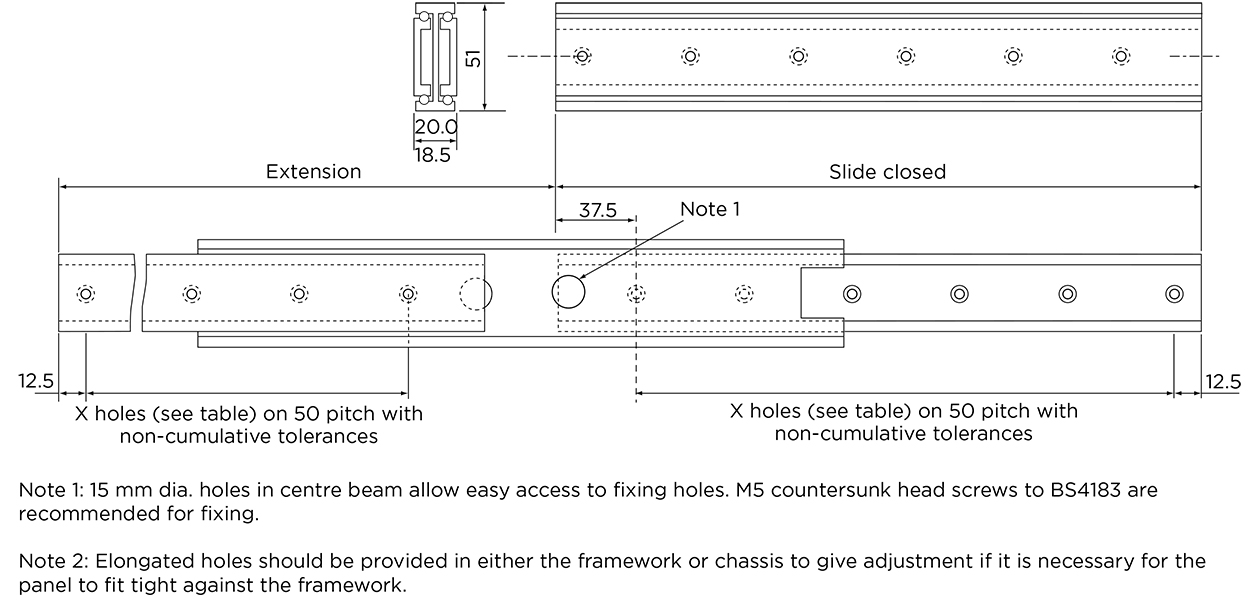

Note 1: 15 mm dia. holes in centre beam allow easy access to fixing holes. M5 countersunk head screws to BS4183 are recommended for fixing.
Note 2: Elongated holes should be provided in either the framework or chassis to give adjustment if it is necessary for the panel to fit tight against the framework.
All dimensions in mm.
Note 2: Elongated holes should be provided in either the framework or chassis to give adjustment if it is necessary for the panel to fit tight against the framework.
All dimensions in mm.
| Designation | Closed Length | Extension Length | Load / Pair | Number of Fixing Holes |
|---|---|---|---|---|
|
|
300,00 | 330,00 | 550 N | 6 |
|
|
350,00 | 380,00 | 620 N | 7 |
|
|
400,00 | 430,00 | 710 N | 8 |
|
|
450,00 | 480,00 | 780 N | 9 |
|
|
500,00 | 530,00 | 840 N | 10 |
|
|
550,00 | 580,00 | 880 N | 11 |
|
|
600,00 | 630,00 | 900 N | 12 |
