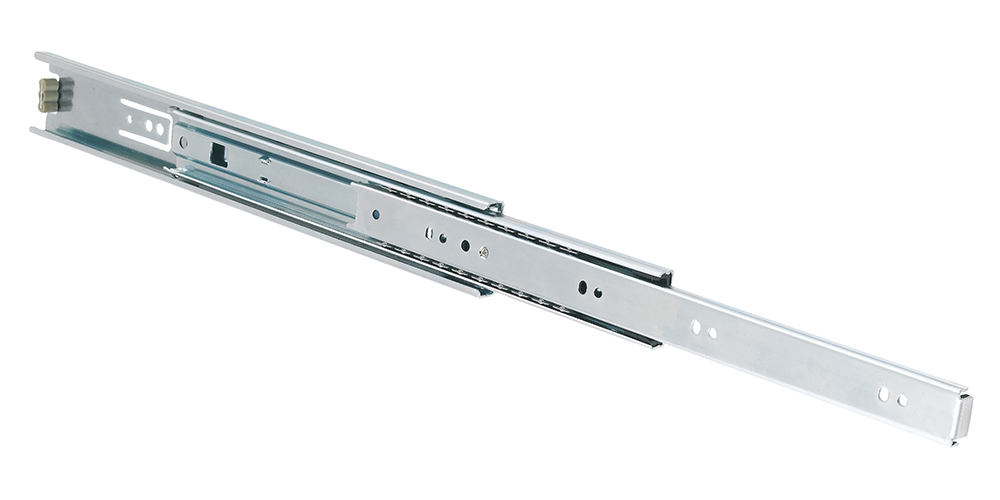

3045 - 100% Extension

Extension length ± 10 mm

Recommended fastening screws ISO 7380 M4 sliding element, ISO7380 M5 bottom element. If use of other fastening screw for bottom element use max size M5 and make sure the head of the screw fits inside the guide.

All dimensions in mm.
Download PDF

Product Information

Technical Drawing
Designation Select all Lead Time * Closed Length Extension Length Load / Pair
1 250 260 450 N
Compare
Get quote
1 300 310 450 N
Compare
Get quote
1 350 360 450 N
Compare
Get quote
1 400 410 450 N
Compare
Get quote
1 450 460 450 N
Compare
Get quote
1 500 510 400 N
Compare
Get quote
1 550 560 360 N
Compare
Get quote
1 600 610 320 N
Compare
Get quote
1 650 660 290 N
Compare
Get quote
1 700 710 260 N
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

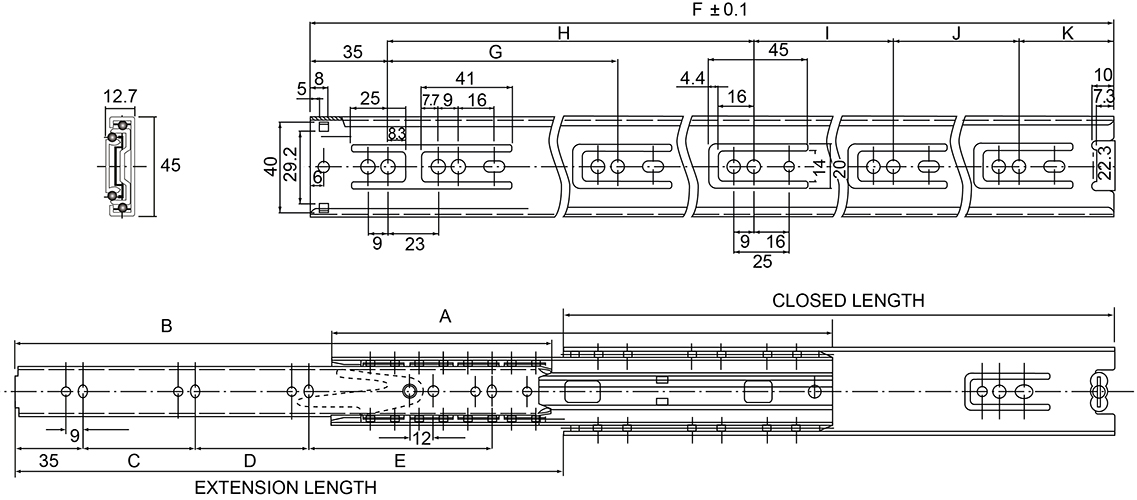

Technical Drawing
Designation Select all A B C D E F G H I J K
234 248 96 96 - 250 160 - - - 55
Compare
Get quote
284 297 96 128 - 300 128 192 - - 73
Compare
Get quote
334 347 96 64 96 350 128 224 - - 91
Compare
Get quote
384 398 96 64 128 400 128 224 96 - 45
Compare
Get quote
434 448 96 96 160 450 128 224 128 - 63
Compare
Get quote
484 498 96 96 192 500 128 224 128 64 49
Compare
Get quote
534 547 96 128 224 550 128 224 128 96 67
Compare
Get quote
584 597 96 160 224 600 128 224 128 128 85
Compare
Get quote
634 647 96 160 256 650 128 224 128 192 71
Compare
Get quote
684 697 96 192 256 700 128 224 128 224 89
