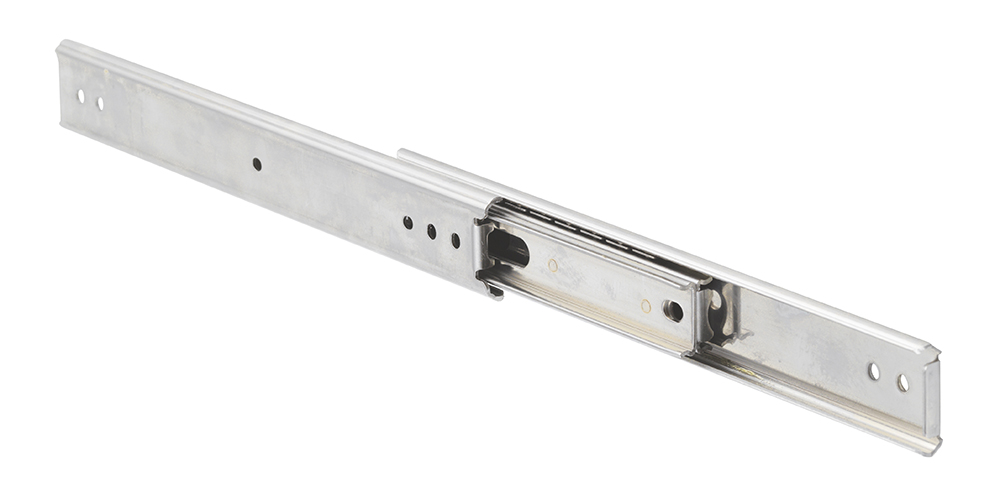

3560 - 100% Extension
All dimensions in mm.
System Load Capacity value refers to a pair of rails.
Read more
System Load Capacity value refers to a pair of rails.
Product Information
Material: Slide members and component parts - stainless SUS304. Balls - SUS304.
Extension: 100%
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Closed Length | Extension Length | System Load Capacity (N) | Weight/pc (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 254 | 264 | 600 | 0.5 | ||||
|
|
|
1 | 304.8 | 314.8 | 600 | 0.61 | ||||
|
|
|
1 | 355.6 | 365.6 | 600 | 0.72 | ||||
|
|
|
1 | 406.4 | 416.4 | 600 | 0.83 | ||||
|
|
|
1 | 457.2 | 467.2 | 600 | 0.93 | ||||
|
|
|
1 | 508 | 518 | 600 | 1.04 | ||||
|
|
|
1 | 558.8 | 568.8 | 500 | 1.15 | ||||
|
|
|
1 | 609.6 | 619.6 | 450 | 1.24 | ||||
|
|
|
1 | 660.4 | 670.4 | 400 | 1.35 | ||||
|
|
|
1 | 711.2 | 721.2 | 320 | 1.43 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

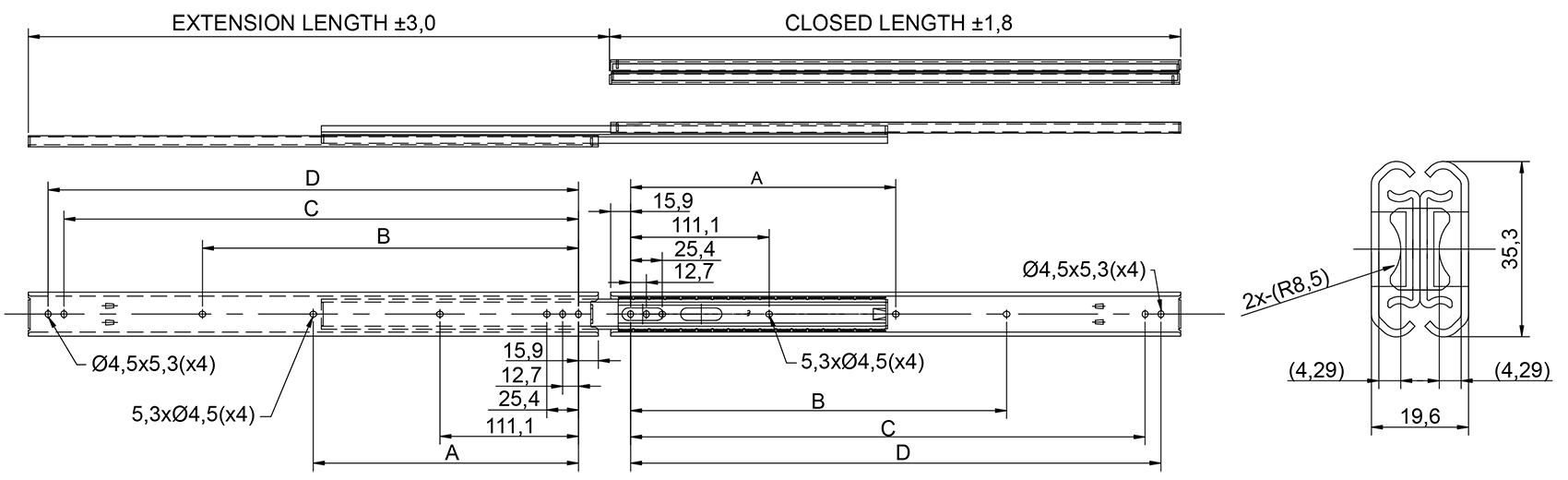

| Designation | Select all | CAD | Compare | Get quote | A | B | C | D | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
