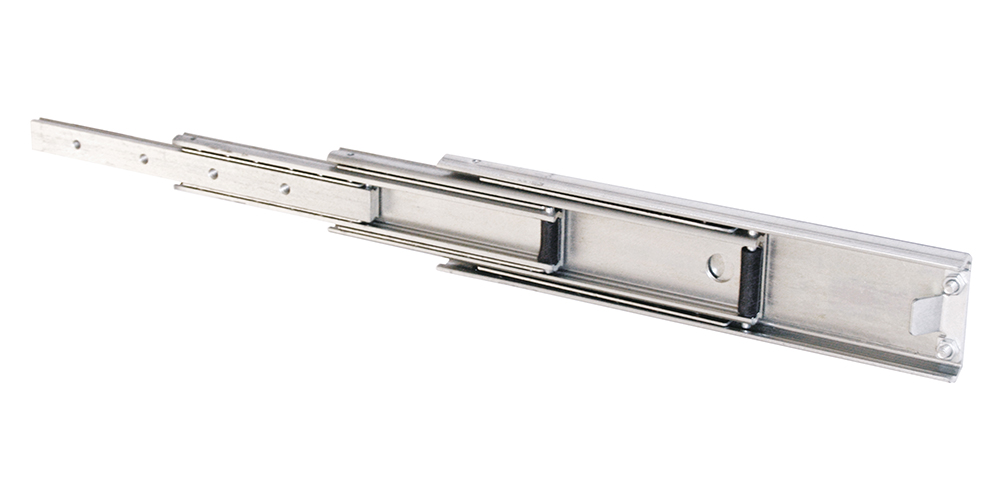

5040 - 140% Extension

All dimensions in mm.
Download PDF

Product Information

Technical Drawing
Designation Select all Lead Time * Closed Length Extension Length Load / Pair Number of Fixing Holes
1 300 420 1700 N 4
Compare
Get quote
1 350 490 1700 N 6
Compare
Get quote
1 400 560 1680 N 6
Compare
Get quote
1 450 630 1630 N 6
Compare
Get quote
1 500 700 1600 N 6
Compare
Get quote
1 550 770 1580 N 6
Compare
Get quote
1 600 840 1560 N 6
Compare
Get quote
1 650 910 1400 N 6
Compare
Get quote
1 700 980 1300 N 6
Compare
Get quote
1 750 1 050 1200 N 6
Compare
Get quote
1 800 1 120 1180 N 6
Compare
Get quote
1 850 1 190 1100 N 6
Compare
Get quote
1 900 1 260 1000 N 6
Compare
Get quote
1 950 1 330 900 N 6
Compare
Get quote
1 1 000 1 400 800 N 6
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all A B
50 142,50
Compare
Get quote
25 167,50
Compare
Get quote
50 192,50
Compare
Get quote
75 217,50
Compare
Get quote
100 242,50
Compare
Get quote
125 267,50
Compare
Get quote
150 292,50
Compare
Get quote
175 317,50
Compare
Get quote
200 342,50
Compare
Get quote
225 367,50
Compare
Get quote
250 392,50
Compare
Get quote
275 417,50
Compare
Get quote
300 442,50
Compare
Get quote
325 467,50
Compare
Get quote
350 492,50
Compare
Get quote
