SFKR

STOCK ITEM

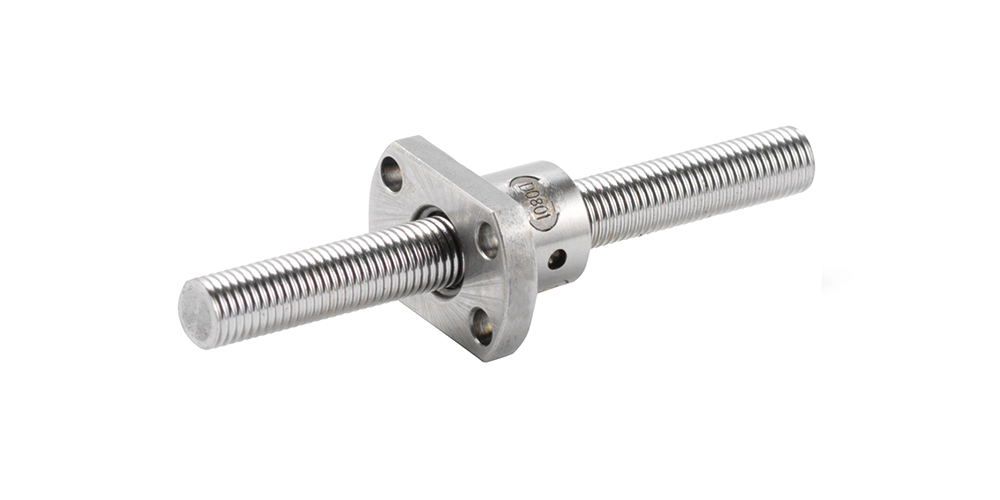

SFKR are miniature ball screws, best suitable for small manipulators, instruments etc. They enable very high positioning precision and stiffness because of the small lead. For optimal operation they do, however, require very high cleanliness and accuracy when built into an application.

A limited service- and prototyping-stock of basic grade with rolled spindles (C7) and axial play in the nut (P0) is kept available. For more demanding applications or larger quantities, contact us.

Standard nuts are with scrapers. Other types on request.

All dimensions in mm.
Read more
Designation Select all CAD Compare Get quote Lead Time * Compatible with Dynamic Load Ratings Ca (N) Static Load Ratings C0a (N) Ball diameter Turns x circuits
Get quote 1 1110 2240 0.8 1 x 3
Get quote 1 FKN06 1610 4030 0.8 1 x 4
Get quote 1 FKN06 2430 5690 1.2 1 x 3
Get quote 1 BKN08 / FKN08 / BFN08 3340 9060 1.2 1 x 4
Get quote 1 BKN10 / FKN10 / BFN10 / FFN10 3540 10530 1.2 1 x 4

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B D H L W X d0 x Lead
Get quote 24 3.5 12 16 15 18 3.4 6 x 1
Get quote 27 4 14 18 16 21 3.4 8 x 1
Get quote 35 5 18 22 28 27 4.5 10 x 2
Get quote 37 5 20 24 28 29 4.5 12 x 2
Get quote 40 6 21 26 23 31 5.5 14 x 2
