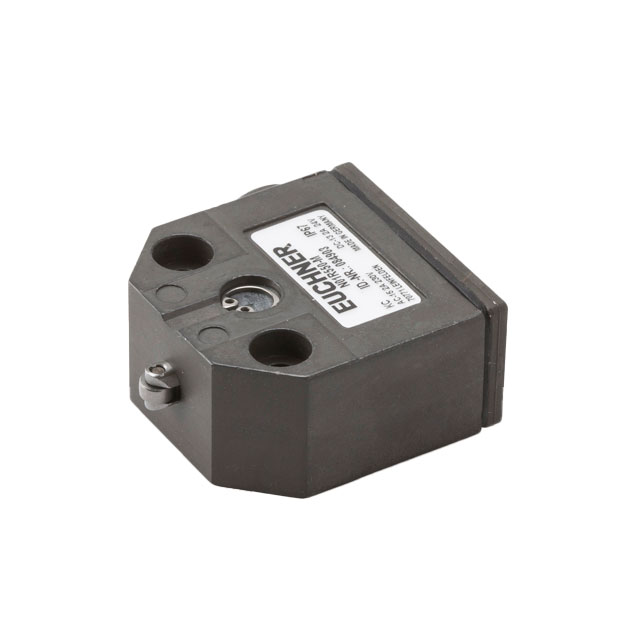

MS - Mechanical Switch

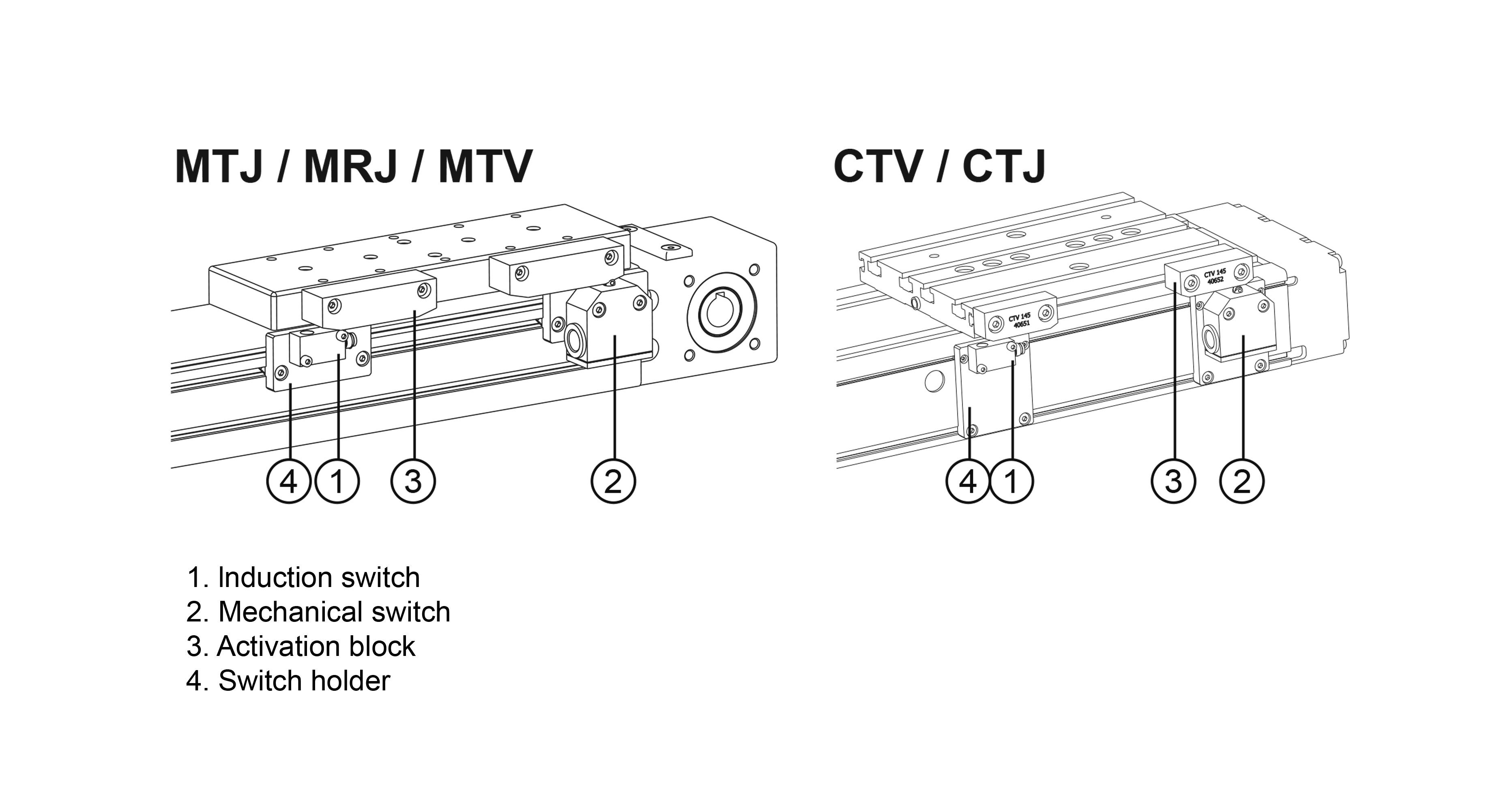

Mounting and using the induction and mechanical switch, can be done only if the CTV and CTJ series linear units are delivered with connection plates.

Contact Rollco for CAD-files.

Dimensions in mm.
Lataa PDF code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

Protection class IEC 60529: IP67
Ambient Temperature (°C): -5 ... +80
Operating Point Accuracy (mm): ± 0.05
Approach Speed Max. (m/min): 45
Approach Speed Min. (m/min): 0.01
Switching contact: 1 changeover
Switching principle: Snap-action
Rated voltage: 250 V AC
Switching Current, min. at. (mA): 10
Switching Voltage (V DC): 24
Cable entry: M12 x 1.5
Calculation Tool
Designation Select all Lead Time * Compatible with CAD Compare
/storage/BFBD2438BCC1E073925BC181AB7390F127E69065ADCBE400683D9FCBAFA9ACE7/4abc25f1113e4b4881a15a0800c33cca/stp/media/79dc13a92c14472eada93c2911484da6/CAD_ActivationBlockFixingScrews-43243_MSMechanicalSwitch_Rollco.stp 2 MTJ/MRJ 40
Get quote
/storage/192EA08D8494CAA9874D0610124BE8057464DDC3790F0A44B2009B354EC02AC6/51a32fafda954fc3a04a5e28736176a9/stp/media/c0e0686d5b73461c86c188118f09af90/CAD_ActivationBlockFixingScrews-52022_MSMechanicalSwitch_Rollco.stp 2 MTJZ 40
Get quote
/storage/0CFC679ACC908BCB58C282CAC871E57AF3B0B653E5BC714CBD7B31038F8DBCAD/1b53d1589267490fbd8f1862084824c4/stp/media/21f93fc8b2a54d5b94999f7d25f826b4/CAD_ActivationBlockFixingScrews-43247_MSMechanicalSwitch_Rollco.stp 2 MTJ/MRJ/MTV 65 MTJZ 65/80
Get quote
/storage/F5C3AB67D33AF22B54639F7E52C7FE319D0D6A6383777788645449AA6FE40F82/3ce3fbb2f9fc4c6ba24a3ad9d6ec934b/stp/media/777f1337675845238aed9128e1d9a674/CAD_ActivationBlockFixingScrews-43256_MSMechanicalSwitch_Rollco.stp 2 MTJ/MRJ/MTV 80
Get quote
/storage/2F71B66A65078D3E6C7FFE5DAE97ECAB40B20BA08164DBBB38ABD542EDB14997/dbc50080187f42e58ff3dca1e680528c/stp/media/b0c4c23f06d043a798018771bd8017b5/CAD_ActivationBlockFixingScrews-47827_MSMechanicalSwitch_Rollco.stp 2 MTJ/MRJ/MTV 110
Get quote
2 MTJZ 110
Get quote
/storage/B59097644B6C2EA3E8F99E639271008E2F477E7E20B98165D95F54059E2B7A0B/2a1d6162df464ee09b2cd087cc8c8282/stp/media/2b531c9c5c24467ca719c258b93f2ba3/CAD_ActivationBlockFixingScrews-49030_MSMechanicalSwitch_Rollco.stp 2 MTJ ECO 40
Get quote
/storage/E43A6F3388A3CFC23F0E2245232D66BAA3DD2CE365F41B8276717B5AE529278E/c4563fcb1e774baeb9e711c14ba3bb9d/stp/media/b24b7631f1fb4e6a860e9a928a7c5af9/CAD_ActivationBlockFixingScrews-49032_MSMechanicalSwitch_Rollco.stp 2 CTV/CTJ 90
Get quote
/storage/29594D76B5222FC08650594B1B21D0DF686579CE5F48F41C18F0AF16291DBD50/000d14dd1f4c468bbfe335a5be9a00f1/stp/media/295baf9d135446b091f09cf5bdaa04fd/CAD_ActivationBlockFixingScrews-49031_MSMechanicalSwitch_Rollco.stp 2 CTV/CTJ 110
Get quote
/storage/453C2E900260A03627A508EF9FF9DC8D12054D2A1F0DEE92D9F01F9CD151D263/4f680674701149e69641727aa1e775b3/stp/media/b6dcf9e6706243e891c0bc72378f3b10/CAD_ActivationBlockFixingScrews-40652_MSMechanicalSwitch_Rollco.stp 2 CTV/CTJ 145/200
Get quote
/storage/8FDD35F99D68E892199203137AAC8BDA76095778B84A1C4197E2B10D38D0F765/a00287e3d1c1415ca1ca5858834e842c/stp/media/1ac54f03a51045f4bee9db69aeb6e32b/CAD_MechanicalSwitchOnly-47921_MSMechanicalSwitch_Rollco.stp 2 All models
Get quote
/storage/8FEF58E407B2162365B56AC26035DB9896F304E510E257D38C83553237515EA7/8530f902509a4280b10cd7cb553d0323/stp/media/9851bd8c087f4e0da5fcaa7bcadc1c43/CAD_MechanicalSwitchMountingElements-40683_MSMechanicalSwitch_Rollco.stp 2 MTJ/MRJ 40 MTJZ 40
Get quote
/storage/7333B515EEE9EC9E781A2AF64457B4F207ED2DD0DAD7B5DF584E19637B113FCC/5bb7496cdd1344769bb41e944744e672/stp/media/aeeb1fb9b7554c3a84dace94dbb81839/CAD_MechanicalSwitchMountingElements-40687_MSMechanicalSwitch_Rollco.stp 2 MTJ/MRJ/MTV 65 MTJZ 65/80
Get quote
/storage/1573C66F4BDF4ABAFBF65B4CAABA2566D0AF37BBC0C7189826DE462D60139761/3f392929fcf74a8d9e202cf8cd11c54e/stp/media/fa88422aa95e4444b61fab8130a30350/CAD_MechanicalSwitchMountingElements-40689_MSMechanicalSwitch_Rollco.stp 2 MTJ/MRJ/MTV 80
Get quote
/storage/BBBED72B92CD2794D98E816C2D164631D07CA3AE4D88E15F4BE114D2360E858E/b4fa679b46a94f65bab85d5f2443f7d2/stp/media/7e9d81b0b9d44063beacd4e3eb9cb457/CAD_MechanicalSwitchMountingElements-47826_MSMechanicalSwitch_Rollco.stp 2 MTJ/MRJ/MTV 110
Get quote
2 MTJZ 110
Get quote
/storage/FC446666F354CFA106C0E9D49C22AE77692FFF24B06A47B60E9FD5AD66BA4D5B/efc97e54ae044112bf7d45f6b8be2912/stp/media/24a6a1556faa43c3b78cd5b87402428e/CAD_MechanicalSwitchMountingElements-49035_MSMechanicalSwitch_Rollco.stp 2 MTJ ECO 40
Get quote
/storage/E558CA0CD130FC179EE1DFB4B4C88797D0A745A577967FBC58BF21B4D6A97898/7087ca461ef244e2b3b90f06e233b8e0/stp/media/61c095032c2d4f95a3588a91fe6b564c/CAD_MechanicalSwitchMountingElements-49034_MSMechanicalSwitch_Rollco.stp 2 CTV/CTJ 90
Get quote
/storage/EDC00C8E3263E9E10C76EF1B351DFBC9E06C04A2FE1878E1CA8DC9CD0227E797/d4e4cf3b27d948d8b88056e9037a469c/stp/media/069b4744fd7940afb66004bda580957f/CAD_MechanicalSwitchMountingElements-49033_MSMechanicalSwitch_Rollco.stp 2 CTV/CTJ 110
Get quote
/storage/793C4E2DBF0AF8B067F0D7A1F94C748F7BFB29F7B413A5250B746BCB7A200BEF/c4dab5e20b1740dbb8490e51dda82885/stp/media/0cd04f7daec94e55bbbf6e673010ab45/CAD_MechanicalSwitchMountingElements-47939_MSMechanicalSwitch_Rollco.stp 2 CTV/CTJ 145
Get quote
2 CTV/CTJ 200
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
