Motor adapter VK
For MCE & MSCE Mini Electric Cylinder & Slider

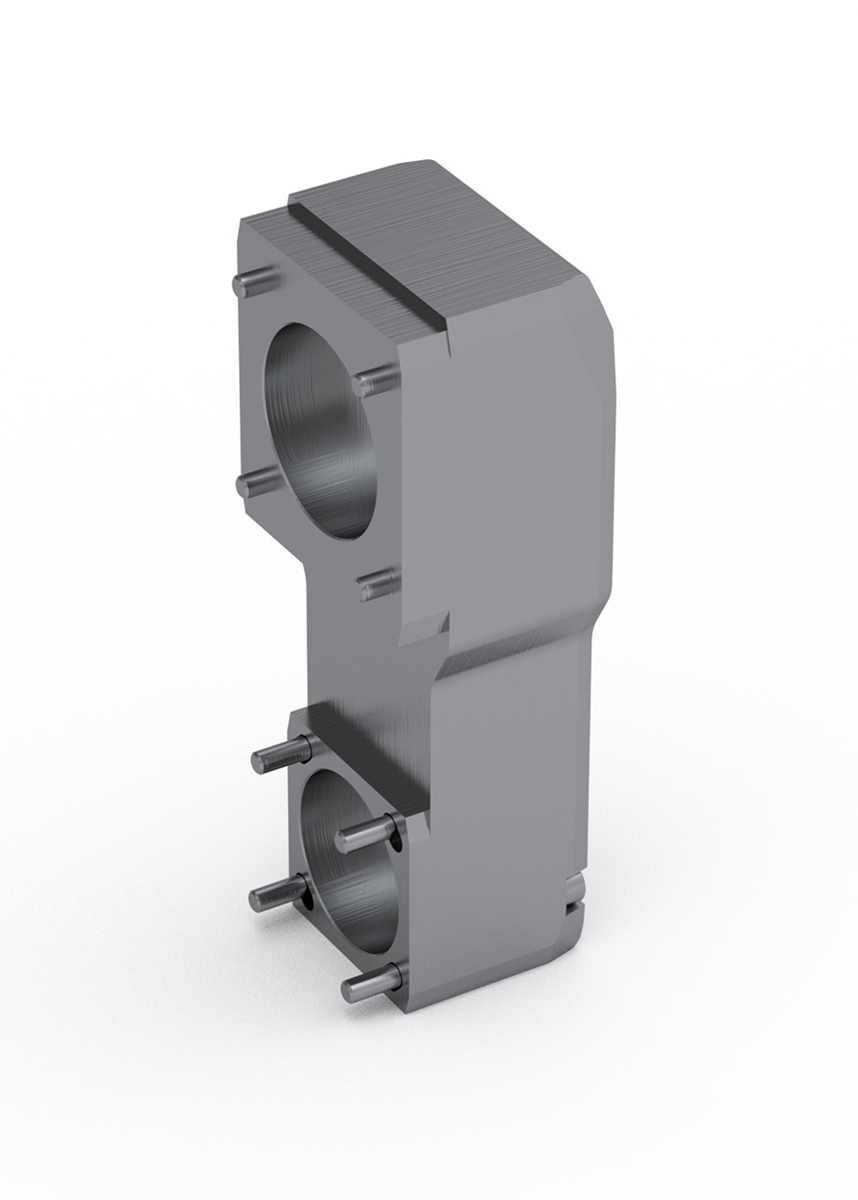

Motor side drive MSD with a timing belt
Note:
Max. radial load on shaft is linearly dependent on the maximum drive torque Mp, MSD and is generated by the correct pretension of the belt. This load needs to be reduced in accordance with the capabilities of the motor.
Mass values below are average values and could differ depending to the motor dimensions.
Values for dimension N in the tables below are standard values and could differ depending to the motor dimensions M and L1.
Higher value for dimension C is also possible with thicker tensioning plate (dimension N increases).
Minimum dimension L1 depends on the size of particular clamping set. Values can be found the in the tables below.
Keyway is not valid for clamping set.
□ = Square cross section
Max. radial load on shaft is linearly dependent on the maximum drive torque Mp, MSD and is generated by the correct pretension of the belt. This load needs to be reduced in accordance with the capabilities of the motor.
Mass values below are average values and could differ depending to the motor dimensions.
Values for dimension N in the tables below are standard values and could differ depending to the motor dimensions M and L1.
Higher value for dimension C is also possible with thicker tensioning plate (dimension N increases).
Minimum dimension L1 depends on the size of particular clamping set. Values can be found the in the tables below.
Keyway is not valid for clamping set.
□ = Square cross section
Lataa PDF (kaikki tiedot)
code.product.loadingpdf
+
Lisää PDF-luetteloon
Product Information
| Designation | Select all | Lead Time * | Type | Compatible with | Gear ratio (I) | Max. Drive Torque (Nm) | Max. Radial Load on Shaft (N) | No Load Torque (Nm) | Mass Moment of Inertia (10⁻⁶ kg m²) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/D118B0D5D052393783FD06D9477DD74014BFBCDE32020DF5DFF175C0F195AA1A/a590e1634ad2471085ffc3601e5545c9/STP/media/9102952a7e8e41298169738342683351/CAD_MSD25-T1-108261_MotorSideDriveMSD_Rollco.STP | 2 | T1 | MCE/MSCE 25 | 1 | 0.1 | 15 | 0.01 | 0.39 | 0.1 |
|
||
|
|
/storage/457F799D2AEC115FB7D343FF85FFFDEF36E5EBBC0BD42EE8EFDFC8097DAA4C8F/152169ee178e45d3b303cb763b3de424/STP/media/244dd4244777481cbd7029ff478f0383/CAD_MSD32-T1-108262_MotorSideDriveMSD_Rollco.STP | 2 | T1 | MCE/MSCE 32 | 1 | 0.1 | 15 | 0.015 | 0.39 | 0.12 |
|
||
|
|
/storage/E48CFE089D8CD12438DAEFB9F3E2D0093AC3D4D02E66F5F64D2F646DAC991946/55d62dc409e646c7877714350baee013/STP/media/07f31584ec67452bbe56fe62bbdff544/CAD_MSD32-T2-108263_MotorSideDriveMSD_Rollco.STP | 2 | T2 | MCE/MSCE 32 | 1 | 0.25 | 15 | 0.015 | 1.04 | 0.18 |
|
||
|
|
/storage/4A1DFB58F3CBAADD61A1A7F5C17580DB9AB1B4E6A7BD5054468E6D1906709D73/6f6ffecdb5a14bcb85f6487756ca74af/STP/media/fe14ea24289248a1af2dea10175a7621/CAD_MSD45-T1-108264_MotorSideDriveMSD_Rollco.STP | 2 | T1 | MCE/MSCE 45 | 1 | 0.3 | 15 | 0.02 | 4.16 | 0.28 |
|
||
|
|
/storage/A037F92E127669C69DDD0DDC57FBD9FFE22BFCD3404337D42DC0A3B8AFA5B8D3/a8e516ee78854b81abed75896d7d47ef/STP/media/cfc3365e44644d0db4c046f2006bdcfb/CAD_MSD45-T2-108265_MotorSideDriveMSD_Rollco.STP | 2 | T2 | MCE/MSCE 45 | 1 | 0.8 | 45 | 0.02 | 4.20 | 0.36 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | B | E | F | G | G2 | N | K | L | P | M2 | F2 | J | C | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/D118B0D5D052393783FD06D9477DD74014BFBCDE32020DF5DFF175C0F195AA1A/a590e1634ad2471085ffc3601e5545c9/STP/media/9102952a7e8e41298169738342683351/CAD_MSD25-T1-108261_MotorSideDriveMSD_Rollco.STP | max 35 | 52.5 (±0.5) | 31.5 | 22 | 19.5 | 5.5 | 12.25 | 83 | 18 | M4 × 6 | 24.5 | 38.5 | max 25 |
|
||
|
|
/storage/457F799D2AEC115FB7D343FF85FFFDEF36E5EBBC0BD42EE8EFDFC8097DAA4C8F/152169ee178e45d3b303cb763b3de424/STP/media/244dd4244777481cbd7029ff478f0383/CAD_MSD32-T1-108262_MotorSideDriveMSD_Rollco.STP | max 35 | 52.5 (±0.5) | 31.5 | 22 | 19.5 | 5.5 | 15.75 | 86.5 | 22 | M5 × 7 | 31.5 | 0 | max 25 |
|
||
|
|
/storage/E48CFE089D8CD12438DAEFB9F3E2D0093AC3D4D02E66F5F64D2F646DAC991946/55d62dc409e646c7877714350baee013/STP/media/07f31584ec67452bbe56fe62bbdff544/CAD_MSD32-T2-108263_MotorSideDriveMSD_Rollco.STP | max 50 | 70.5 (±0.5) | 44.5 | 22 | 19.5 | 6.5 | 15.75 | 110.5 | 22 | M5 × 7 | 31.5 | 48 | max 36 |
|
||
|
|
/storage/4A1DFB58F3CBAADD61A1A7F5C17580DB9AB1B4E6A7BD5054468E6D1906709D73/6f6ffecdb5a14bcb85f6487756ca74af/STP/media/fe14ea24289248a1af2dea10175a7621/CAD_MSD45-T1-108264_MotorSideDriveMSD_Rollco.STP | max 50 | 81 (±0.5) | 44.5 | 27.5 | 24.5 | 6.5 | 22.25 | 128 | 32 | M6 × 7 | 44.5 | 0 | max 36 |
|
||
|
|
/storage/A037F92E127669C69DDD0DDC57FBD9FFE22BFCD3404337D42DC0A3B8AFA5B8D3/a8e516ee78854b81abed75896d7d47ef/STP/media/cfc3365e44644d0db4c046f2006bdcfb/CAD_MSD45-T2-108265_MotorSideDriveMSD_Rollco.STP | max 70 | 88.5 (±0.5) | 59.5 | 27.5 | 24.5 | 6 | 22.25 | 144 | 32 | M6 × 7 | 44.5 | 64.5 | max 50 |
|
| Designation | Select all | A | B | L1 Min. Clamping set | L1 Max. Clamping set | C | ØD Max. Clamping set | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/D118B0D5D052393783FD06D9477DD74014BFBCDE32020DF5DFF175C0F195AA1A/a590e1634ad2471085ffc3601e5545c9/STP/media/9102952a7e8e41298169738342683351/CAD_MSD25-T1-108261_MotorSideDriveMSD_Rollco.STP | max 34 | max 35 | ** | 20 | max 25 | 6.35 |
|
||
|
|
/storage/457F799D2AEC115FB7D343FF85FFFDEF36E5EBBC0BD42EE8EFDFC8097DAA4C8F/152169ee178e45d3b303cb763b3de424/STP/media/244dd4244777481cbd7029ff478f0383/CAD_MSD32-T1-108262_MotorSideDriveMSD_Rollco.STP | max 34 | max 35 | ** | 20 | max 25 | 6.35 |
|
||
|
|
/storage/E48CFE089D8CD12438DAEFB9F3E2D0093AC3D4D02E66F5F64D2F646DAC991946/55d62dc409e646c7877714350baee013/STP/media/07f31584ec67452bbe56fe62bbdff544/CAD_MSD32-T2-108263_MotorSideDriveMSD_Rollco.STP | max 46 | max 50 | ** | 24 | max 36 | 8 |
|
||
|
|
/storage/4A1DFB58F3CBAADD61A1A7F5C17580DB9AB1B4E6A7BD5054468E6D1906709D73/6f6ffecdb5a14bcb85f6487756ca74af/STP/media/fe14ea24289248a1af2dea10175a7621/CAD_MSD45-T1-108264_MotorSideDriveMSD_Rollco.STP | max 46 | max 50 | ** | 28 | max 36 | 8 |
|
||
|
|
/storage/A037F92E127669C69DDD0DDC57FBD9FFE22BFCD3404337D42DC0A3B8AFA5B8D3/a8e516ee78854b81abed75896d7d47ef/STP/media/cfc3365e44644d0db4c046f2006bdcfb/CAD_MSD45-T2-108265_MotorSideDriveMSD_Rollco.STP | max 59.5 | max 70 | ** | 28 | max 50 | 12.7 |
|
