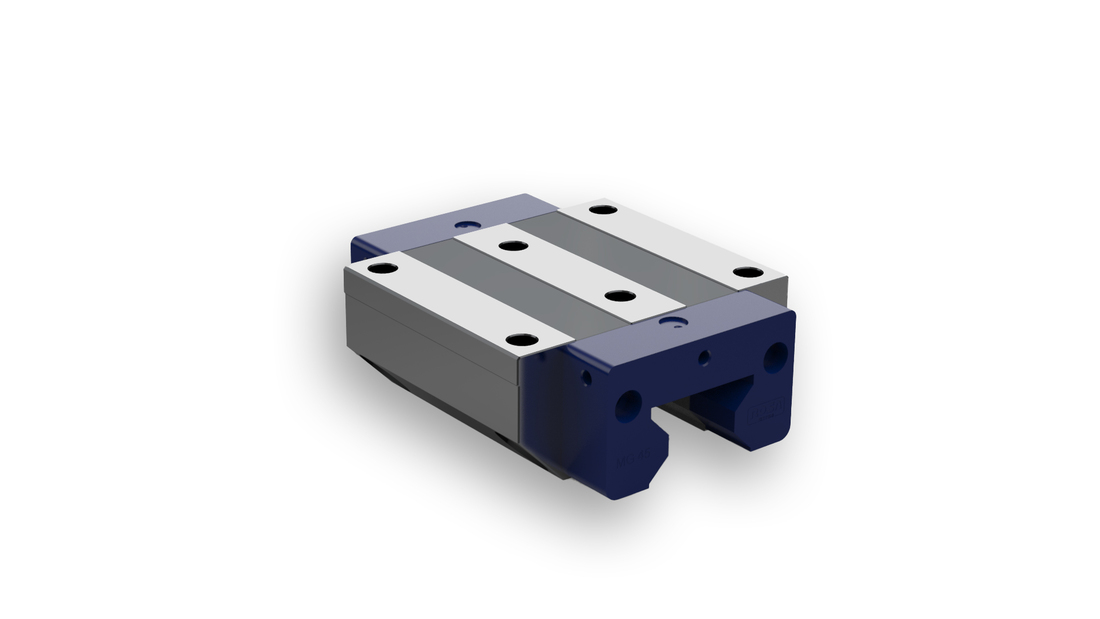

Wide Block Type LC

STOCK ITEM
The Rollco Roller Guides are highly developed solutions for the high-tech industry.

The optimized shape of the rails, the roller guides with logarithmic profiles and the integrated lubrication system multiplies the economical as well as the technical advantages.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload and accuracy class will affect lead time. Please contact us for exact delivery time for your request.
Read more
Designation Select all CAD Compare Get quote Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm)
Get quote 1 28700 57600 863 570 570 431 285 285
Get quote 2 53300 99000 2192 1235 1235 1179 674 674
Get quote 1 95000 184000 5070 2979 2979 2617 1538 1538
Get quote 2 132600 256000 8707 4981 4981 4503 2576 2576
Get quote 2 212000 414000 15780 10140 10140 8100 5210 5210

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L H W L1 L3 H1 h2 W1 W2 S1 S4 P Q S T D x d x g1 G1 Hole Pitch (P) P1 P2
Get quote 90.2 36 70 62 40 24.5 29.5 23 23.5 M8 14 - 5.5 M6 9 11 x 7 x 11.5 6.5 30 45 57
Get quote 119.3 48 100 80 52 32 41 34 33 M10 15.5 40 7.9 M8 12 15 x 9 x 17 10 - 62 82
Get quote 147.3 60 120 101.3 60 40 50 45 37.5 M12 17.6 52.5 8 M10 15 20 x 14 x 19 12 - 80 100
Get quote 173 70 140 120 70 48 57 53 43.5 M14 21.5 60 9 M12 18 24 x 16 x 22 13.5 - 95 116
Get quote 221.8 90 170 159.8 82 55 78 63 53.5 M16 29 75 15 M14 22 26 x 18 x 26 19.5 - 110 142
