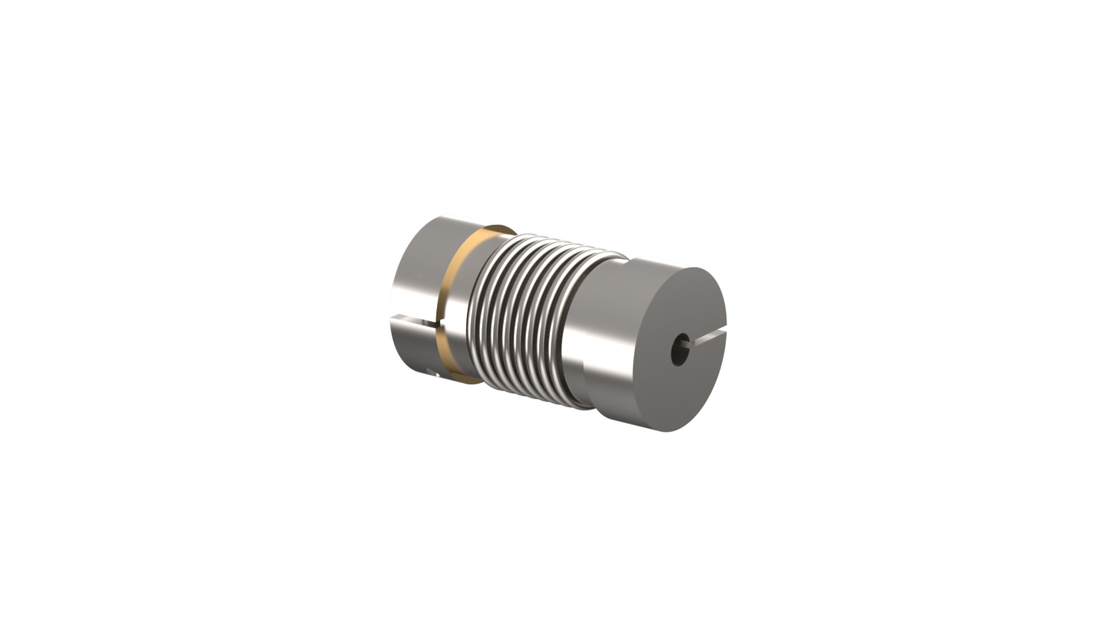

Miniature Metal Bellows Coupling MKM

NEW
• Standard series with lateral clamping hub
• High torsional stiffness - flexible

Tightening torque refers to screws.

Dimensions in mm. Length dimensions according to DIN ISO 2768 cH.
Read more

Product Information

Material: Bellows: stainless steel Hubs: high-tensile strength aluminium Clamping screws: ISO 4762 - 12.9 Press-fit wire: brass
Temperature range (°C): –40° to +200°C
Max. Speed (rpm): 20 000
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD
Designation Select all CAD Compare Get quote Lead Time * Nominal Torque (Nm) Max. Torque (Nm) Moment of inertia (10⁻⁶kg*m²) Torsional stiffness (Nm/arcmin) Axial max. shaft misalignment (mm) Lateral max. shaft misalignment (mm) Axial spring rate (N/mm) Lateral spring rate (N/mm) Tightening Torque (Nm) Weight (g)
Request quote 2 0.4 0.8 0.3 50 0.35 0.2 10 15 1 10
Request quote 2 0.9 1.8 0.4 90 0.3 0.2 21 26 1 12
Request quote 2 2 4 3.0 230 0.5 0.2 15 15 2 30
Request quote 2 4 8 3.0 4 560 0.4 0.2 35 65 2 40
Request quote 2 7 14 14 1 100 0.6 0.25 45 60 4 80
Request quote 2 8 16 26 1 350 0.8 0.3 16 24 8 130
Request quote 2 12 24 30 2 050 0.7 0.25 40 70 8 125

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote Nominal Torque (Nm) A B L C g f E ØD1/2 min. ØD1/2 max.
Request quote 0.4 16.5 - 30 9 12 M2.5 4.6 3 6.35
Request quote 0.9 16.5 - 31.5 9 13.5 M2.5 4.6 3 6.35
Request quote 2 24.5 - 42 13 16 M3 7.5 3 10
Request quote 4 24.5 - 44 13 18 M3 7.5 5 10
Request quote 7 34 ±0.5 32.5 57 14 29 M4 11 6 17
Request quote 8 39.5 - 60 16.6 26.5 M5 13 6 19
Request quote 12 39.5 - 62 16.6 29 M5 13 6 19
