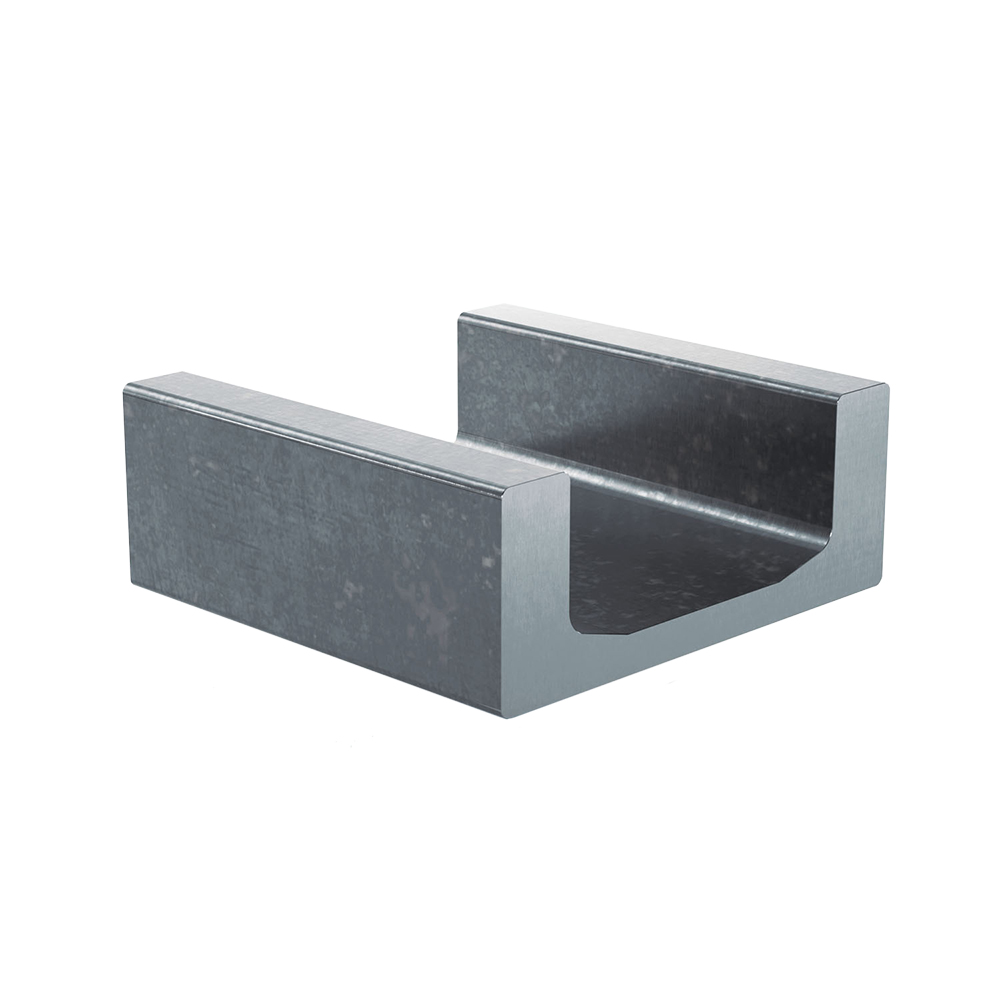

Stainless U-Profile UP---.0780

• Stainless steel U-Profile
• Manufacturing length up to 8000 mm

Ordering example: UP 070.0780-2800
U-Profile with inside measurement 74,1 mm, length 2800 mm

Dimensions in mm.

Product Information

Material: 1.4301
Designation Weight
5,3 kg/m
10,7 kg/m
21 kg/m

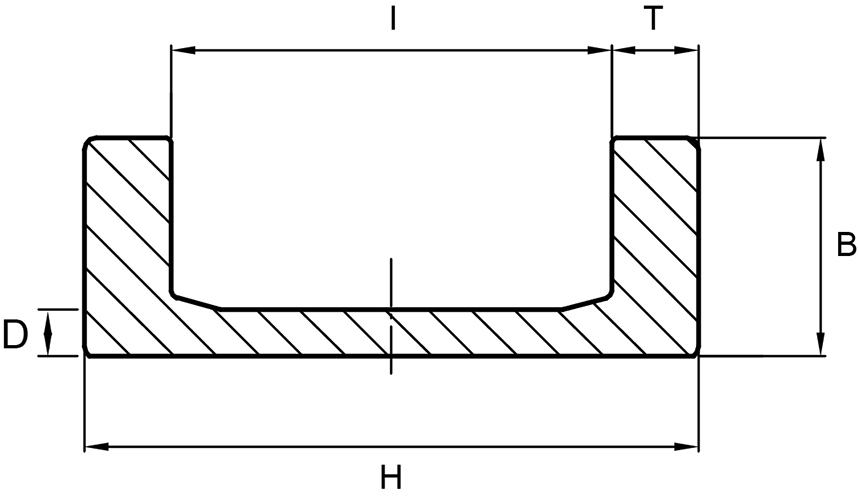

Technical Drawing
Designation B D H I T
31 6 65 ±0,4 53 ±0,4 6
38 ±0,8 8 ±0,5 90,5 ±0,8 71 ±0,8 9,75
41 ±0,8 10,8 ±0,8 121,3 ±0,8 78,7 ±0,7 21,30
