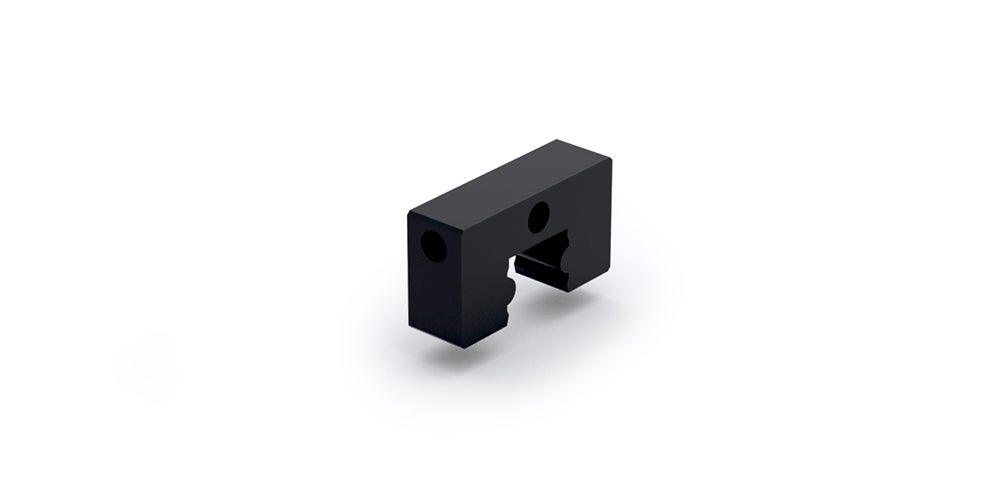

Seal Unit

All runner blocks are delivered with greased seal units.
The basic material is POM.

Instructions for the replacement:
Assembly with mounted carriage is not possible.
Pull exchanged seal unit up.
Insert the new seal unit.
Push the runner block back on the guide rail.
Align the seal unit vertically to the guide rail.

Dimensions in mm.

Product Information

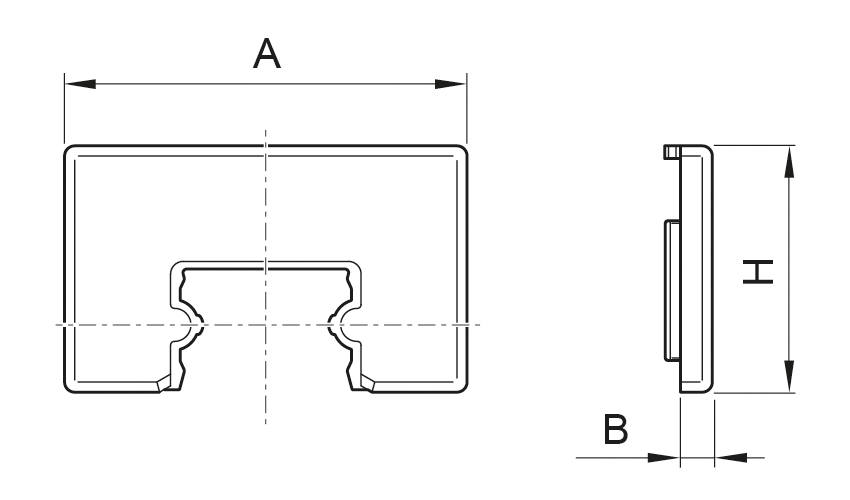

Technical Drawing
Designation A B H
31,70 2,50 19,40
43,20 2,80 24,30
47,20 3 26,30
