Swivel Castors, Bolt Hole
Castor with swivel head and bolt hole

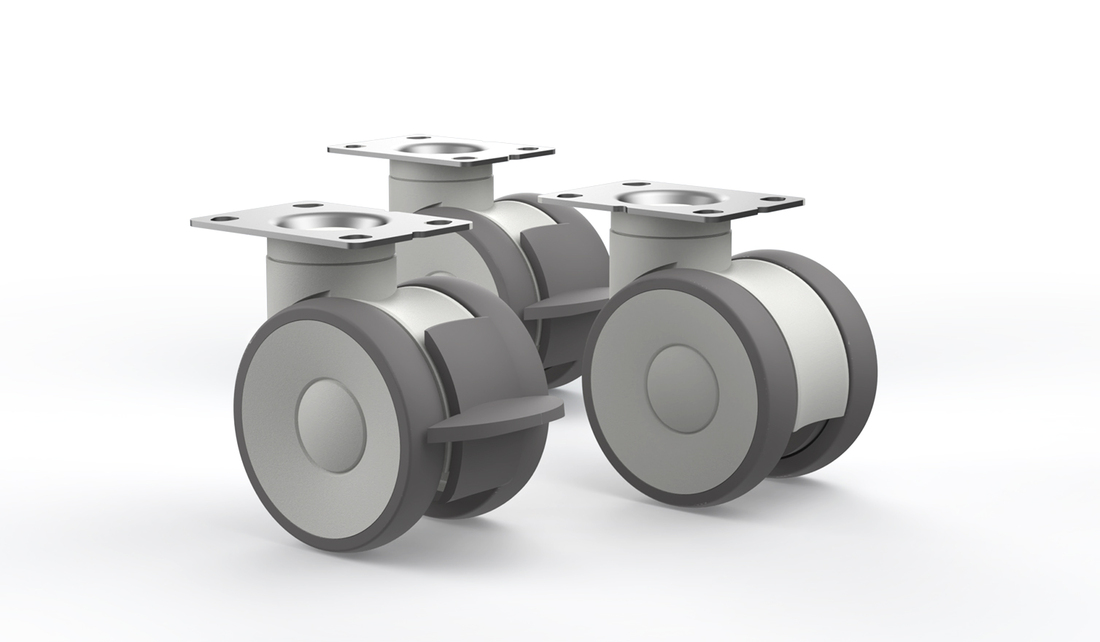

Swivel Castors, Plate Fitting
Housing made of Polyamide, precision ball bearing in swivel head, plate fitting.
Wheel centre made of Polyamide.
Tread made of Polyurethane, precision ball bearing.
Standard: EN 12530
Hardness of tread: Shore A 92
Read more
Wheel centre made of Polyamide.
Tread made of Polyurethane, precision ball bearing.
Standard: EN 12530
Hardness of tread: Shore A 92
Product Information
Material: Polyamide
System: 40 - Slot 8; 30 - Slot 6; 20 - Slot 5
Temperature range (°C): -10° to +40°
Type: Castors
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Description | Wheel Diameter (mm) | Colour | Weight (g) | Swivel Interference (mm) | Load capacity (kg) | Static Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Swivel castor with plate fitting | 100 | RAL9002 | 804 | 180 | 100 | 200 | ||
|
|
|
2 | Swivel castor with directional lock, plate fitting | 100 | RAL9002 | 865 | 216 | 100 | 200 | ||
|
|
|
2 | Swivel castor with total lock, plate fitting | 100 | RAL9002 | 871 | 216 | 100 | 200 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
Swivel Castors, Bolt Hole with Lock
Castor with swivel head, bolt hole and lock
