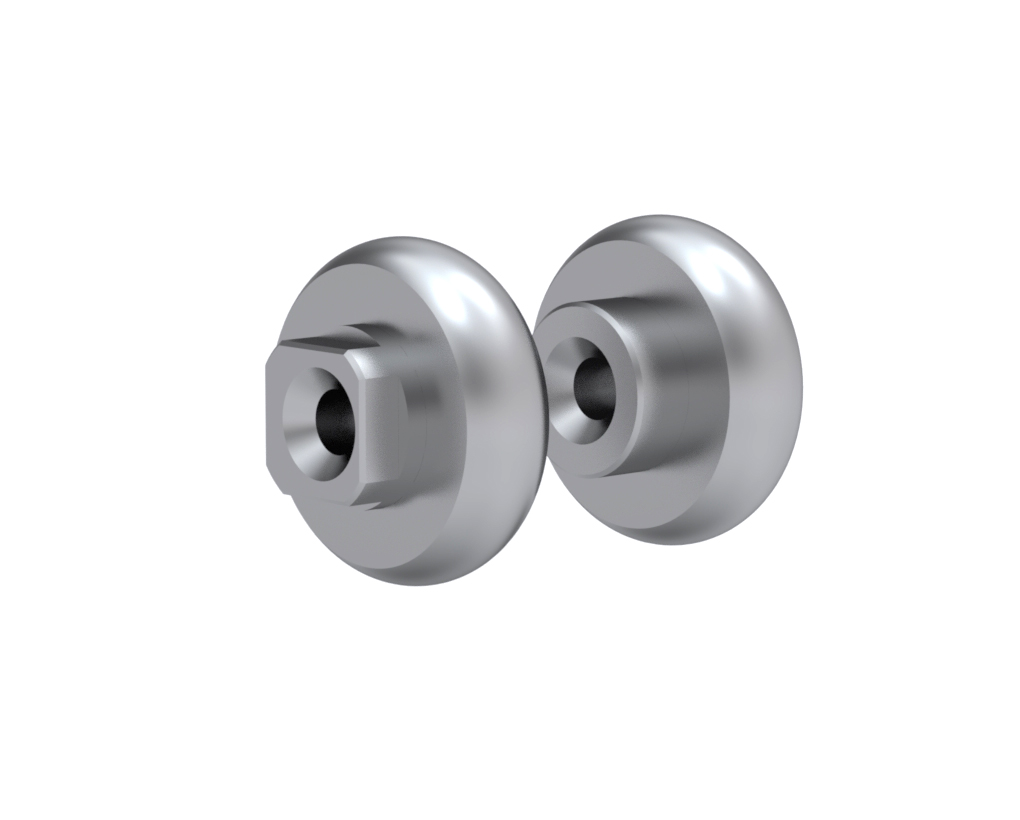

Rollers for Plate Version

CONCENTRIC ROLLER
RSBLN: standard bearing steel
RXBLN: stainless bearing steel

ECCENTRIC ROLLER
RSBLA: standard bearing steel
RXBLA: Stainless bearing steel

Standard slider is with 3 rollers. The rollers can also be mounted directly into your application or we can make special sliders according to your needs. Please contact Rollco for more information.

A, B and D = with rail
Designation Weight
0,006 kg
0,006 kg
0,006 kg
0,006 kg
0,02 kg
0,02 kg
0,02 kg
0,02 kg
0,068 kg
0,068 kg
0,068 kg
0,068 kg

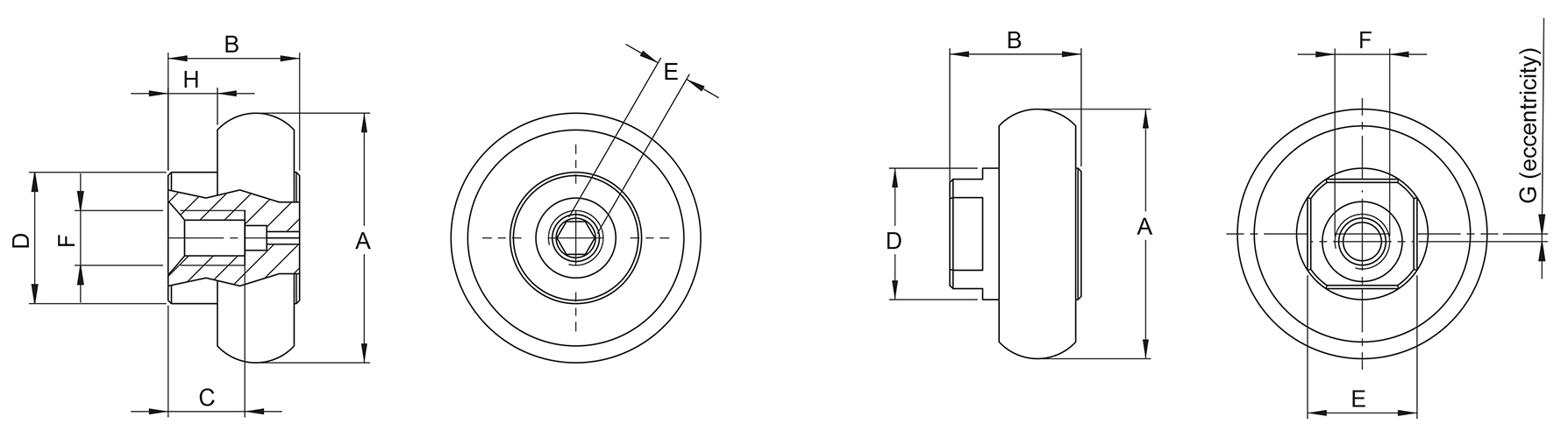

Technical Drawing
Designation A B C D E F G H
14 8,20 6 8 2 M4 - 4
14 8,20 6 8 2 M4 - 4
14 8,20 6 8 6 M4 0,50 4
14 8,20 6 8 6 M4 0,50 4
22,80 12 7 12 3 M5 - 4,50
22,80 12 7 12 3 M5 - 4,50
22,80 12 7 12 10 M5 0,70 4,50
22,80 12 7 12 10 M5 0,70 4,50
35,60 17,30 12 16 3 M6 - 6
35,60 17,30 12 16 3 M6 - 6
35,60 17,30 12 16 13 M6 0,80 6
35,60 17,30 12 16 13 M6 0,80 6
