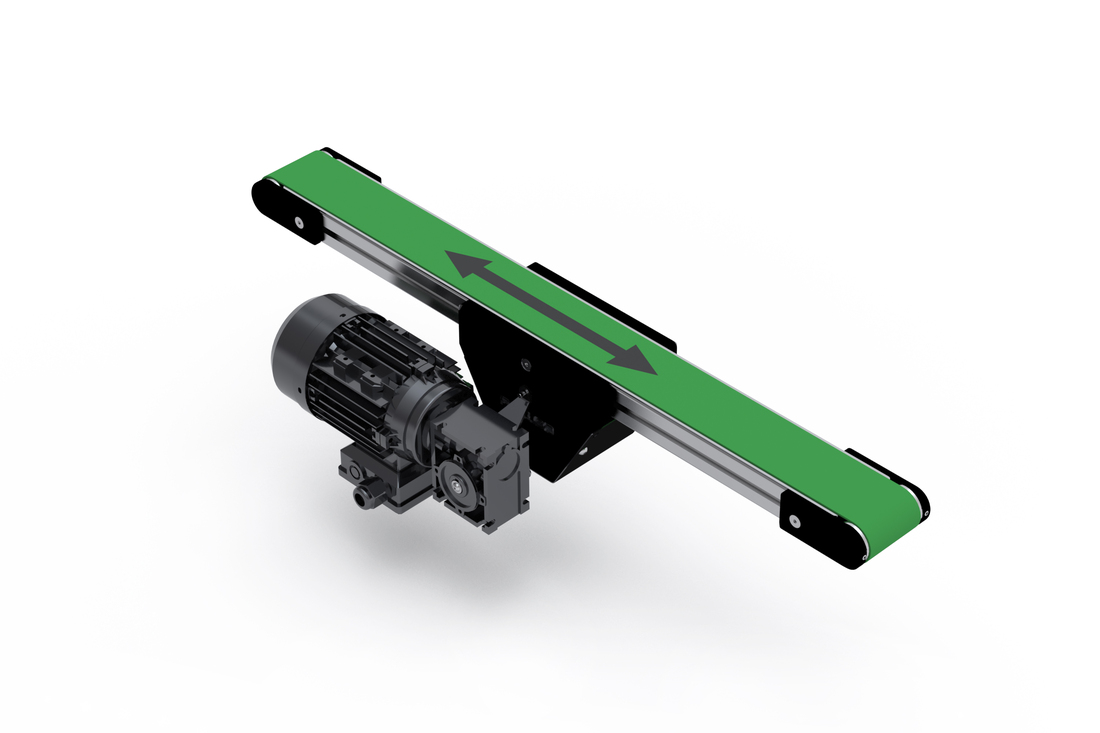

BF40M

LOCALLY MANUFACTURED
This is a selection of BF40M standard conveyor sizes. Given speeds are based on using an MS63B-4 with the appropriate SB030 gear.

Recommended max. load 75 kg. The recommended max load is evenly spread over the entire conveyor and is in relation to a nominal width and length.

Dimensions in mm.

For other dimensions please contact Rollco.
Read more

Product Information

Length (mm): Up to 4000
Gear ratio (I): 5 / 7.5 / 10 / 15 / 20 / 25 / 30 / 40 / 50
Speed (m/min): 37 (37.3) / 25 (24.9) / 19 (18.7) / 12 (12.4) / 9 (9.4) / 8 (7.5) / 6 (6.2) / 5 (4.7) / 4 (3.7)
Drive side: Right/left
Motor Position: Horizontal/vertical — 1-4
Designation Select all Compare Get quote Lead Time * Width (mm)
Get quote 2 40
Get quote 2 80
Get quote 2 120
Get quote 2 160
Get quote 2 200
Get quote 2 250
Get quote 2 300
Get quote 2 350
Get quote 2 400

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
