WB
Hardened precision steel shaft predrilled, Ø 12-40 mm.
FTSN

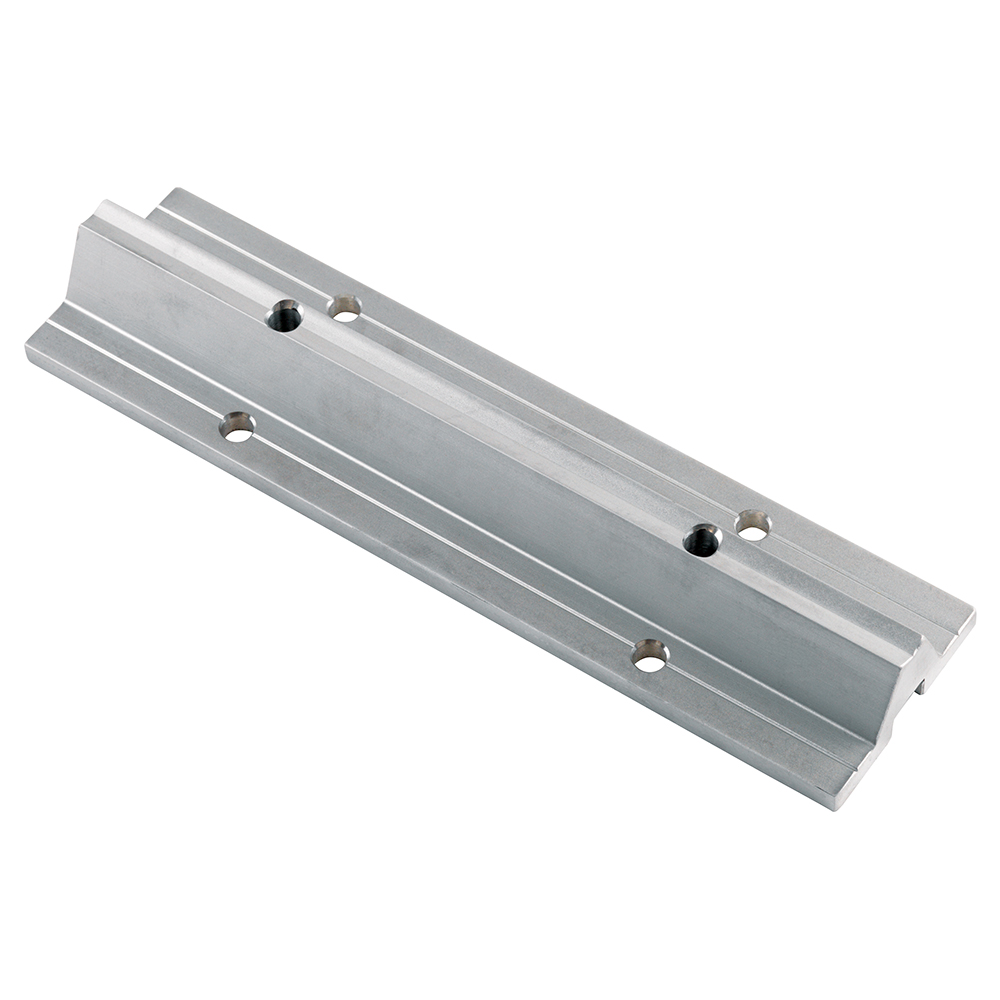

Aluminium with mounting holes.
Standard section length L = 3700 mm. Lengths other than standard (Lmax = 3700 mm) are also available on request.
Support rails can be supplied upon request, with or without mounting holes. No anodizing in holes.
Dimensions in mm.
Note: The shaft is not included, please order separately.
Read more
Standard section length L = 3700 mm. Lengths other than standard (Lmax = 3700 mm) are also available on request.
Support rails can be supplied upon request, with or without mounting holes. No anodizing in holes.
Dimensions in mm.
Note: The shaft is not included, please order separately.
Product Information
Material: Aluminium
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue

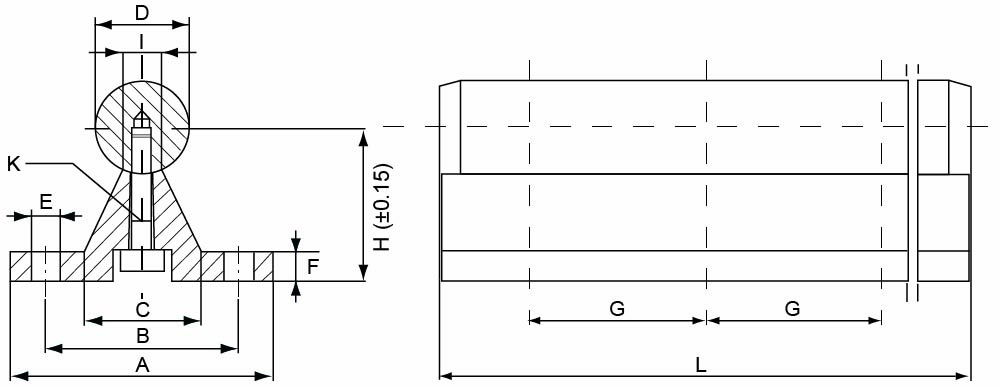

| Designation | Select all | Compare | Get quote | Lead Time * | Remark | G | A | B | H | D | K | F | C | E | I |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Standard section length L = 4250 mm | 75 | 40 | 29 | 22 | 12 | M4x20 | 5 | 15 | 4.5 | 5.4 | ||
|
|
|
1 | Standard section length L = 4250 mm | 100 | 45 | 33 | 26 | 16 | M5x20 | 5 | 19 | 5.5 | 7 | ||
|
|
|
2 | Standard section length L = 4250 mm | 100 | 52 | 37 | 32 | 20 | M6x25 | 6 | 23 | 6.6 | 8.1 | ||
|
|
|
1 | Standard section length L = 4250 mm | 120 | 57 | 42 | 36 | 25 | M8x30 | 6 | 26 | 6.6 | 10.3 | ||
|
|
|
1 | Standard section length L = 4250 mm | 150 | 69 | 51 | 42 | 30 | M10x35 | 7 | 29 | 9 | 11 | ||
|
|
|
1 | Standard section length L = 4250 mm | 200 | 73 | 55 | 50 | 40 | M10x40 | 8 | 36 | 9 | 15 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
FTSU
Aluminium shaft support low type, for drilled shafts Ø 16-40 mm.
