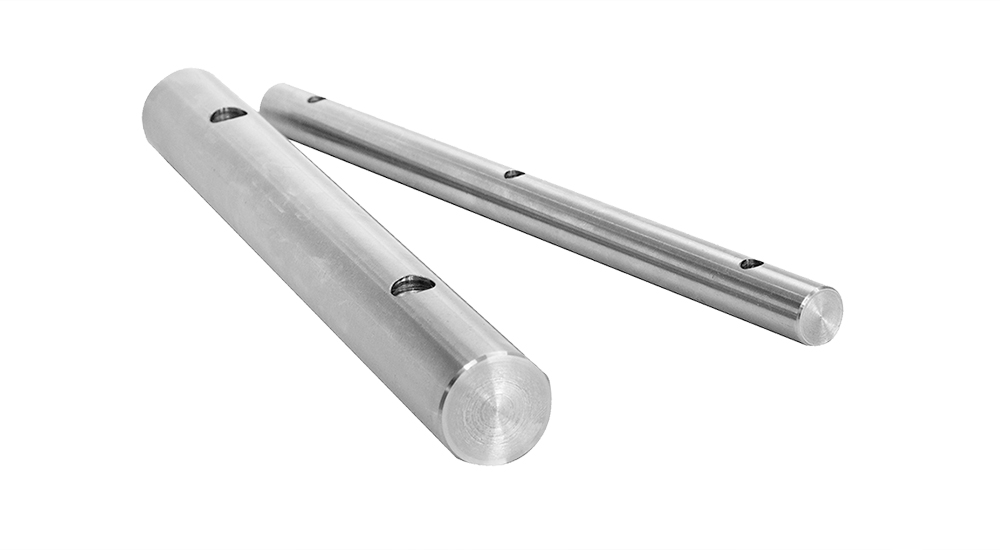

Hardened Precision Shafts WB, Predrilled

Thread depth = A
Thread dimension = C and S
Other tolerances according to standard shaft W.

Other types available on request.
Contact us for CAD-files.

Product Information

Designation Diameter
12,00
16,00
20,00
25,00
30,00
40,00

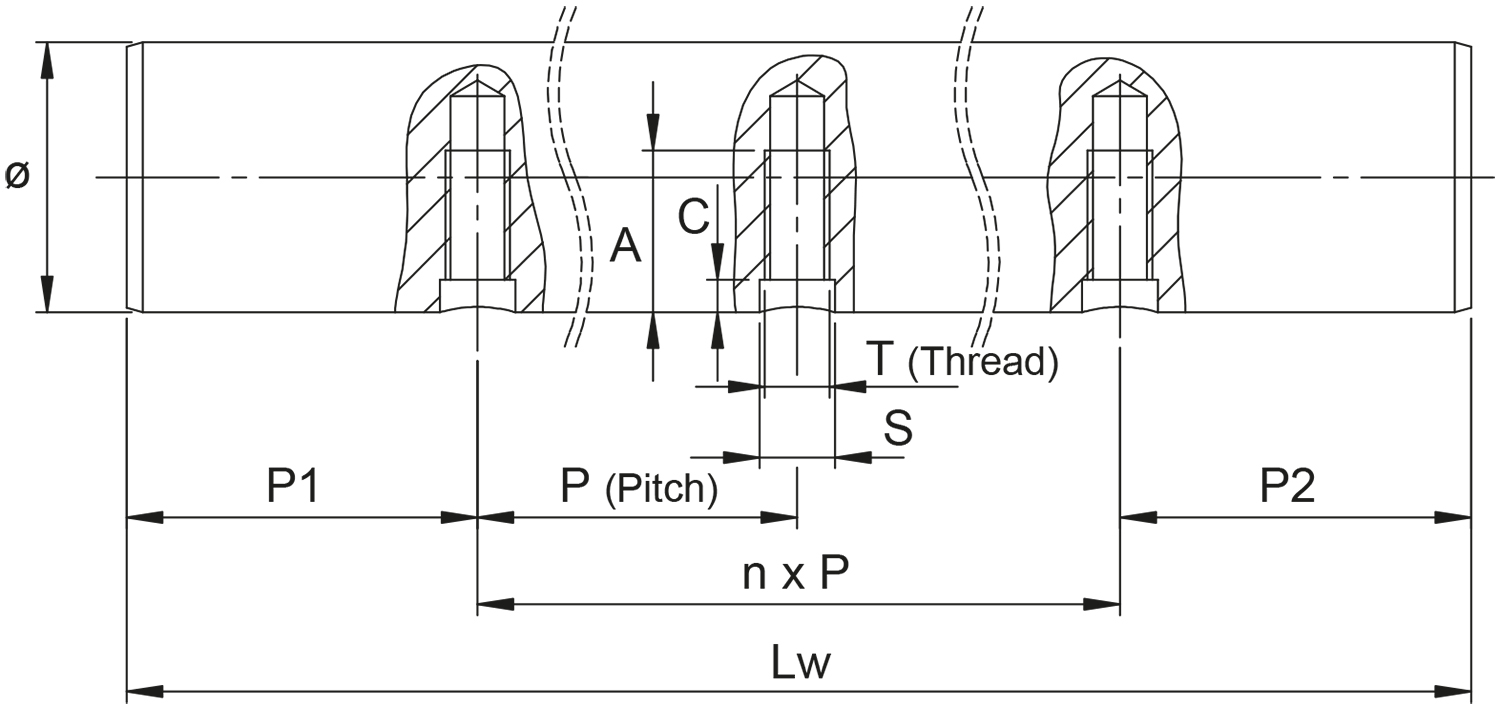

Technical Drawing
Designation A C G S T
7 2 75 5 M4
9 2,50 100 6 M5
11 3 100 7 M6
15 3 120 9 M8
17 3,50 150 11 M10
19 4 200 11 M10
