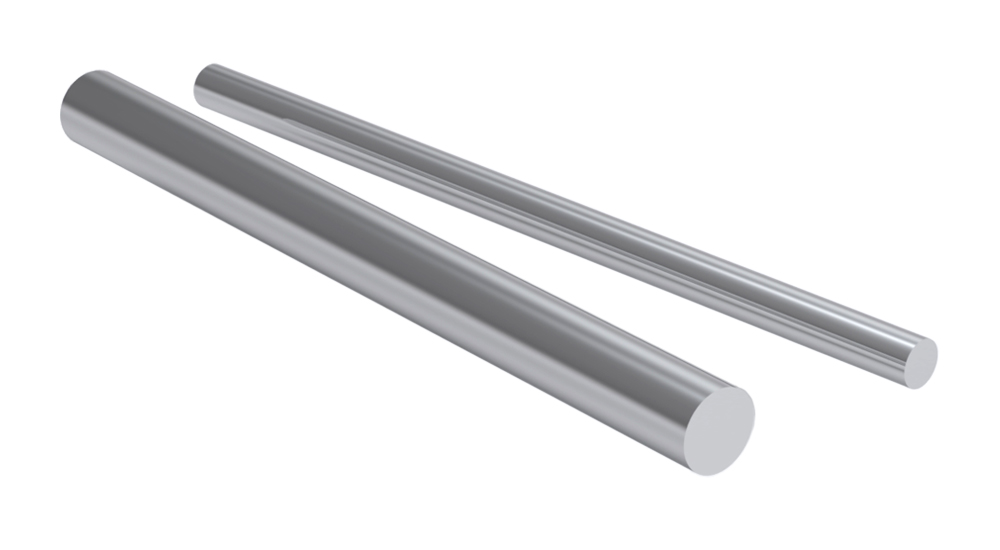

Hardened Precision Shafts WRA, Stainless Steel X90

Surface hardness: 54 HRC min.
Reduction of load rating for linear ball bearing because of less hardness.
Hardening depth according to ISO 13012.
Standard tolerance ISO h6

Other types available on request.

Product Information

Material: X90CrMoV18 / 1.4112.
Designation Weight Diameter Hardening Depth Standard Tolerance Roundness Parallelism Straightness
0,39 kg/m 8,00 0,40 0/-9 4,00 6,00 0,20
0,62 kg/m 10,00 0,40 0/-9 4,00 6,00 0,10
0,89 kg/m 12,00 0,60 0/-11 5,00 8,00 0,10
1,21 kg/m 14,00 0,60 0/-11 5,00 8,00 0,10
1,56 kg/m 16,00 0,60 0/-11 5,00 8,00 0,10
2,47 kg/m 20,00 0,90 0/-13 6,00 9,00 0,10
3,85 kg/m 25,00 0,90 0/-13 6,00 9,00 0,10
5,55 kg/m 30,00 0,90 0/-13 6,00 9,00 0,10
9,86 kg/m 40,00 1,50 0/-16 7,00 11,00 0,10
15,41 kg/m 50,00 2,20 0/-16 7,00 11,00 0,10
