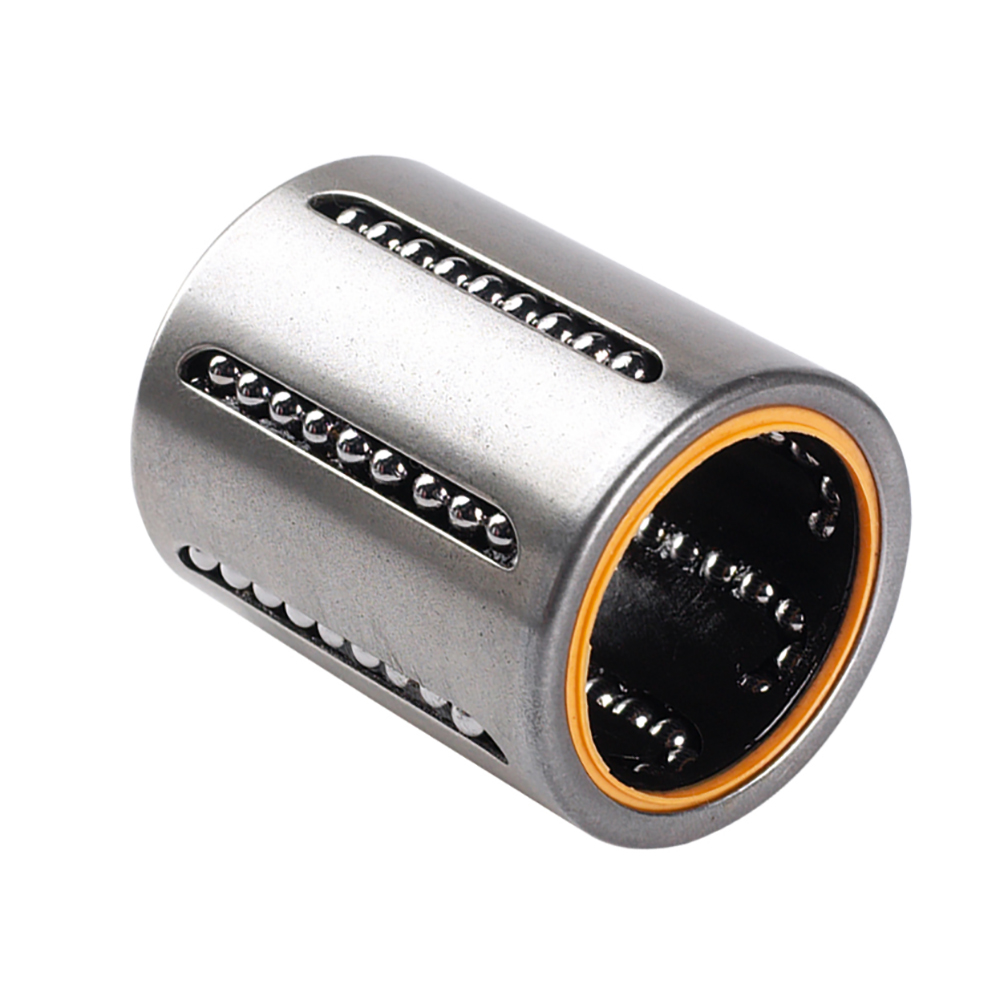

Compact Type KH

Dimensions in mm.
Other types available on request.

Product Information

Designation External Seals Dynamic Load Capacity Static Load Capacity
- 400 N 239 N
- 435 N 280 N
- 500 N 370 N
G 12 x 19 x 3 620 N 510 N
G 14 x 21 x 3 620 N 520 N
G 16 x 24 x 3 800 N 620 N
G 20 x 28 x 4 950 N 790 N
G 25 x 35 x 4 1990 N 1670 N
G 30 x 40 x 4 2800 N 2700 N
G 40 x 52 x 5 4400 N 4450 N
- 5500 N 6300 N

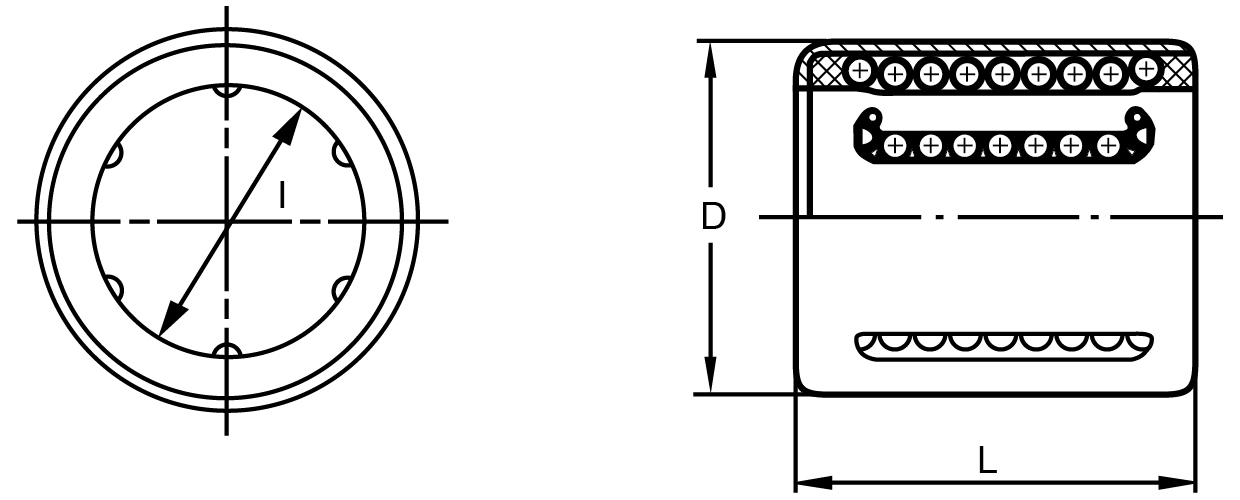

Technical Drawing
Designation D I L
12 6 22
15 8 24
17 10 26
19 12 28
21 14 28
24 16 30
28 20 30
35 25 40
40 30 50
52 40 60
62 50 70
