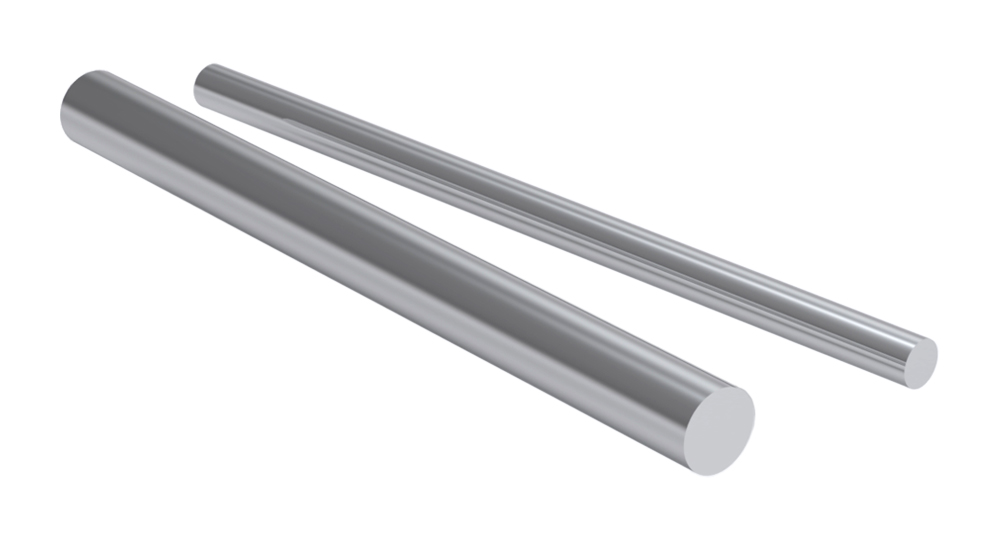

Hardened Precision Shafts WV, Chrome Plated

Surface hardness: 59 HRC min.
Chrome layer thickness: ca. 10 µm.
Layer hardness: ≥ 800 HV.
Hardening depth according to ISO 13012.
Standard tolerance ISO h7

Other types available on request.

Product Information

Material: E. g. quenched and tempered steel Cf53 / 1.1213
Designation Weight Diameter Hardening Depth Standard Tolerance Roundness Parallelism Straightness
0,62 kg/m 10,00 0,40 0/-15 6,00 9,00 0,10
0,89 kg/m 12,00 0,60 0/-18 8,00 11,00 0,10
1,56 kg/m 16,00 0,60 0/-18 8,00 11,00 0,10
2,47 kg/m 20,00 0,90 0/-21 9,00 13,00 0,10
3,85 kg/m 25,00 0,90 0/-21 9,00 13,00 0,10
5,55 kg/m 30,00 0,90 0/-21 9,00 13,00 0,10
9,86 kg/m 40,00 1,50 0/-25 11,00 16,00 0,10
