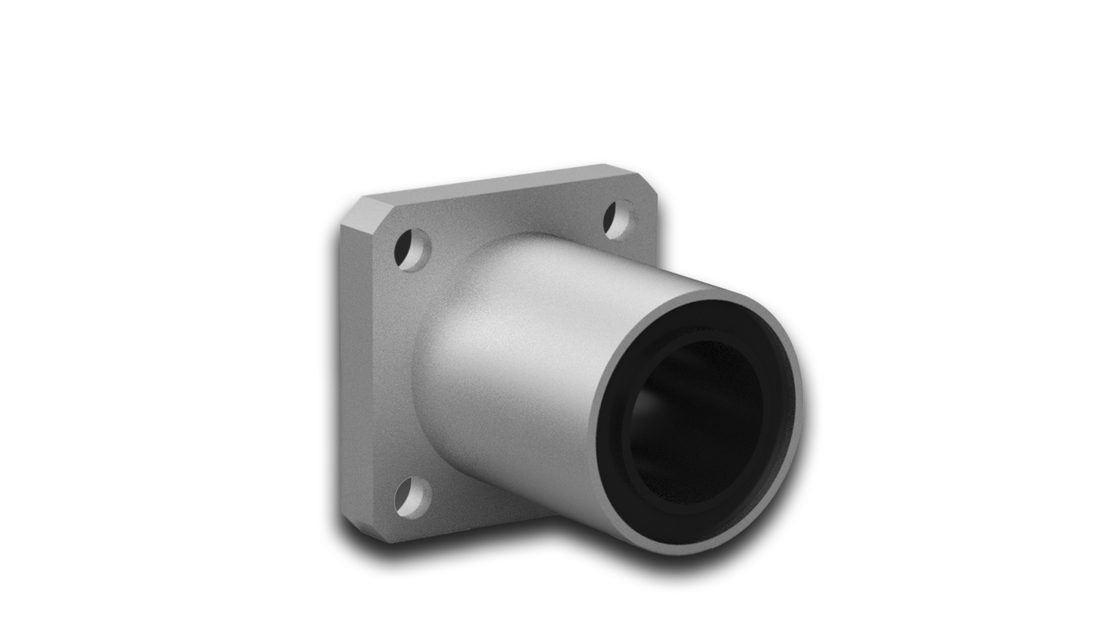

Flange Type LMEK...UU

Dimensions in mm.
Other types available on request.

Product Information

Designation Number Of Ball Rows Dynamic Load Capacity Static Load Capacity
4,00 270 N 410 N
4,00 520 N 790 N
5,00 590 N 910 N
5,00 880 N 1400 N
6,00 1000 N 1600 N
6,00 1600 N 2800 N
6,00 2200 N 4100 N
6,00 3900 N 8100 N
6,00 4800 N 10000 N

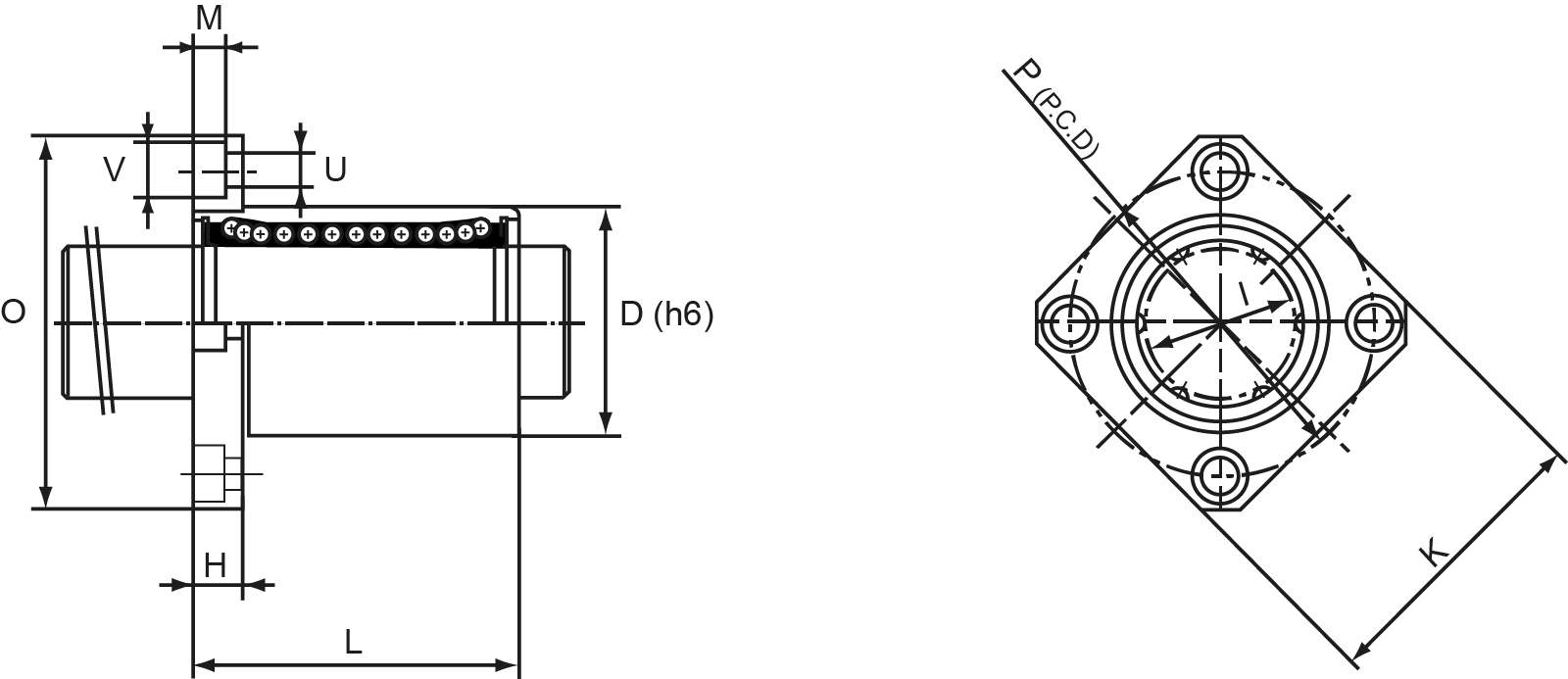

Technical Drawing
Designation D H I K L M O P U V
16 5 8 25 25 3,10 32 24 3,50 6
22 6 12 32 32 4,40 42 32 4,50 7,50
26 6 16 35 36 4,40 46 36 4,50 7,50
32 8 20 42 45 5,40 54 43 5,50 9
40 8 25 50 58 5,40 62 51 5,50 9
47 10 30 60 68 6,50 76 62 6,60 11
62 13 40 75 80 8 98 80 9 14
75 13 50 88 100 8,10 112 94 9 14
90 18 60 106 125 10,80 134 112 11 17,50
