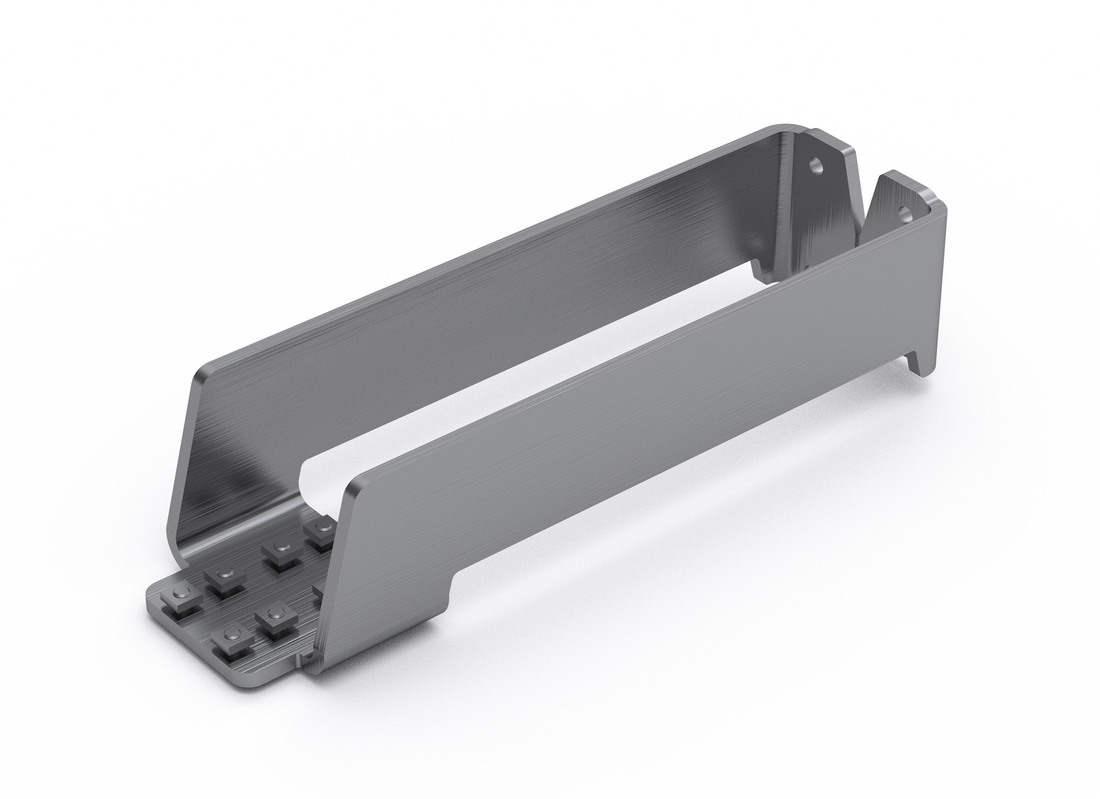

Back mount ABM

Dimensions in mm.

Mounting screws and nuts are included.

□ = Square cross section
Lataa PDF code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

Material: Stainless steel
Designation Select all Lead Time * Compatible with Motor compatibility (type/size □ (mm)) Description Material Fmax (N) Mass (kg) CAD Compare
/storage/E8DD00BBF637A36278842366B699DD71E1A181C29E64657EDA8AC3783BAA2E03/e629cc4e7a444209956407353abf75db/STP/media/53316973a61546ff9a3fe880c7c2bbbf/CAD_ABM25-T1-108239_BackMountABM_Rollco.STP 2 MCE 25 Stepper / 28 ABM 25 - T1 Stainless steel F MCE 0.14
Get quote
/storage/BD9A11BF553877441835B4CD6488DC70ADF6D60C75167EFF7D7691E90FFBEBE9/209c7cba74194ad6a17247c838c2a42a/STP/media/b1d43c4da6be4543bc6840da4a092501/CAD_ABM32-T1-108237_BackMountABM_Rollco.STP 2 MCE 32 Stepper / 28 ABM 32 - T1 Stainless steel F MCE 0.24
Get quote
/storage/E6238D68D48763BC3302B59EE8D77B41B4BCC861C1355E255FBCEF5B945ABD40/ca546c5b4b094afb8d35ad9105728664/STP/media/be5a1623914848899e02ef2b5f8f6c31/CAD_ABM32-T2-108238_BackMountABM_Rollco.STP 2 MCE 32 Stepper / 42 ABM 32 - T2 Stainless steel F MCE 0.29
Get quote
/storage/5DE0C6932B1012093C3EE6674372A26B8E8D428E0E21102352773CE31D7A1D5C/e98dc39fcd214a5eb3ffc25b5ecfa116/STP/media/3407c21ccf204316a361e19dd06d5522/CAD_ABM45-T1-108235_BackMountABM_Rollco.STP 2 MCE 45 Stepper / 42 ABM 45 - T1 Stainless steel F MCE 0.62
Get quote
/storage/AB73F12DAFA4DB1EEC503AA0261A0FA0174A040BFF15D472E9D4BAF2BA144AFC/b37a85d54a034b7b947776b85633c1b5/STP/media/3c71b36e506440d5a3e4cfa3cdfc550c/CAD_ABM45-T2-105320_BackMountABM_Rollco.STP 2 MCE 45 Stepper / 56 ABM 45 - T2 Stainless steel F MCE 0.72
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all M L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 T (Nm) CAD Compare
/storage/E8DD00BBF637A36278842366B699DD71E1A181C29E64657EDA8AC3783BAA2E03/e629cc4e7a444209956407353abf75db/STP/media/53316973a61546ff9a3fe880c7c2bbbf/CAD_ABM25-T1-108239_BackMountABM_Rollco.STP M4 165 30.5 27.5 35 18 13.5 28 12 29.8 35.5 27 2.5 0.3
Get quote
/storage/BD9A11BF553877441835B4CD6488DC70ADF6D60C75167EFF7D7691E90FFBEBE9/209c7cba74194ad6a17247c838c2a42a/STP/media/b1d43c4da6be4543bc6840da4a092501/CAD_ABM32-T1-108237_BackMountABM_Rollco.STP M5 170 38.5 35 40 22 13.5 28 12 37.7 44.5 34 3 1.2
Get quote
/storage/E6238D68D48763BC3302B59EE8D77B41B4BCC861C1355E255FBCEF5B945ABD40/ca546c5b4b094afb8d35ad9105728664/STP/media/be5a1623914848899e02ef2b5f8f6c31/CAD_ABM32-T2-108238_BackMountABM_Rollco.STP M5 200 46 35 40 22 13.5 28 12 37.7 52 34 3 1.2
Get quote
/storage/5DE0C6932B1012093C3EE6674372A26B8E8D428E0E21102352773CE31D7A1D5C/e98dc39fcd214a5eb3ffc25b5ecfa116/STP/media/3407c21ccf204316a361e19dd06d5522/CAD_ABM45-T1-108235_BackMountABM_Rollco.STP M6 210 53.5 49 50 32 20 40 16 52.7 61.5 48 4 2.2
Get quote
/storage/AB73F12DAFA4DB1EEC503AA0261A0FA0174A040BFF15D472E9D4BAF2BA144AFC/b37a85d54a034b7b947776b85633c1b5/STP/media/3c71b36e506440d5a3e4cfa3cdfc550c/CAD_ABM45-T2-105320_BackMountABM_Rollco.STP M6 245 64.9 49 50 32 20 40 16 52.7 72.9 48 4 2.2
Get quote
