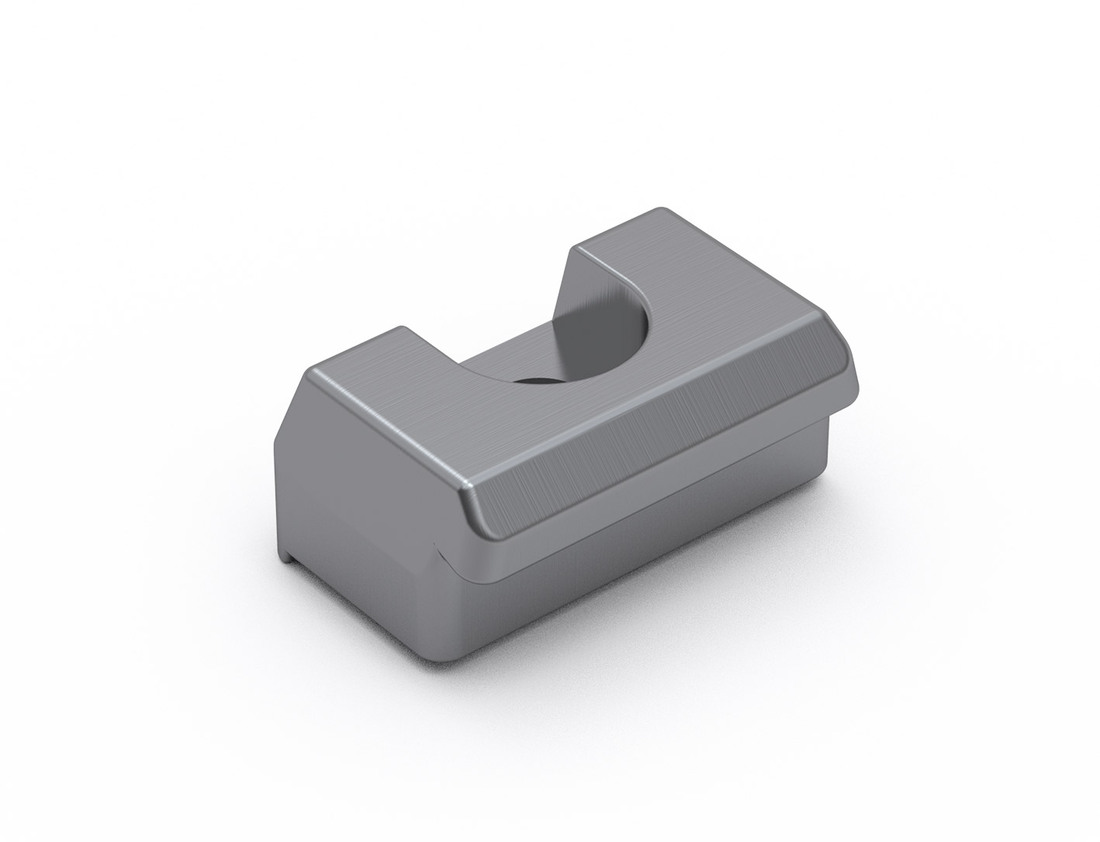

Clamping fixture
Dimensions in mm.
Mini electric cylinder and slider can be mounted by using the clamping fixtures which are placed in the slot on the side of the profile. Clamping fixtures can also be mounted to the slide of the mini electric sliders MSCE (e.i. for multi-axis systems). See Mounting Examples in Technical Information document for further information.
The scale of the drawings may not be equal.
Mini electric cylinder and slider can be mounted by using the clamping fixtures which are placed in the slot on the side of the profile. Clamping fixtures can also be mounted to the slide of the mini electric sliders MSCE (e.i. for multi-axis systems). See Mounting Examples in Technical Information document for further information.
The scale of the drawings may not be equal.
Lataa PDF (kaikki tiedot)
code.product.loadingpdf
+
Lisää PDF-luetteloon
Product Information
Material: Powder coated zinc alloy
| Designation | Select all | Lead Time * | Compatible with | Screw Type | Type | Mass (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/82F5962AD94AF4D9F345C67C6EAA6C0E84998BF1C076F1AC97ACEC892AE29679/1396756923cb4ac6aaebde2db6aafbbe/STP/media/9093cb0796b1494c93b8efc033e3f730/CAD_MG25-108216_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 25 | M3 | T1 | 6 |
|
||
|
|
/storage/269651D8623D90FF751E738C33948F0EF6E658A00C5E51DEA83948A2F51A9307/059ba45e98914d43bbb1ee2f7cba087b/STP/media/0b715aa492a049719c6b43c55c10e02c/CAD_MG25-108218_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 25 | M3 | T2 | 12 |
|
||
|
|
/storage/202E0869258522752CE772DAA7612128A663AF981BB5D6FE24CF3609966DE1AC/39678332184941f3a0d3d58fe39531a7/STP/media/8fb3bedbf6f9436db93d1dd077081413/CAD_MG25-108217_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 25 | M4 | T1 | 5 |
|
||
|
|
/storage/7FC7711A4C37C35AB742C4504613927D24F75EB929EF68E8ECD03BF8A11F5A33/b7f9e5b8ba8f47c2b9e347eed66a06c8/STP/media/50da1dbb12664f3fb25ea77b096a6feb/CAD_MG25-108219_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 25 | M4 | T2 | 16 |
|
||
|
|
/storage/6C0C0FB4FB545BA363754EDD2FEFBADDB1D376B2B61BE477B4CEE281292AB939/c8bd59b1c7f149378f67f75d4913d771/STP/media/672bc74fccd44ff287ac09039f271516/CAD_MG32-108216_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 32 | M3 | T1 | 6 |
|
||
|
|
/storage/EBF5866A06DCBCAC167FA4C41BE96AAF4F27CB6DAE5128BB63722CA13FDC7D06/beaa1ff0f3614f76bd8236fffa31133e/STP/media/33cccf3b564042529c427459d7dc7a93/CAD_MG32-108218_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 32 | M3 | T2 | 12 |
|
||
|
|
/storage/D3A4D8C539D0559BE6478D9CFF0CA3AD9A307253B6BC2D8BE7312A02DB3067E3/98072ea7ec51429294c8628bf2f455b2/STP/media/37ebcd1f807c4bb78620c668dffad85c/CAD_MG32-108217_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 32 | M4 | T1 | 5 |
|
||
|
|
/storage/00E05A5105C6FAB4A54F47BDC9A1374068B0F20B97F6B4946FE1DFBA04AC1AD4/8eb317a5232b46449af46eda343d7a25/STP/media/378ace70a589424992e57bf0d4b869a7/CAD_MG32-108219_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 32 | M4 | T2 | 16 |
|
||
|
|
/storage/C38232C00976D154F8D62B31F5D3318CA423B784AB2CABB1216B4404E61638A6/c74d728674cd472c81ce7e9c589a0f74/STP/media/c06b1ab1d09f4d94bfe693084f6d48c1/CAD_MG45-108216_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 45 | M3 | T1 | 6 |
|
||
|
|
/storage/FD79B8F8AD55CF3979AB9B3A4DB44DA121AC8F9F1359E5423CA9E970FFAF7D65/142ae52489b74547af1b2fb765b5df2c/STP/media/20bedca600434d38a44ac1c1208de2e2/CAD_MG45-108218_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 45 | M3 | T2 | 12 |
|
||
|
|
/storage/F83FF1848D84BAC79C36F7D75B5D690017FDC358EA1FB64706B630370B090A84/dfb5afa125bc4859bb87665d7d747307/STP/media/fc1f14295d8940aa83f1bacf2ccf33e8/CAD_MG45-108217_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 45 | M4 | T1 | 5 |
|
||
|
|
/storage/B0DAA7B1022228DD764307BCB249FD89B4DF7D9E79340E578315FBD1541CCE3E/b36e503e171b4e928caf665688e0ed11/STP/media/33c6ea3237894241b9bde7506bbaad4a/CAD_MG45-108219_ClampingFixture_Rollco.STP | 2 | MCE/MSCE 45 | M4 | T2 | 16 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | L | A | B | C | D | E | F | G | H | J | K | R | Countersink for | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/82F5962AD94AF4D9F345C67C6EAA6C0E84998BF1C076F1AC97ACEC892AE29679/1396756923cb4ac6aaebde2db6aafbbe/STP/media/9093cb0796b1494c93b8efc033e3f730/CAD_MG25-108216_ClampingFixture_Rollco.STP | 16 | 35 (±0,1) | 42 | – | 8 | 3.6 | 10 | 3.5 | Ø 3.4 | 8.5 | 7 | 3.25 | DIN 912 |
|
||
|
|
/storage/269651D8623D90FF751E738C33948F0EF6E658A00C5E51DEA83948A2F51A9307/059ba45e98914d43bbb1ee2f7cba087b/STP/media/0b715aa492a049719c6b43c55c10e02c/CAD_MG25-108218_ClampingFixture_Rollco.STP | 32 | 35 (±0,1) | 42 | 22.5 | 4.75 | 3.6 | 10 | 3.5 | Ø 3.4 | 8.5 | 7 | 3.25 | DIN 912 |
|
||
|
|
/storage/202E0869258522752CE772DAA7612128A663AF981BB5D6FE24CF3609966DE1AC/39678332184941f3a0d3d58fe39531a7/STP/media/8fb3bedbf6f9436db93d1dd077081413/CAD_MG25-108217_ClampingFixture_Rollco.STP | 16 | 35 (±0,1) | 42 | – | 8 | 2.5 | 10 | 3.5 | Ø 4.5 | 8.5 | 7 | 4 | DIN 912 |
|
||
|
|
/storage/7FC7711A4C37C35AB742C4504613927D24F75EB929EF68E8ECD03BF8A11F5A33/b7f9e5b8ba8f47c2b9e347eed66a06c8/STP/media/50da1dbb12664f3fb25ea77b096a6feb/CAD_MG25-108219_ClampingFixture_Rollco.STP | 45 | 35 (±0,1) | 42 | 32 | 6.5 | 2.5 | 10 | 3.5 | Ø 4.5 | 8.5 | 7 | 4 | DIN 912 |
|
||
|
|
/storage/6C0C0FB4FB545BA363754EDD2FEFBADDB1D376B2B61BE477B4CEE281292AB939/c8bd59b1c7f149378f67f75d4913d771/STP/media/672bc74fccd44ff287ac09039f271516/CAD_MG32-108216_ClampingFixture_Rollco.STP | 16 | 42 (±0,1) | 49 | – | 8 | 3.6 | 10 | 3.5 | Ø 3.4 | 8.5 | 7 | 3.25 | DIN 912 |
|
||
|
|
/storage/EBF5866A06DCBCAC167FA4C41BE96AAF4F27CB6DAE5128BB63722CA13FDC7D06/beaa1ff0f3614f76bd8236fffa31133e/STP/media/33cccf3b564042529c427459d7dc7a93/CAD_MG32-108218_ClampingFixture_Rollco.STP | 32 | 42 (±0,1) | 49 | 22.5 | 4.75 | 3.6 | 10 | 3.5 | Ø 3.4 | 8.5 | 7 | 3.25 | DIN 912 |
|
||
|
|
/storage/D3A4D8C539D0559BE6478D9CFF0CA3AD9A307253B6BC2D8BE7312A02DB3067E3/98072ea7ec51429294c8628bf2f455b2/STP/media/37ebcd1f807c4bb78620c668dffad85c/CAD_MG32-108217_ClampingFixture_Rollco.STP | 16 | 42 (±0,1) | 49 | – | 8 | 2.5 | 10 | 3.5 | Ø 4.5 | 8.5 | 7 | 4 | DIN 912 |
|
||
|
|
/storage/00E05A5105C6FAB4A54F47BDC9A1374068B0F20B97F6B4946FE1DFBA04AC1AD4/8eb317a5232b46449af46eda343d7a25/STP/media/378ace70a589424992e57bf0d4b869a7/CAD_MG32-108219_ClampingFixture_Rollco.STP | 45 | 42 (±0,1) | 49 | 32 | 6.5 | 2.5 | 10 | 3.5 | Ø 4.5 | 8.5 | 7 | 4 | DIN 912 |
|
||
|
|
/storage/C38232C00976D154F8D62B31F5D3318CA423B784AB2CABB1216B4404E61638A6/c74d728674cd472c81ce7e9c589a0f74/STP/media/c06b1ab1d09f4d94bfe693084f6d48c1/CAD_MG45-108216_ClampingFixture_Rollco.STP | 16 | 55 (±0,1) | 62 | – | 8 | 3.6 | 10 | 3.5 | Ø 3.4 | 8.5 | 7 | 3.25 | DIN 912 |
|
||
|
|
/storage/FD79B8F8AD55CF3979AB9B3A4DB44DA121AC8F9F1359E5423CA9E970FFAF7D65/142ae52489b74547af1b2fb765b5df2c/STP/media/20bedca600434d38a44ac1c1208de2e2/CAD_MG45-108218_ClampingFixture_Rollco.STP | 32 | 55 (±0,1) | 62 | 22.5 | 4.75 | 3.6 | 10 | 3.5 | Ø 3.4 | 8.5 | 7 | 3.25 | DIN 912 |
|
||
|
|
/storage/F83FF1848D84BAC79C36F7D75B5D690017FDC358EA1FB64706B630370B090A84/dfb5afa125bc4859bb87665d7d747307/STP/media/fc1f14295d8940aa83f1bacf2ccf33e8/CAD_MG45-108217_ClampingFixture_Rollco.STP | 16 | 55 (±0,1) | 62 | – | 8 | 2.5 | 10 | 3.5 | Ø 4.5 | 8.5 | 7 | 4 | DIN 912 |
|
||
|
|
/storage/B0DAA7B1022228DD764307BCB249FD89B4DF7D9E79340E578315FBD1541CCE3E/b36e503e171b4e928caf665688e0ed11/STP/media/33c6ea3237894241b9bde7506bbaad4a/CAD_MG45-108219_ClampingFixture_Rollco.STP | 45 | 55 (±0,1) | 62 | 32 | 6.5 | 2.5 | 10 | 3.5 | Ø 4.5 | 8.5 | 7 | 4 | DIN 912 |
|
