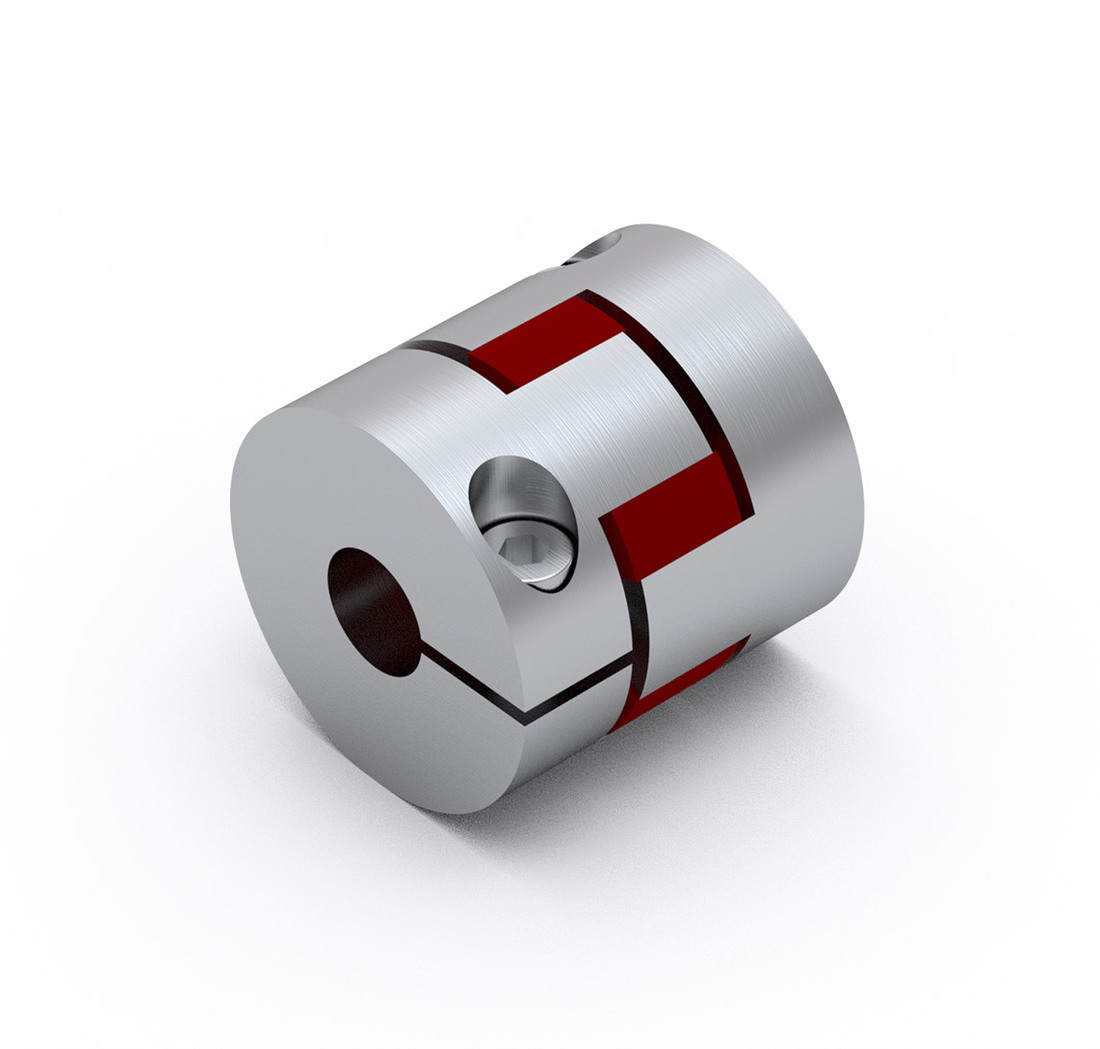

Couplings

Dimension in mm.

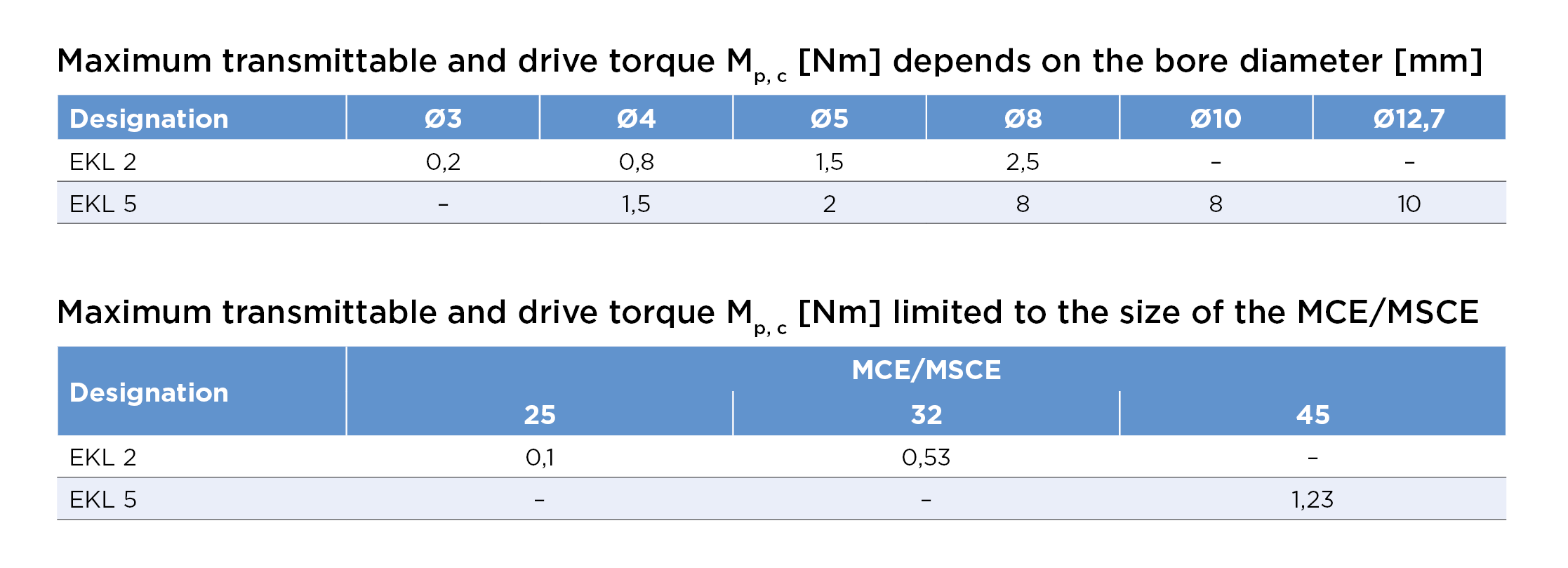

The maximum transmittable torque of the clamping hub depends on the bore diameter.
Read more
Designation Select all Compare Get quote Lead Time * Compatible with Moment of inertia per hub (10⁻³ kg m²) Speed standard (min⁻¹) Max. Torque (Nm) Rated Torque (Nm) Tightening Torque of the Clamping Screw (Nm) Weight (kg)
Get quote 2 MCE/MSCE series 0.0003 15000 4 2 0.6 ≈ 0.008
Get quote 2 MCE/MSCE 45 0.002 15000 18 9 2 ≈ 0.02

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote A B D1 D2 E F G C H BS DE
Get quote 20 16 3 8 M2 5.5 3 6 12 17 6.2
Get quote 26 25 4 12.7 M3 8 4 8 16.7 25 10.2
