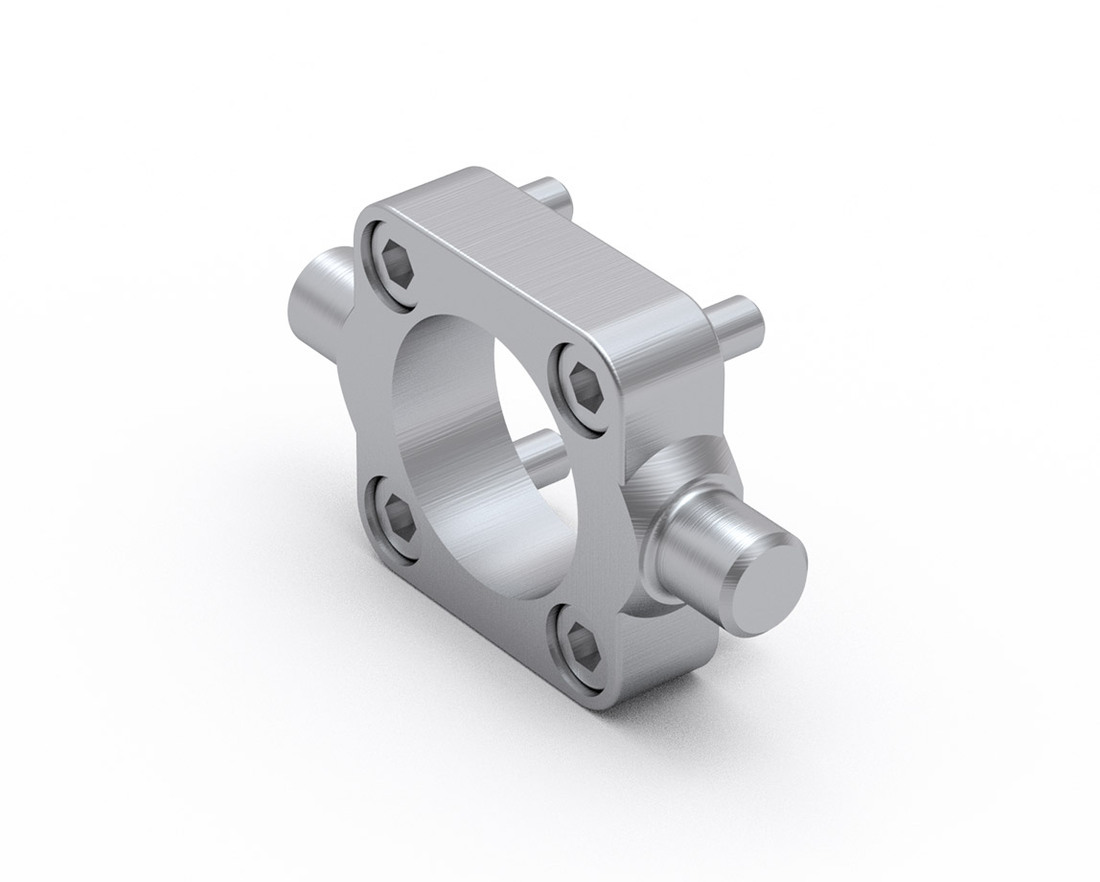

Trunnion mount MZK

Dimensions in mm.

Mounting screws are included.
Lataa PDF code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

Material: Galvanized steel
Designation Select all Compatible with Description Material Fmax (N) Mass (kg/m)
/storage/DD933A3A62FAC1E334F3F2FDF2D002BEC48139083238D6C8F8878C1855EFF8DF/a0c05dd5746342c4806e1430ad148f6b/STP/media/e598d547bd3a42969f31147ebf75d94b/CAD_MZK32-108230_TrunnionMountMZK_Rollco.STP MCE 32 MZK 32 Galvanized steel F MCE 0,12 kg
Get quote
/storage/8538ADAED183BFCD6126210D8F330B9BA470FAC3A8D23754BF042A6373D72363/1c3df1fbf1654eac881ce45e94cebd5f/STP/media/138201981072463cb049835fa4de4a19/CAD_MZK45-108231_TrunnionMountMZK_Rollco.STP MCE 45 MZK 45 Galvanized steel F MCE 0,17 kg
Get quote
Designation Select all L1 L2 L3 L4 L5 L6 L7 D1 D2 D3 D4
/storage/DD933A3A62FAC1E334F3F2FDF2D002BEC48139083238D6C8F8878C1855EFF8DF/a0c05dd5746342c4806e1430ad148f6b/STP/media/e598d547bd3a42969f31147ebf75d94b/CAD_MZK32-108230_TrunnionMountMZK_Rollco.STP 35 22 38 (h14) 12 (h14) 14 6,5 (+0,3/0) 6 (±0,2) 5,50 10 12 (e9) 18
Get quote
/storage/8538ADAED183BFCD6126210D8F330B9BA470FAC3A8D23754BF042A6373D72363/1c3df1fbf1654eac881ce45e94cebd5f/STP/media/138201981072463cb049835fa4de4a19/CAD_MZK45-108231_TrunnionMountMZK_Rollco.STP 46 32 52 (h14) 12 (h14) 14 6,5 (+0,3/0) 7 (±0,2) 6,60 10,50 12 (e9) 32
Get quote
