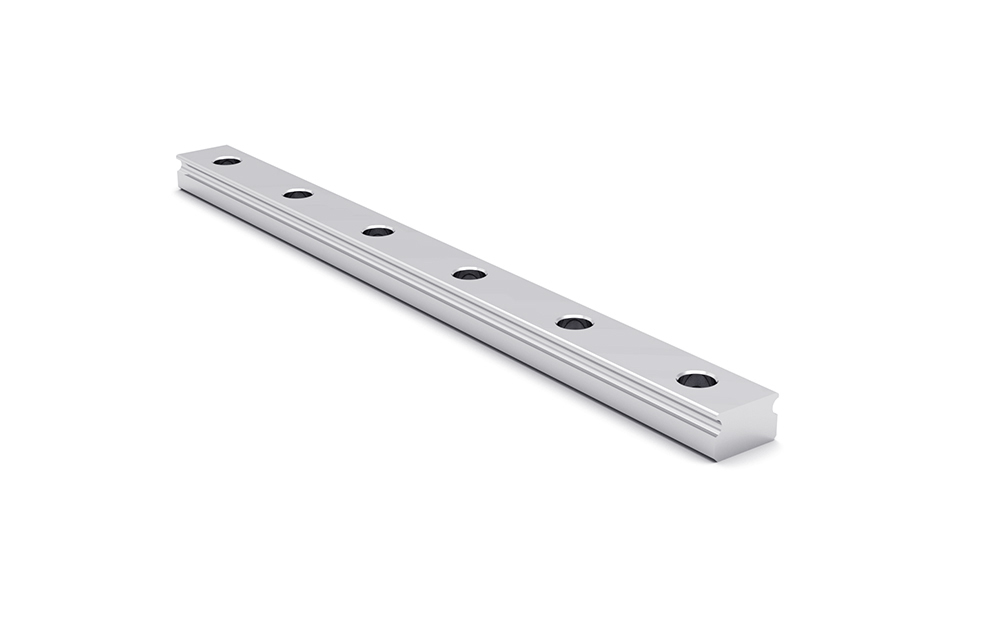

Standard MRU-M Rail

Tapped from bottom.

Dimensions in mm.

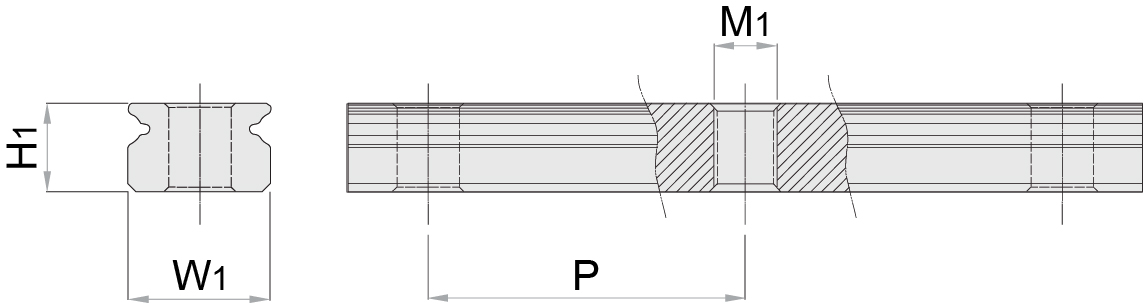

Technical Drawing
Designation H1 W1 Hole Pitch (P) M1 Weight Rail
2,60 3 10 M1,6x0,35 53 g/m
3,50 5 15 M3x0,5 116 g/m
4,70 7 15 M3x0,5 215 g/m
5,50 9 20 M4x0,7 301 g/m
7,50 12 25 M4x0,7 602 g/m
9,50 15 40 M4x0,7 930 g/m
