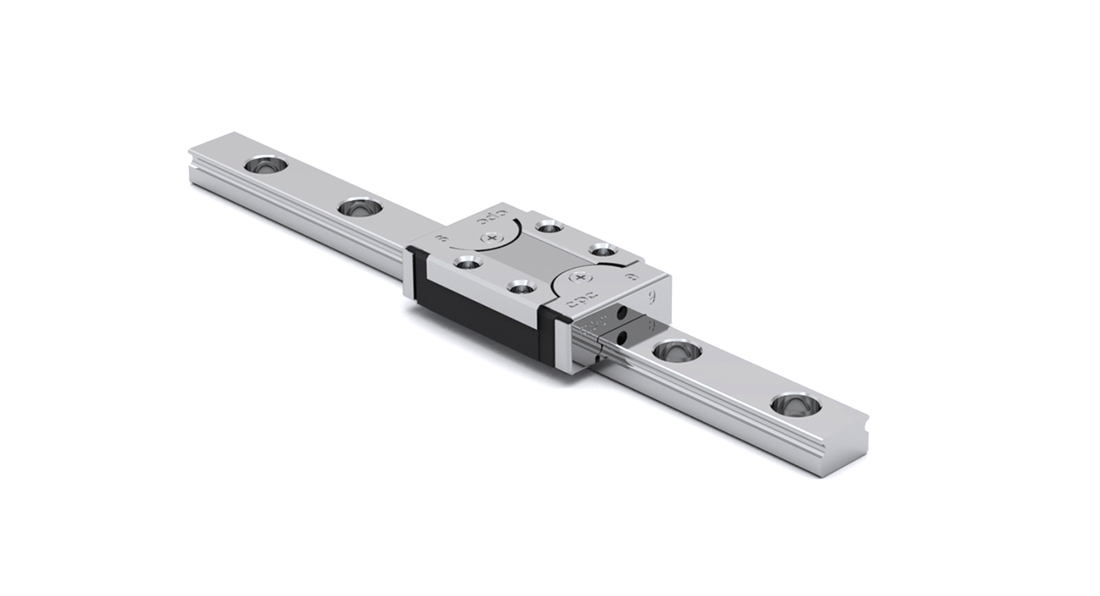

MR-M ZUE Series

STOCK ITEM
Standard Narrow Rail Type
End seal, bottom seal, reinforcement plate, lubrication storage.

Dimensions in mm.

See MR-M SS for sizes 3 and 7.

Please note that blocks and rails are not sold separately for sizes 2, 3 and 5. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Download PDF
Additional Drawing 1

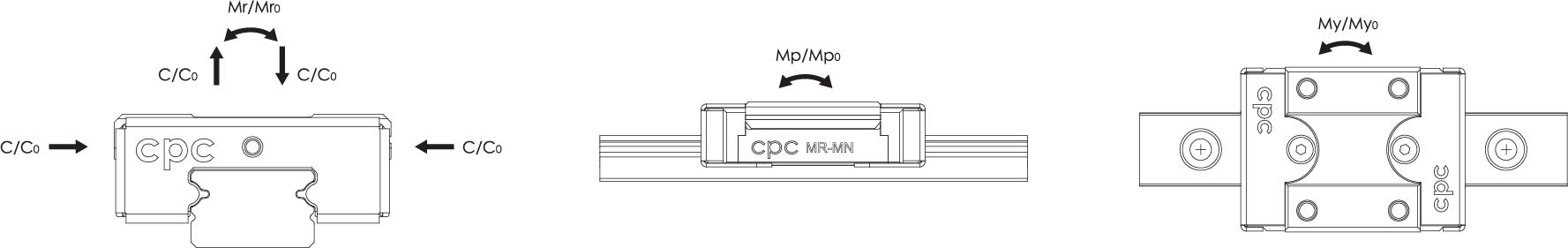

Designation Select all Lead Time * Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block
1 335 N 550 N 1,7 Nm 1 Nm 1 Nm 3,5 g
Compare
Get quote
1 470 N 900 N 2,4 Nm 2,1 Nm 2,1 Nm 4 g
Compare
Get quote
1 1570 N 2495 N 11,7 Nm 6,4 Nm 6,4 Nm 18 g
Compare
Get quote
1 2135 N 3880 N 18,2 Nm 12,4 Nm 12,4 Nm 28 g
Compare
Get quote
1 2308 N 3465 N 21,5 Nm 12,9 Nm 12,9 Nm 34 g
Compare
Get quote
1 3240 N 5630 N 34,9 Nm 30,2 Nm 30,2 Nm 51 g
Compare
Get quote
1 3810 N 5590 N 43,6 Nm 27 Nm 27 Nm 61 g
Compare
Get quote
1 5350 N 9080 N 70 Nm 63,3 Nm 63,3 Nm 90 g
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all System Height (H) System Width (W) Block Length (L)
6 12 16,60
Compare
Get quote
6 12 20,20
Compare
Get quote
10 20 31,60
Compare
Get quote
10 20 41,90
Compare
Get quote
13 27 36,80
Compare
Get quote
13 27 49
Compare
Get quote
16 32 44,60
Compare
Get quote
16 32 61,60
Compare
Get quote
Technical Drawing
Designation Select all P2 P1 S Mxg2
8 - 1,30 M2x1,5
Compare
Get quote
- 7 1,30 M2,6x2,0
Compare
Get quote
15 10 2,20 M3x3,0
Compare
Get quote
15 16 2,20 M3x3,0
Compare
Get quote
20 15 3,20 M3x3,5
Compare
Get quote
20 20 3,20 M3x3,5
Compare
Get quote
25 20 3,30 M3x5,5
Compare
Get quote
25 25 3,30 M3x5,5
Compare
Get quote
Technical Drawing
Designation Select all W1 H1 D x d x g1 Hole Pitch (P)
5 3,50 3,5x2,4x1 15
Compare
Get quote
5 3,50 3,5x2,4x1 15
Compare
Get quote
9 5,50 6x3,5x3,5 20
Compare
Get quote
9 5,50 6x3,5x3,5 20
Compare
Get quote
12 7,50 6x3,5x4,5 25
Compare
Get quote
12 7,50 6x3,5x4,5 25
Compare
Get quote
15 9,50 6x3,5x4,5 40
Compare
Get quote
15 9,50 6x3,5x4,5 40
Compare
Get quote
Technical Drawing
Designation Select all L1 h2 W2 Mxg2 T H1 ø
10 5 3,50 M2x1,5 2 3,50 0,70
Compare
Get quote
13,50 5 3,50 M2,6x2,0 2 3,50 0,70
Compare
Get quote
20,50 8,50 5,50 M3x3,0 3,30 5,50 1,30
Compare
Get quote
30,80 8,50 5,50 M3x3,0 3,30 5,50 1,30
Compare
Get quote
22 10,90 7,50 M3x3,5 4,30 7,50 1,30
Compare
Get quote
34 10,90 7,50 M3x3,5 4,30 7,50 1,30
Compare
Get quote
27 13,10 8,50 M3x5,5 4,30 9,50 1,80
Compare
Get quote
44 13,10 8,50 M3x5,5 4,30 9,50 1,80
Compare
Get quote
