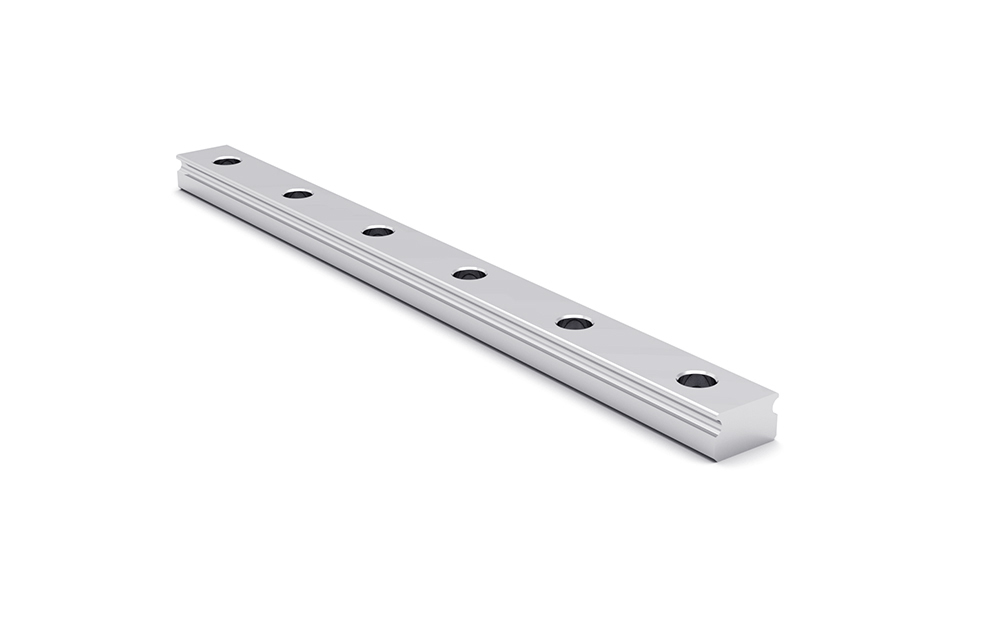

Standard MR-M Rail
Tapped from above.

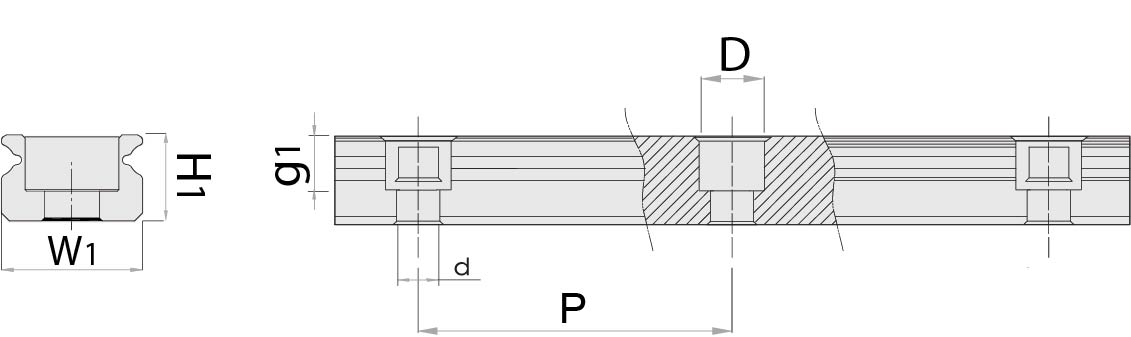

Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2, 3 and 5. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Dimensions in mm.
Please note that blocks and rails are not sold separately for sizes 2, 3 and 5. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
| Designation | Select all | Lead Time * | H1 | W1 | Hole Pitch (P) | D x d x g1 | Weight Rail | ||
|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 2,60 | 3 | 10 | M1,6 | 53 g/m |
|
Get quote | |
|
|
1 | 3,50 | 5 | 15 | 3,5x2,4x1 | 116 g/m |
|
Get quote | |
|
|
1 | 4,70 | 7 | 15 | 4,2x2,4x2,3 | 215 g/m |
|
Get quote | |
|
|
1 | 5,50 | 9 | 20 | 6x3,5x3,5 | 301 g/m |
|
Get quote | |
|
|
1 | 7,50 | 12 | 25 | 6x3,5x4,5 | 602 g/m |
|
Get quote | |
|
|
1 | 9,50 | 15 | 40 | 6x3,5x4,5 | 930 g/m |
|
Get quote |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
