CP planetary gearbox
Ratio 3-100, Backlash: ≤ 12 -18 arcmin. For medium to low accuracy- and performance-requirements. Compact B14 output interface.

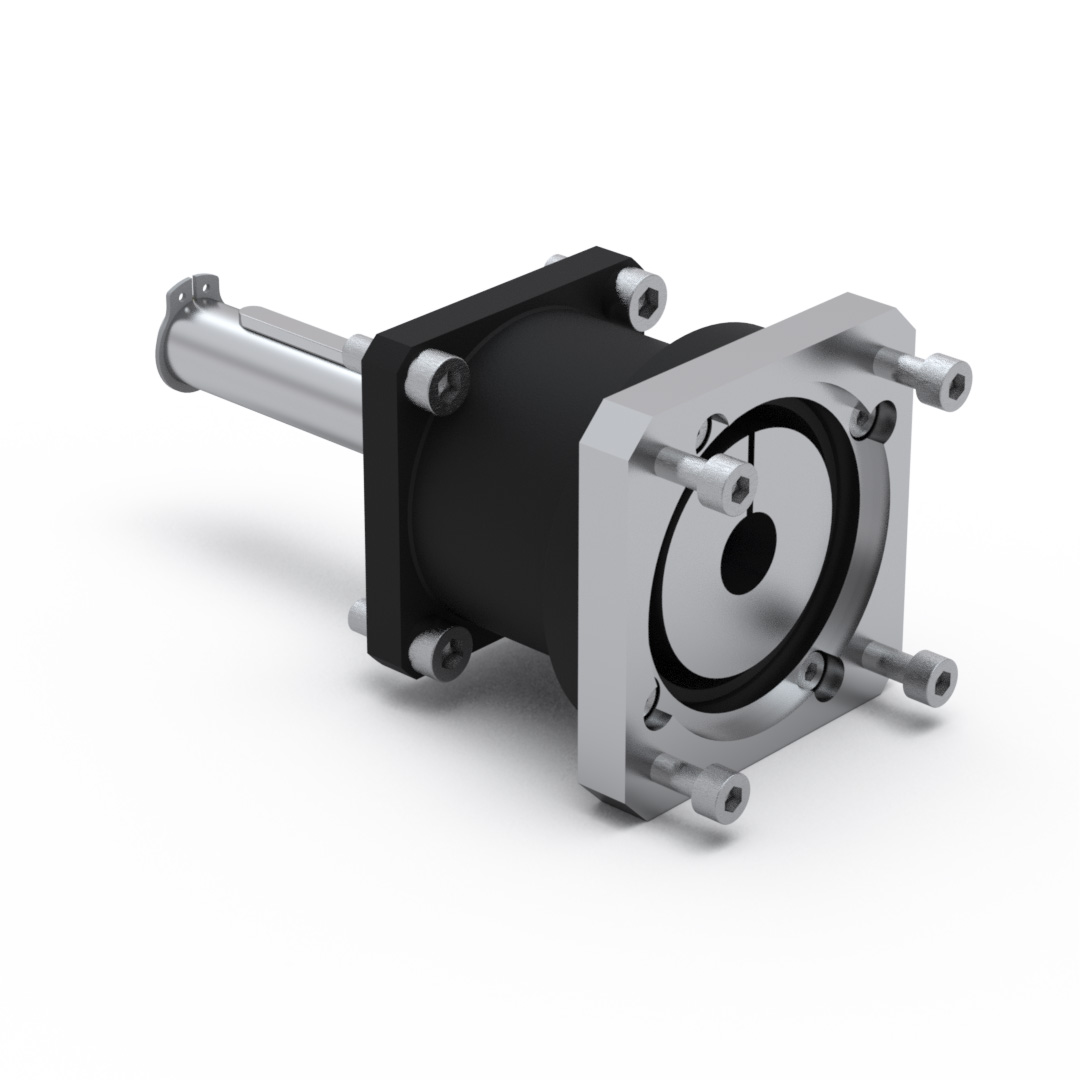

Adapter kit RHL
Easily connect your RHL Linear unit with a planetary gear by using our adapter-kit. Design your complete solution of RHL Linear unit + Adapter kit + Planetary gear with our CAD-Configurator.
Lataa PDF (kaikki tiedot)
code.product.loadingpdf
+
Lisää PDF-luetteloon
Product Information
| Designation | Select all | Lead Time * | W1 | L | D1 | D2 | D3 | N1 | Compatible with | G1 | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 60x60 | 62 | 14 | 60 | 75 | 6.4 | RHL80 | M5 |
|
|||
|
|
2 | 90x90 | 86 | 24 | 110 | 130 | 8.4 | RHL110 | M8 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
CPS planetary gearbox
Ratio 3-100, Backlash: ≤ 12 -15 arcmin. For medium to low accuracy- and performance-requirements. Output interface cylindrical or with B5-flange. -
CPK bevel gearbox
Version of CP with a 90° bevel gear input stage. Backlash ≤ 13 - 20 arcmin. -
CPSK bevel gearbox
Version of CPS with a 90° bevel gear input stage. Backlash ≤ 15 - 18 arcmin.
