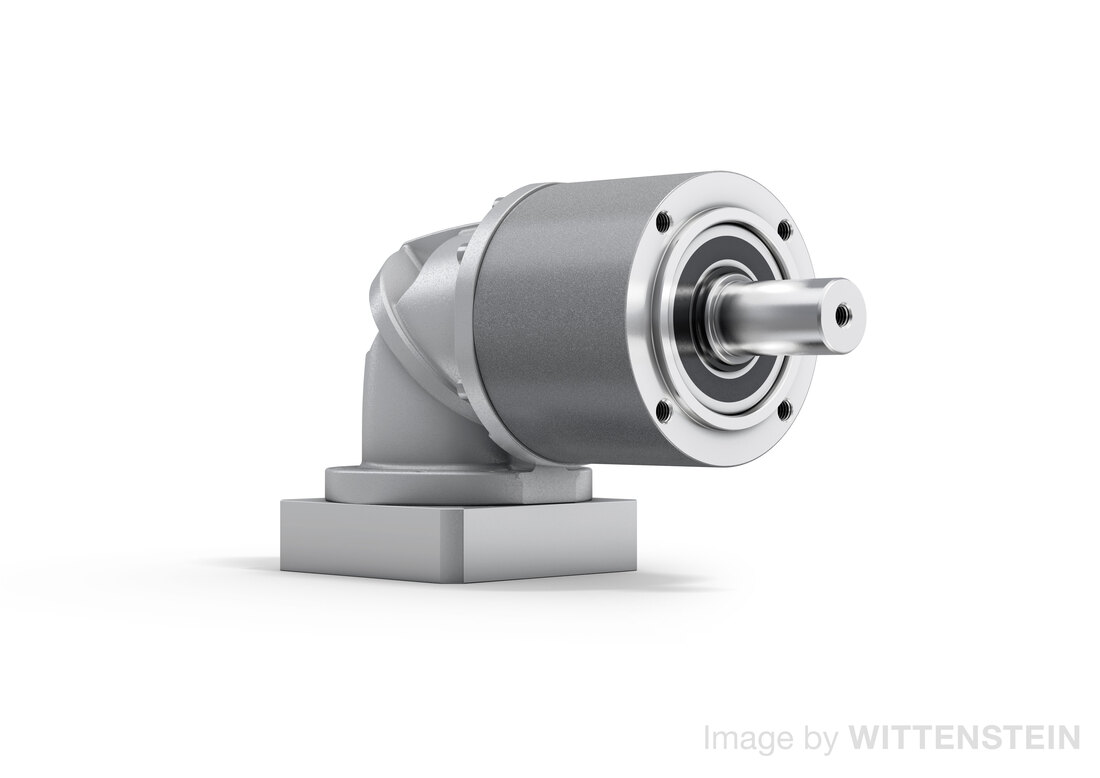

CPK bevel gearbox

NEW
The most economical right-angle planetary gearbox. Based on the CP gearbox with an additional bevel-gear input stage. Used where space-constraints does not allow an in-line assembly with the motor. The stated maximal backlash is kept throughout the lifetime of the gearbox.
Lataa PDF code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

Ratio: 3-100
Max. Torque (Nm): 14 - 700
Other models: food-grade lubrication
Designation Select all Lead Time * Size Ratio
2 005 4 / 5 / 7 / 8 / 10 / 16 / 20 / 25 / 28 / 35 / 40
Get quote
2 015 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
Get quote
2 025 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
Get quote
2 035 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
Get quote
2 045 5 / 8 / 10 / 25 / 50 / 100
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
