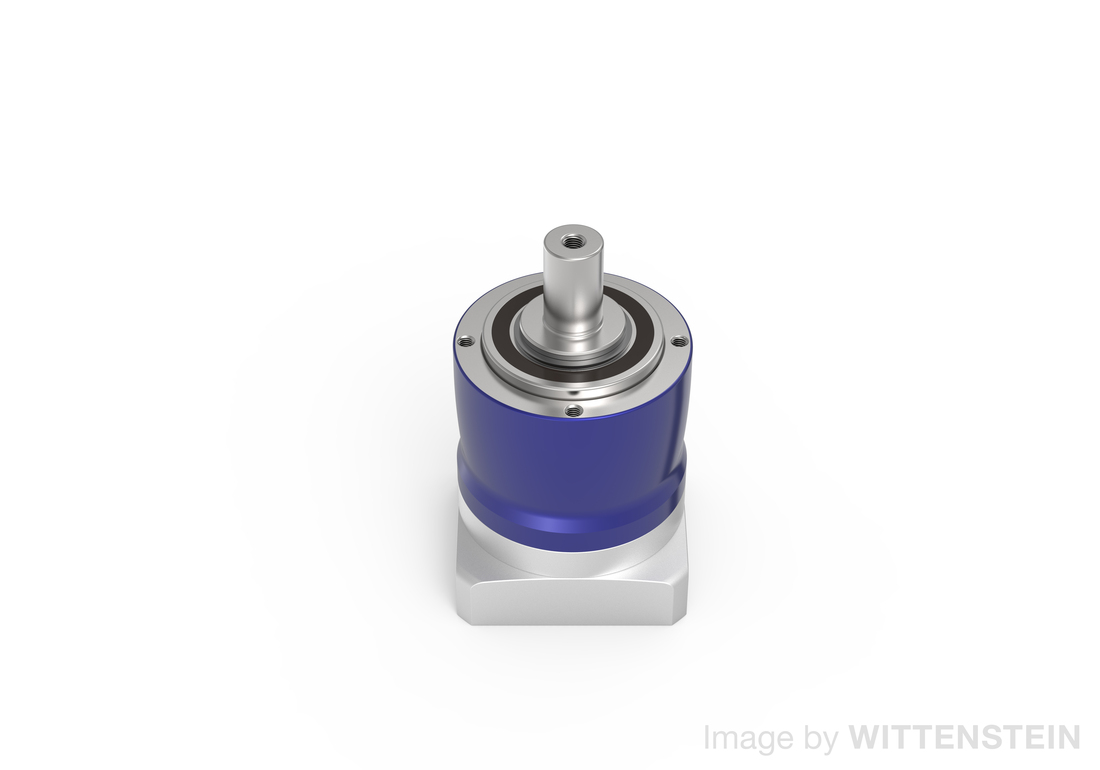

NP planetary gearbox

Universally suitable gearbox from alpha Value Line with the best price-performance level. With LP+ B14 output geometry. Smooth or keyed output shaft. Optional available in High Torque execution for ratio 3:1 and 4:1 and products thereof for 2-stage gears. The stated maximal backlash is kept throughout the lifetime of the gearbox.
Contact Rollco for CAD-files.
Lataa PDF (kaikki tiedot) code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

Ratio: 3-100
Max. Torque (Nm): 18 - 800
Other models: food-grade lubrication
Technical_information_NP-NPL-NPS-NPT-NPR.pdf
Planetary_Gearboxes_Order_Codes.pdf
Operating_manual_NP-NPK-NPL-NPLK-NPR-NPRK-NPS-NPSK-NPT-NPTK-CP-CPS-CPS-CPSK.pdf
Designation Select all Lead Time * Size Ratio Compare
2 005 4 / 5 / 7 / 8 / 10 / 16 / 20 / 25 / 28 / 35 / 40 / 50 / 64 / 70 / 100
Get quote
2 015 3 / 4 / 5 / 7 / 8 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)
Get quote
2 025 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16/ 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)
Get quote
2 035 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16/ 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)
Get quote
2 045 5 / 8 / 10 / 25 / 32 / 50 / 64 / 100
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
