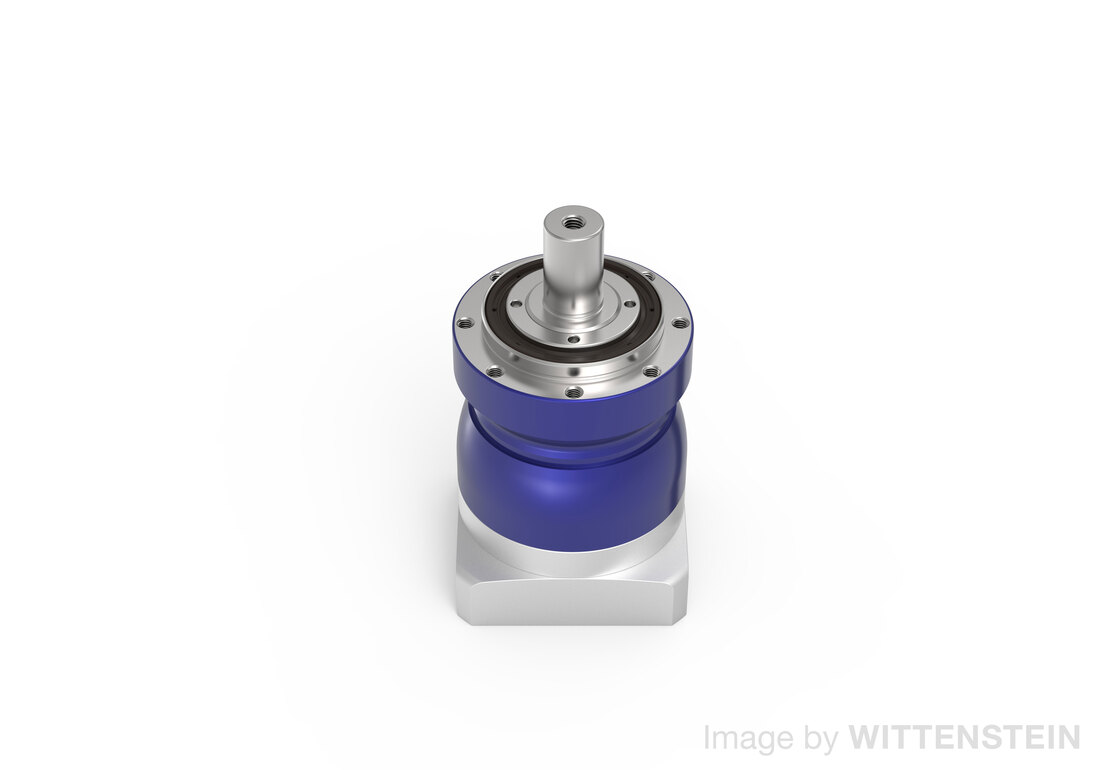

NPL planetary gearbox

NEW
Universally suitable gearbox from alpha Value Line. With LP+ B14 output geometry. Smooth or keyed cylindrical output shaft or DIN 5480 involute splined shaft. Reinforced output bearings enable applications with high radial and axial shaft loads. Optional available in High Torque execution for ratio 3:1 and 4:1 and products thereof for 2-stage gears. The stated maximal backlash is kept throughout the lifetime of the gearbox.
Contact Rollco for CAD-files.
Lataa PDF code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

Ratio: 3-100
Max Torque (Nm): 18 - 800
Other models: food-grade lubrication
Designation Select all Lead Time * Size Ratio
2 015 3 / 4 / 5 / 7 / 8 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)
Get quote
2 025 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)
Get quote
2 035 3 / 4 / 5 / 7 / 8 / 9 / 10 / 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 50 / 64 / 70 / 100 (Gearbox model Standard)
Get quote
2 045 5 / 8 / 10 / 25 / 32 / 50 / 64 / 100
Get quote

*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
