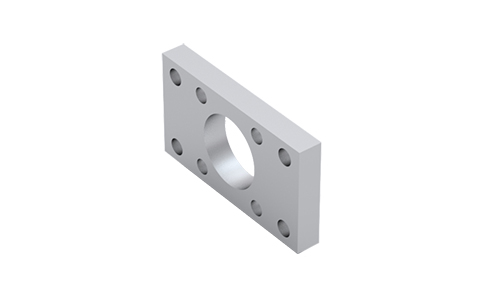

FG
Dimensions in mm.
Read more
Product Information
Material: Galvanized or stainless steel AISI 304
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | FG 32 | PNCE 32 | Galvanized steel | F PNCE | 0.22 | ||||
|
|
|
2 | FG 32 CR | PNCE 32 | Stainless steel AISI 304 | F PNCE | 0.22 | ||||
|
|
|
2 | FG 40 | PNCE 40 | Galvanized steel | F PNCE | 0.28 | ||||
|
|
|
2 | FG 40 CR | PNCE 40 | Stainless steel AISI 304 | F PNCE | 0.28 | ||||
|
|
|
2 | FG 50 | PNCE 50 | Galvanized steel | F PNCE | 0.53 | ||||
|
|
|
2 | FG 50 CR | PNCE 50 | Stainless steel AISI 304 | F PNCE | 0.53 | ||||
|
|
|
2 | FG 63 | PNCE 63 | Galvanized steel | F PNCE | 0.68 | ||||
|
|
|
2 | FG 63 CR | PNCE 63 | Stainless steel AISI 304 | F PNCE | 0.68 | ||||
|
|
|
2 | FG 80 | PNCE 80 | Galvanized steel | F PNCE | 1.4 | ||||
|
|
|
2 | FG 80 CR | PNCE 80 | Stainless steel AISI 304 | F PNCE | 1.4 | ||||
|
|
|
2 | FG 100 | PNCE 100 | Galvanized steel | F PNCE | 1.92 | ||||
|
|
|
2 | FG 100 CR | PNCE 100 | Stainless steel AISI 304 | F PNCE | 1.92 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | D4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
80 | 64 | 32 | 45 | 10 | 32.5 | 5 | Ø 30 (H11) | Ø 7 (H13) | Ø 6.5 | Ø 10.5 | ||||
|
|
|
80 | 64 | 32 | 45 | 10 | 32.5 | 5 | Ø 30 (H11) | Ø 7 (H13) | Ø 6.5 | Ø 10.5 | ||||
|
|
|
90 | 72 | 36 | 52 | 10 | 38 | 5 | Ø 35 (H11) | Ø 9 (H13) | Ø 6.5 | Ø 10.5 | ||||
|
|
|
90 | 72 | 36 | 52 | 10 | 38 | 5 | Ø 35 (H11) | Ø 9 (H13) | Ø 6.5 | Ø 10.5 | ||||
|
|
|
110 | 90 | 45 | 65 | 12 | 46.5 | 6.5 | Ø 40 (H11) | Ø 9 (H13) | Ø 8.5 | Ø 13.5 | ||||
|
|
|
110 | 90 | 45 | 65 | 12 | 46.5 | 6.5 | Ø 40 (H11) | Ø 9 (H13) | Ø 8.5 | Ø 13.5 | ||||
|
|
|
120 | 100 | 50 | 75 | 12 | 56.5 | 6.5 | Ø 45 (H11) | Ø 9 (H13) | Ø 8.5 | Ø 13.5 | ||||
|
|
|
120 | 100 | 50 | 75 | 12 | 56.5 | 6.5 | Ø 45 (H11) | Ø 9 (H13) | Ø 8.5 | Ø 13.5 | ||||
|
|
|
150 | 126 | 63 | 95 | 16 | 72 | 9 | Ø 60 (H11) | Ø 12 (H13) | Ø 10.5 | Ø 16.5 | ||||
|
|
|
150 | 126 | 63 | 95 | 16 | 72 | 9 | Ø 60 (H11) | Ø 12 (H13) | Ø 10.5 | Ø 16.5 | ||||
|
|
|
170 | 150 | 75 | 115 | 16 | 89 | 9 | Ø 70 (H11) | Ø 14 (H13) | Ø 10.5 | Ø 16.5 | ||||
|
|
|
170 | 150 | 75 | 115 | 16 | 89 | 9 | Ø 70 (H11) | Ø 14 (H13) | Ø 10.5 | Ø 16.5 |
-
-
