SSG
Mounting attachment accessory SSG, aluminium or stainless steel AISI 316

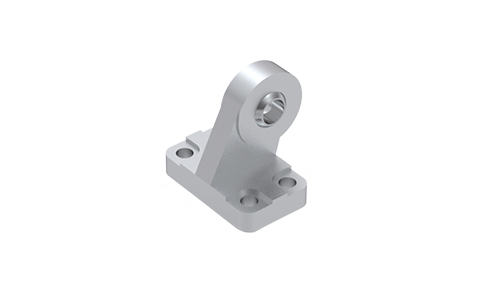

LSG
Dimensions in mm.
Read more
Product Information
Material: Steel (black cataphoresis) or stainless steel AISI 316
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | PNCE 32 | Steel (black cataphoresis) | F PNCE | 0.18 | ||||
|
|
|
2 | PNCE 32 | Stainless steel AISI 316 | F PNCE | 0.18 | ||||
|
|
|
2 | PNCE 40 | Steel (black cataphoresis) | F PNCE | 0.27 | ||||
|
|
|
2 | PNCE 40 | Stainless steel AISI 316 | F PNCE | 0.27 | ||||
|
|
|
2 | PNCE 50 | Steel (black cataphoresis) | F PNCE | 0.46 | ||||
|
|
|
2 | PNCE 50 | Stainless steel AISI 316 | F PNCE | 0.46 | ||||
|
|
|
2 | PNCE 63 | Steel (black cataphoresis) | F PNCE | 0.55 | ||||
|
|
|
2 | PNCE 63 | Stainless steel AISI 316 | F PNCE | 0.55 | ||||
|
|
|
2 | PNCE 80 | Steel (black cataphoresis) | F PNCE | 0.97 | ||||
|
|
|
2 | PNCE 80 | Stainless steel AISI 316 | F PNCE | 0.97 | ||||
|
|
|
2 | PNCE 100 | Steel (black cataphoresis) | F PNCE | 1.33 | ||||
|
|
|
2 | PNCE 100 | Stainless steel AISI 316 | F PNCE | 1.33 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | D1 | D2 | D3 | R1 | R2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
51 | 38 | 14 | 32 (JS 15) | 22 | 10.5 | 8.5 | 18 | 31 | 21 (JS 15) | 3 | Ø 10 (H7) | Ø 6.6 (H13) | Ø 20 (H13) | 15 | 5.5 (H13) | ||||
|
|
|
51 | 38 | 14 | 32 (JS 15) | 22 | 10.5 | 8.5 | 18 | 31 | 21 (JS 15) | 3 | Ø 10 (H7) | Ø 6.6 (H13) | Ø 20 (H13) | 15 | 5.5 (H13) | ||||
|
|
|
54 | 41 | 16 | 36 (JS 15) | 22 | 10.5 | 8.5 | 18 | 31 | 24 (JS 15) | 3 | Ø 12 (H7) | Ø 6.6 (H13) | Ø 20 (H13) | 18 | 5.5 (H13) | ||||
|
|
|
54 | 41 | 16 | 36 (JS 15) | 22 | 10.5 | 8.5 | 18 | 31 | 24 (JS 15) | 3 | Ø 12 (H7) | Ø 6.6 (H13) | Ø 20 (H13) | 18 | 5.5 (H13) | ||||
|
|
|
65 | 50 | 21 | 45 (JS 15) | 26 | 12 | 8.5 | 22 | 35 | 33 (JS 15) | 3 | Ø 16 (H7) | Ø 9 (H13) | Ø 20 (H13) | 20 | 7.5 (H13) | ||||
|
|
|
65 | 50 | 21 | 45 (JS 15) | 26 | 12 | 8.5 | 22 | 35 | 33 (JS 15) | 3 | Ø 16 (H7) | Ø 9 (H13) | Ø 20 (H13) | 20 | 7.5 (H13) | ||||
|
|
|
67 | 52 | 21 | 50 (JS 15) | 33 | 15 | 10.5 | 30 | 45 | 37 (JS 15) | 3 | Ø 16 (H7) | Ø 9 (H13) | Ø 20 (H13) | 23 | 7.5 (H13) | ||||
|
|
|
67 | 52 | 21 | 50 (JS 15) | 33 | 15 | 10.5 | 30 | 45 | 37 (JS 15) | 3 | Ø 16 (H7) | Ø 9 (H13) | Ø 20 (H13) | 23 | 7.5 (H13) | ||||
|
|
|
86 | 66 | 25 | 63 (JS 15) | 38 | 15 | 10.5 | 35 | 50 | 47 (JS 15) | 3 | Ø 20 (H7) | Ø 11 (H13) | Ø 20 (H13) | 27 | 9 (H13) | ||||
|
|
|
86 | 66 | 25 | 63 (JS 15) | 38 | 15 | 10.5 | 35 | 50 | 47 (JS 15) | 3 | Ø 20 (H7) | Ø 11 (H13) | Ø 20 (H13) | 27 | 9 (H13) | ||||
|
|
|
96 | 76 | 25 | 71 (JS 15) | 49 | 18 | 11.5 | 40 | 60 | 55 (JS 15) | 3 | Ø 20 (H7) | Ø 11 (H13) | Ø 20 (H13) | 30 | 9 (H13) | ||||
|
|
|
96 | 76 | 25 | 71 (JS 15) | 49 | 18 | 11.5 | 40 | 60 | 55 (JS 15) | 3 | Ø 20 (H7) | Ø 11 (H13) | Ø 20 (H13) | 30 | 9 (H13) |
-
-
