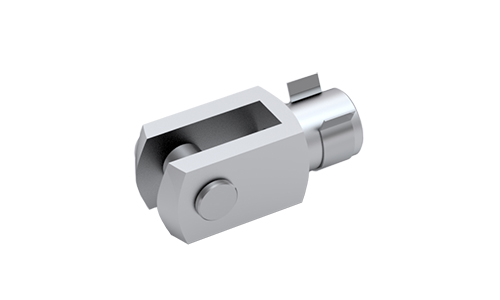

SG

Dimensions in mm.
Read more

Product Information

Material: Galvanized or stainless steel AISI 304
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Material Fmax (N) Mass (kg)
Get quote 2 SG 32 PNCE 32 Galvanized steel F PNCE 0.09
Get quote 2 SG 32 CR PNCE 32 Stainless steel AISI 304 F PNCE 0.09
Get quote 2 SG 40 PNCE 40 Galvanized steel F PNCE 0.15
Get quote 2 SG 40 CR PNCE 40 Stainless steel AISI 304 F PNCE 0.15
Get quote 2 SG 50 PNCE 50 Galvanized steel F PNCE 0.33
Get quote 2 SG 50 CR PNCE 50 Stainless steel AISI 304 F PNCE 0.33
Get quote 2 SG 63 PNCE 63 Galvanized steel F PNCE 0.33
Get quote 2 SG 63 CR PNCE 63 Stainless steel AISI 304 F PNCE 0.33
Get quote 2 SG 80 PNCE 80 Galvanized steel F PNCE 0.68
Get quote 2 SG 80 CR PNCE 80 Stainless steel AISI 304 F PNCE 0.68
Get quote 2 SG 100 PNCE 100 Galvanized steel F PNCE 0.68
Get quote 2 SG 100 CR PNCE 100 Stainless steel AISI 304 F PNCE 0.68

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote M L1 L2 L3 L4 L5 L6 D1 D2
Get quote M10 × 1.25 52 (±0.5) 26 10 (B13) 20 (±0.5) 40 20 Ø 10 (h11) Ø 18
Get quote M10 × 1.25 52 (±0.5) 25 10 (B13) 20 (±0.5) 40 20 Ø 10 (h11) Ø 18
Get quote M12 × 1.25 62 (±0.5) 32 12 (B13) 24 (±0.5) 48 24 Ø 12 (h11) Ø 20
Get quote M12 × 1.25 62 (±0.5) 30 12 (B13) 24 (±0.5) 48 24 Ø 12 (h11) Ø 20
Get quote M16 × 1.5 83 (±0.5) 40 16 (B13) 32 (±0.5) 64 32 Ø 16 (h11) Ø 26
Get quote M16 × 1.5 83 (±0.5) 39 16 (B13) 32 (±0.5) 64 32 Ø 16 (h11) Ø 26
Get quote M16 × 1.5 83 (±0.5) 40 16 (B13) 32 (±0.5) 64 32 Ø 16 (h11) Ø 26
Get quote M16 × 1.5 83 (±0.5) 39 16 (B13) 32 (±0.5) 64 32 Ø 16 (h11) Ø 26
Get quote M20 × 1.5 105 (±0.5) 48 20 (B13) 40 (±0.5) 80 40 Ø 20 (h11) Ø 34
Get quote M20 × 1.5 105 (±0.5) 48 20 (B13) 40 (±0.5) 80 40 Ø 20 (h11) Ø 34
Get quote M20 × 1.5 105 (±0.5) 48 20 (B13) 40 (±0.5) 80 40 Ø 20 (h11) Ø 34
Get quote M20 × 1.5 105 (±0.5) 48 20 (B13) 40 (±0.5) 80 40 Ø 20 (h11) Ø 34
