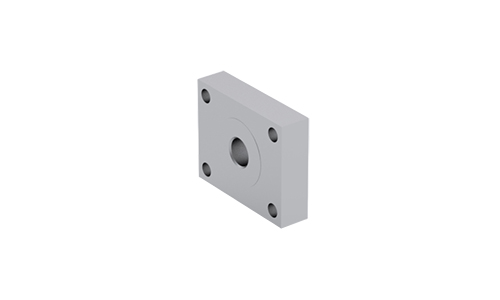

KSZ

Dimensions in mm.
Read more

Product Information

Material: Galvanized steel
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Fmax (N) Mass (kg)
Get quote 2 KSZ 32 PNCE 32 F PNCE 0.11
Get quote 2 KSZ 40 PNCE 40 F PNCE 0.18
Get quote 2 KSZ 50 PNCE 50 F PNCE 0.25
Get quote 2 KSZ 63 PNCE 63 F PNCE 0.25
Get quote 2 KSZ 80 PNCE 80 24800 0.42
Get quote 2 KSZ 100 PNCE 100 24800 0.42

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote M L1 L2 L3 L4 L5 L6 L7 D1 D2 D3 CH
Get quote Ø M10 × 1.25 40 35 30 25 20 10 0.1 Ø 17 (-0.2) Ø 26 Ø 5.5 (H13) 15
Get quote Ø M12 × 1.25 50 40 40 30 22 12 0.1 Ø 17 (-0.2) Ø 26 Ø 5.5 (H13) 15
Get quote Ø M16 × 1.5 60 45 48 33 25 12 0.1 Ø 22 (-0.2) Ø 34 Ø 6.6 (H13) 19
Get quote Ø M16 × 1.5 60 45 48 33 25 12 0.1 Ø 22 (-0.2) Ø 34 Ø 6.6 (H13) 19
Get quote Ø M20 × 1.5 72 50 57 35 32 15 0.1 Ø 30 (-0.2) Ø 44 Ø 9 (H13) 27
Get quote Ø M20 × 1.5 72 50 57 35 32 15 0.1 Ø 30 (-0.2) Ø 44 Ø 9 (H13) 27
