Fixing Element Square BQ---.1000

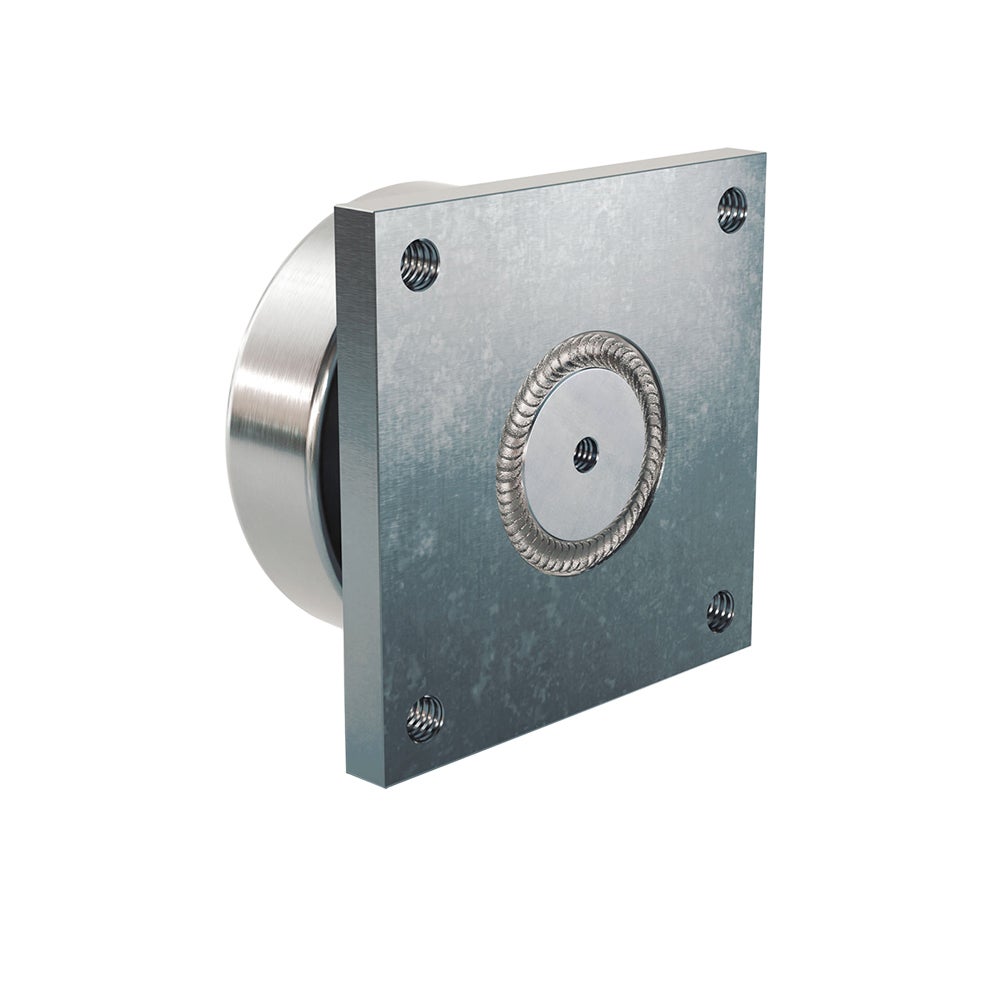

• The fixing element is welded with the respective combined roller
• Special dimensions on request.

* For L measurement, see respective roller.

Order example: Roller + Mounting plate TR070.0200/BQ1000

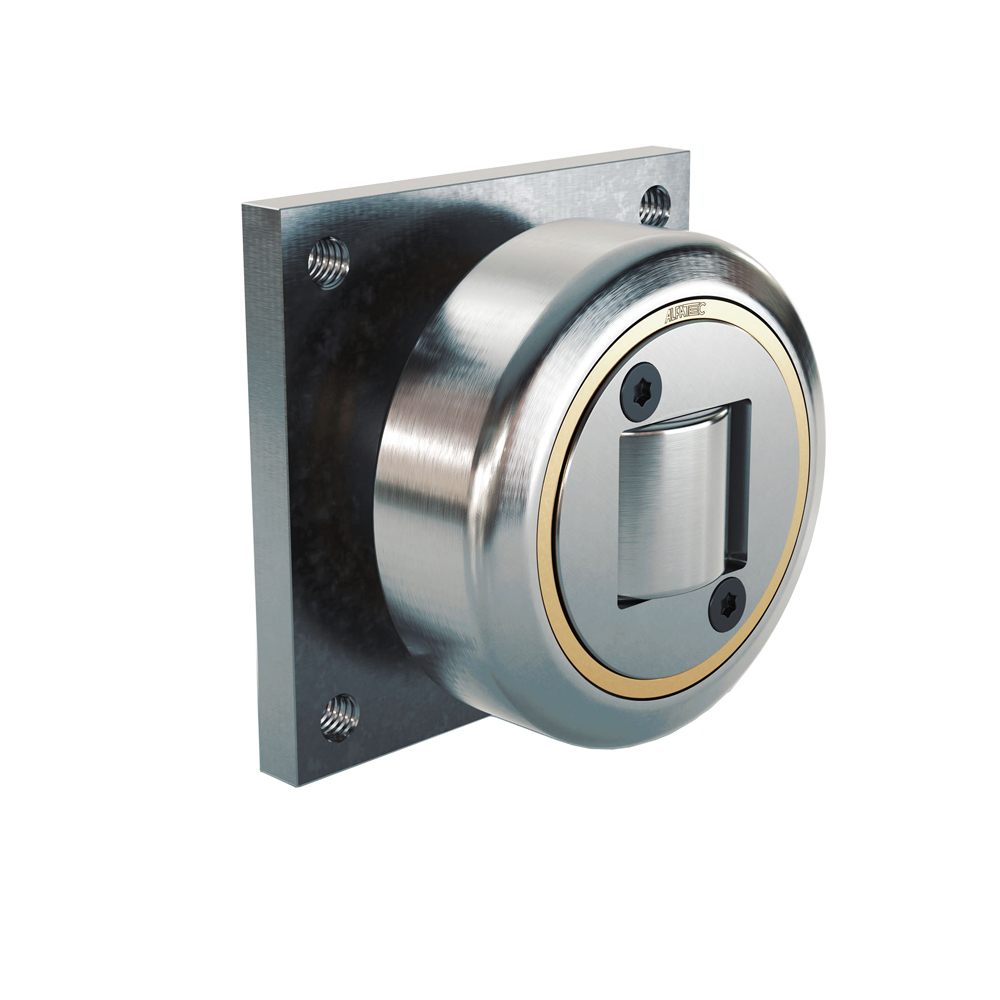

Roller, combined, fixed, Ø 70,1 mm - welded with mounting plate 120 x 80 x 15 mm

Dimensions in mm.

Product Information

Designation Remark
Roller: TR050.---, Plate: BQ1000, Distance sheet: BQ050.1405, BQ050.1410
Roller: TR060.--- / XTR060---, Plate: BQ1000, Distance sheet: BQ060.1405, BQ060.1410
Roller: TR070.--- / XTR070---, Plate: BQ1000, Distance sheet: BQ070.1405, BQ070.1410
Roller: TR080.--- / XTR080---, Plate: BQ1000, Distance sheet: BQ080.1405, BQ080.1410
Roller: TR090.--- / XTR090---, Plate: BQ1000, Distance sheet: BQ090.1405, BQ090.1410
Roller: TR110.--- / XTR110---, Plate: BQ1000, Distance sheet: BQ110.1405, BQ110.1410
Roller: TR120.--- / XTR120---, Plate: BQ1000, Distance sheet: BQ120.1405, BQ120.1410
Roller: TR150.--- / XTR150---, Plate: BQ1000, Distance sheet: BQ150.1405, BQ150.1410
Roller: TR180.---, Plate: BQ1000, Distance sheet: BQ180.1405, BQ180.1410

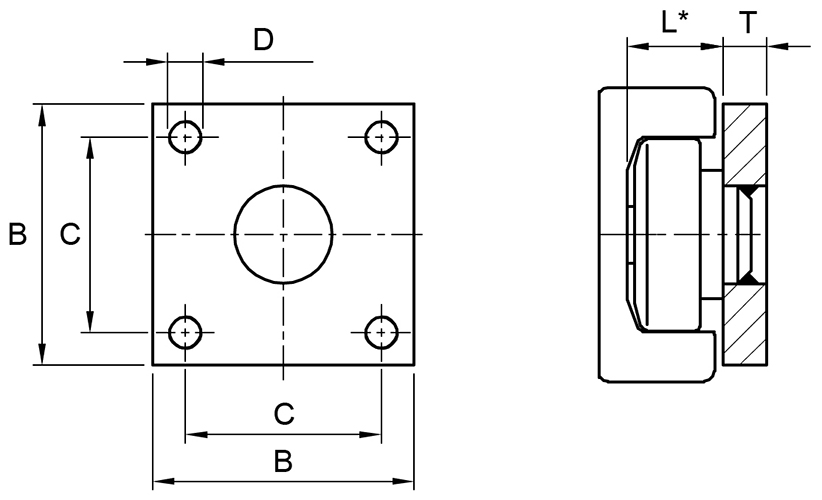

Technical Drawing
Designation B C D T
60 40 M8 10
70 50 M10 12
80 60 M12 15
100 70 M12 15
120 90 M16 20
140 100 M16 20
140 100 M16 20
160 120 M16 25
200 150 M20 30
