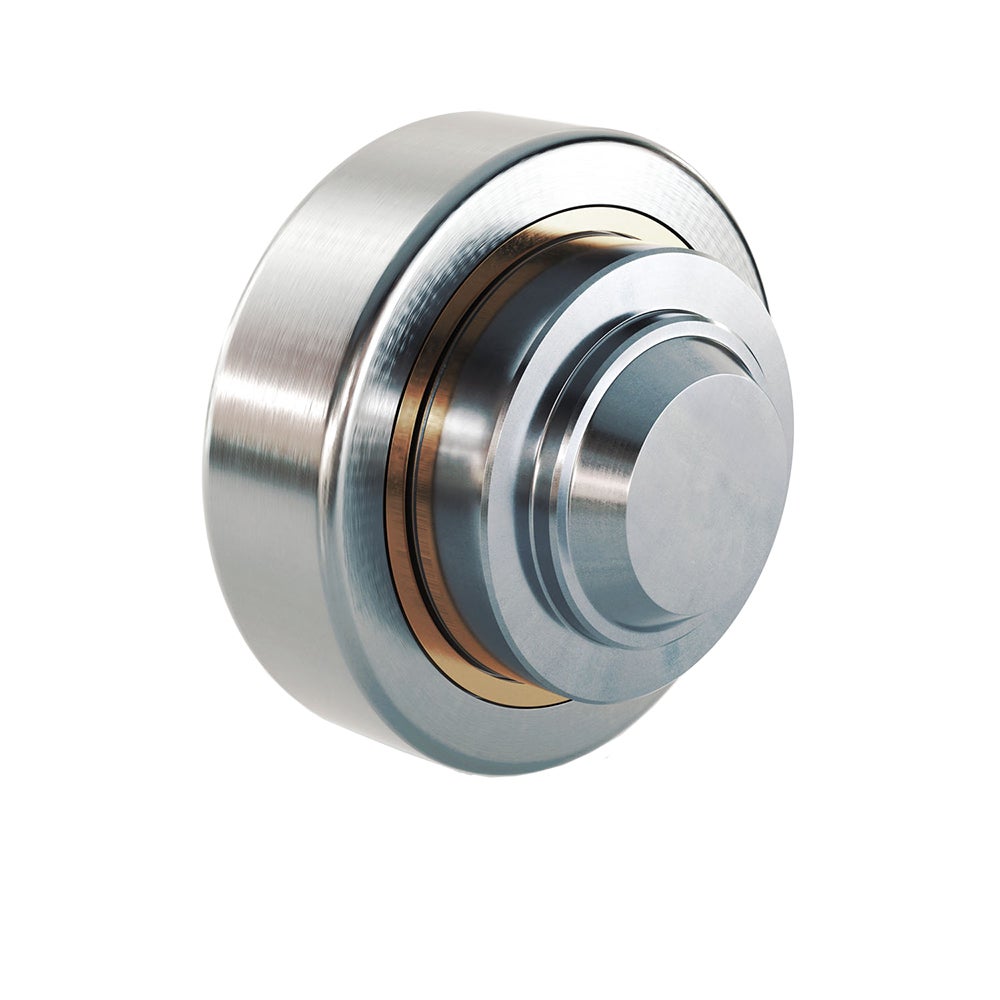

Standard Roller with Oilamide Sliding Block TR---.0360

• Lubricated for lifetime

Use profile UP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! Dynamic load capacity refers to bearing.

Dimensions in mm.

Product Information

Designation Dynamic Load Capacity Radial System Load Capacity Radial System Load Capacity Axial
24500 N 5300 N 2000 N
31000 N 8870 N 2950 N
45500 N 11400 N 3150 N
48000 N 12870 N 5000 N
68000 N 20370 N 5100 N
81000 N 24060 N 8900 N
110000 N 33440 N 9800 N
151000 N 51940 N 17400 N

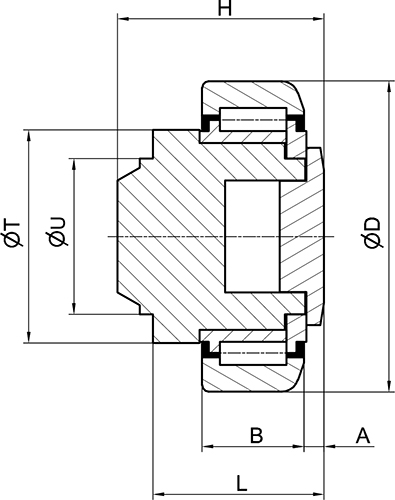

Technical Drawing
Designation A B D H L T U
6 17 52,50 34 28 40 30
5,50 20 62,50 43 33 42 30
6,50 23 70,10 48 40 48 35
7 23 77,70 50,50 39,50 54 40
7 30 88,40 61 48 59 45
8 31 107,70 69 55 71 60
8 37 123 75,80 59,50 80 60
8 45 149 82 62 103 60
