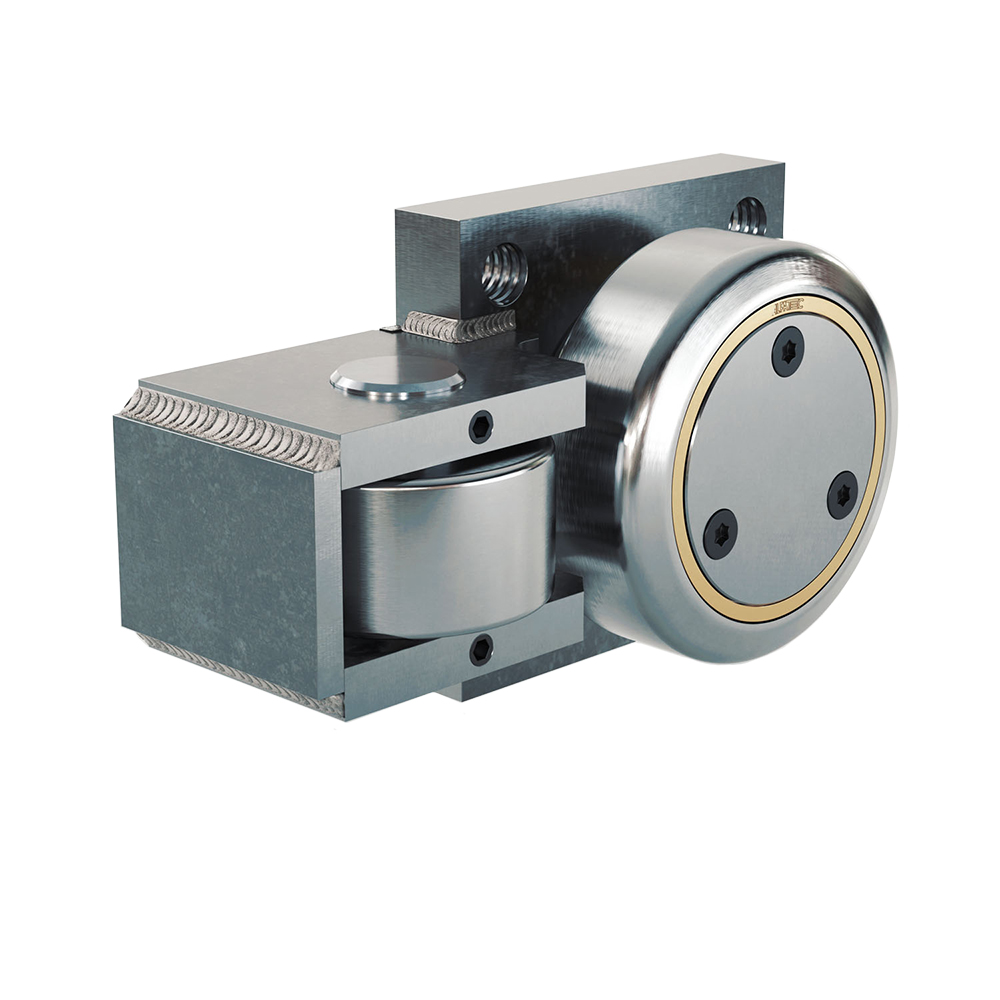

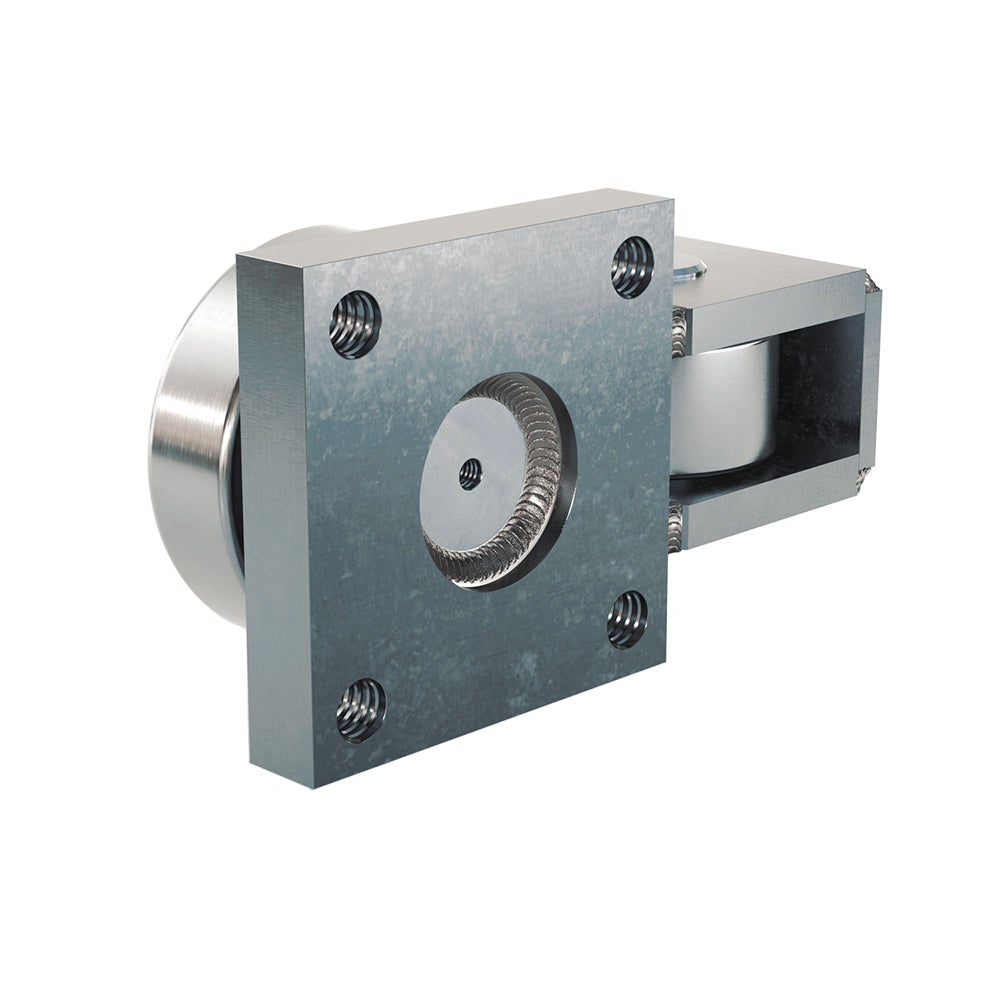

Heavy Roller XSTR---.6200

• Axial roller with 35% higher load capacity.
• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting
• Special dimensions on request

Use profile XUP---.0700

Order example: XSTR080.6200
Heavy roller XSTR080.6200

Dimensions in mm.

Product Information

Designation System Load Capacity Radial System Load Capacity Axial
15390 N 9000 N
16430 N 14000 N
18210 N 14000 N
31680 N 17000 N
34850 N 27000 N
47430 N 27000 N
82190 N 27000 N

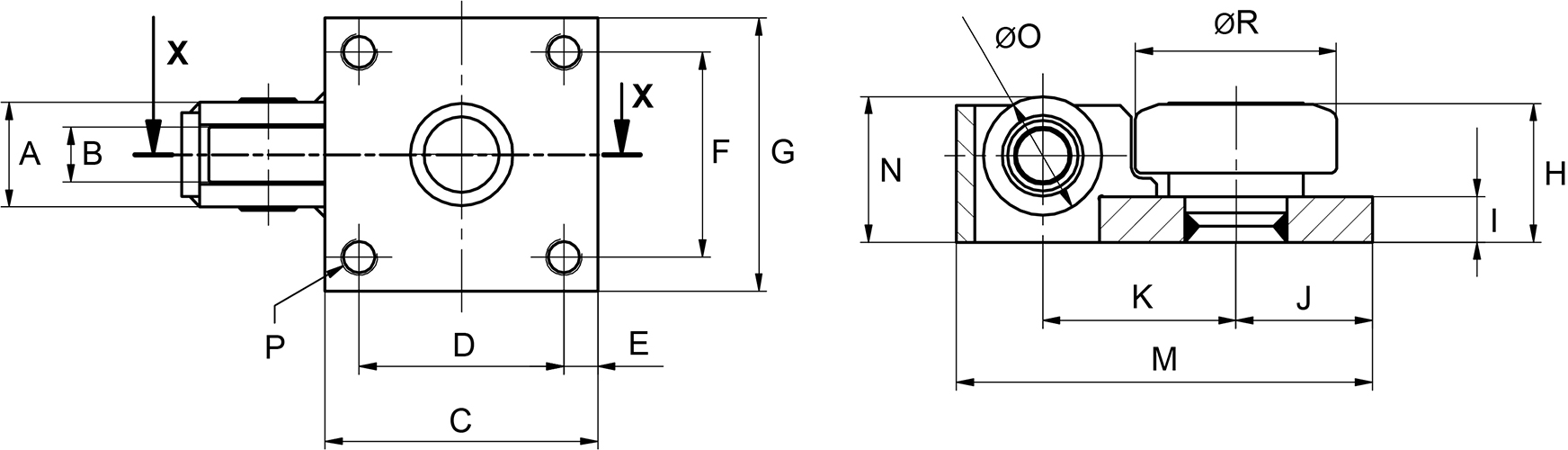

Technical Drawing
Designation A B C D E F G H I J K M N O P R
38 20 70 50 10 50 70 41,50 12 35 55 118 42,50 Ø 40 4 x M10 Ø 65,5
42 24 80 60 10 60 80 49 15 40 65 137 51 Ø 47 4 x M12 Ø 73,8
46 24 100 70 15 70 100 48,50 15 50 75 157 51,50 Ø 47 4 x M12 Ø 81,7
46 24 120 90 15 90 120 61 20 60 85 183 64 Ø 52 4 x M16 Ø 92,4
54 28 140 100 20 100 140 71,50 20 70 105 223 75 Ø 72 4 x M16 Ø 111,4
54 28 140 100 20 100 140 71,50 20 70 107 225 76 Ø 72 4 x M16 Ø 126,8
54 28 160 120 20 120 160 79 25 80 80 248 83,50 Ø 72 4 x M16 Ø 153,1
