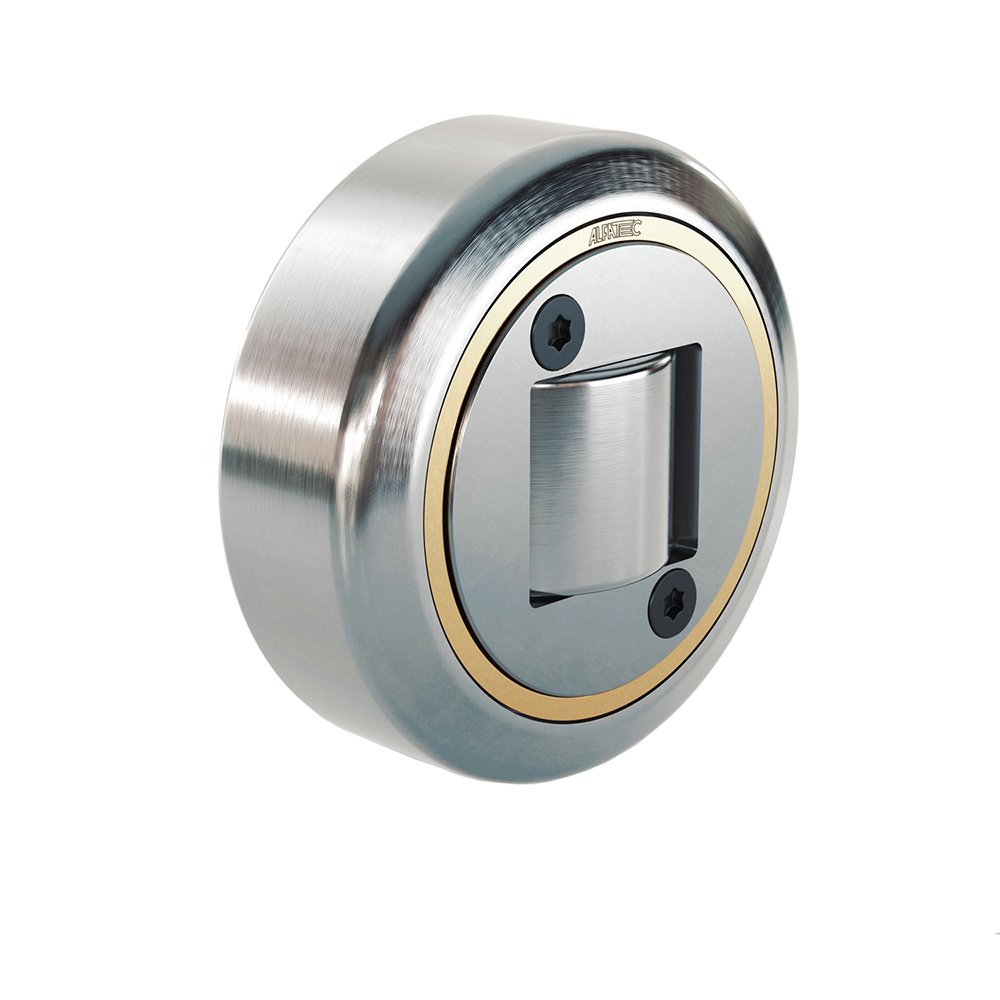

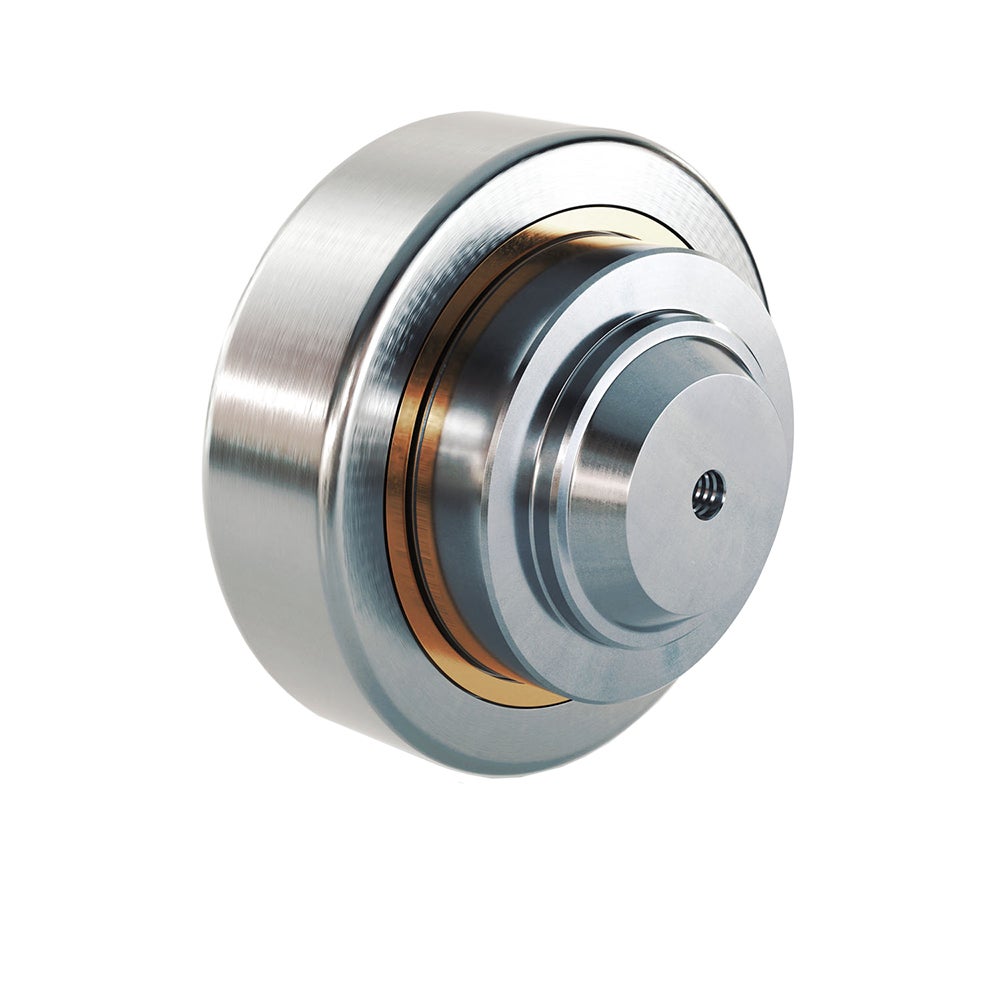

XTR---.0200

• Up to 60% higher load capacity
• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting

Use profile XUP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.
Read more

Product Information

Roller Type: Heavy
Sizes Available: 60; 70; 80; 90; 110; 120; 150
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile
Get quote 2 15390 3800 11000 31000 XUP---.0700
Get quote 2 16430 4100 13000 45500 XUP---.0700
Get quote 2 18210 6500 18000 48000 XUP---.0700
Get quote 2 31680 6600 23000 68000 XUP---.0700
Get quote 2 34850 11500 31000 81000 XUP---.0700
Get quote 2 47430 12700 43000 110000 XUP---.0700
Get quote 2 82190 22600 68000 151000 XUP---.0700

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote B D F G H L R T U
Get quote 20 65.5 7 9 37.5 30.5 20 42 30
Get quote 23 73.8 8 10.5 44 36 22 48 35
Get quote 23 81.7 11.5 10.5 48 36.5 24 54 40
Get quote 30 92.4 13 10.5 57 44 26 59 45
Get quote 31 111.4 14 20 69 55 34 71 60
Get quote 37 126.8 16.3 14 72.3 56 40 80 60
Get quote 45 153.1 20 8.5 78.5 58.5 50 103 60
