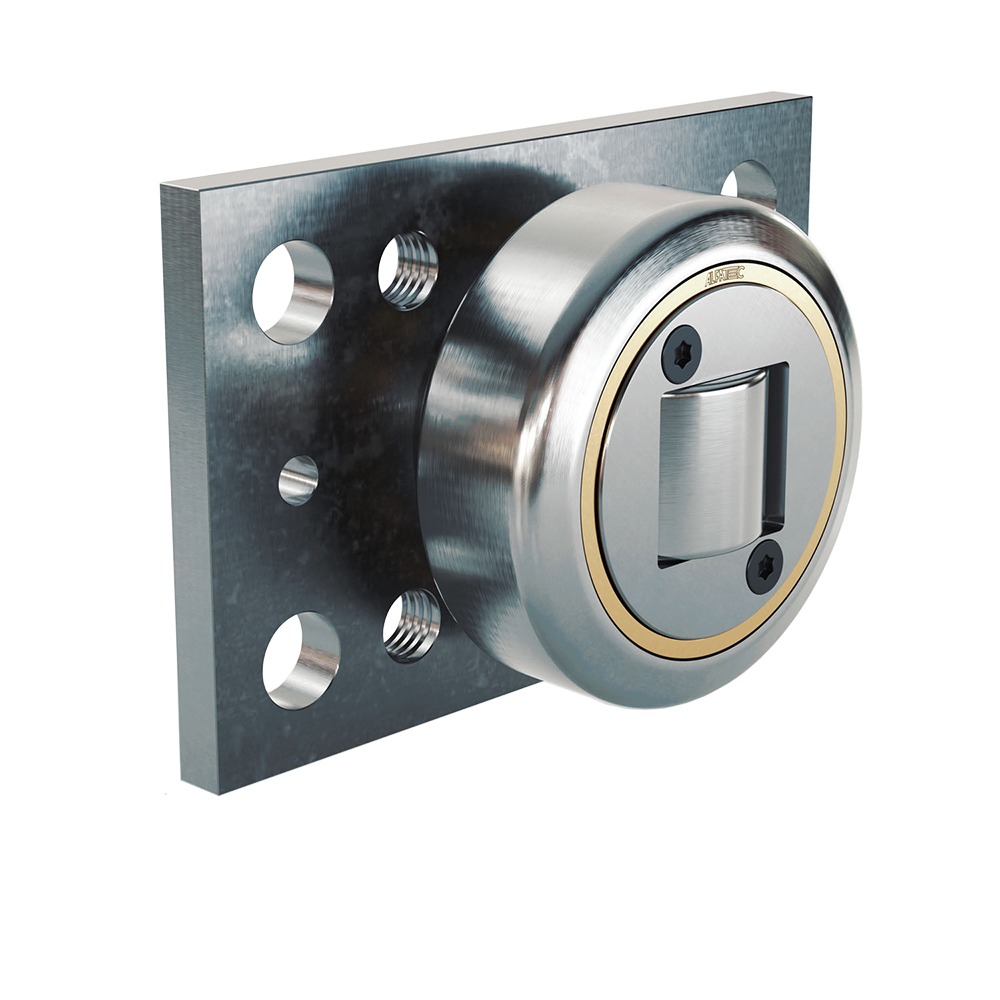

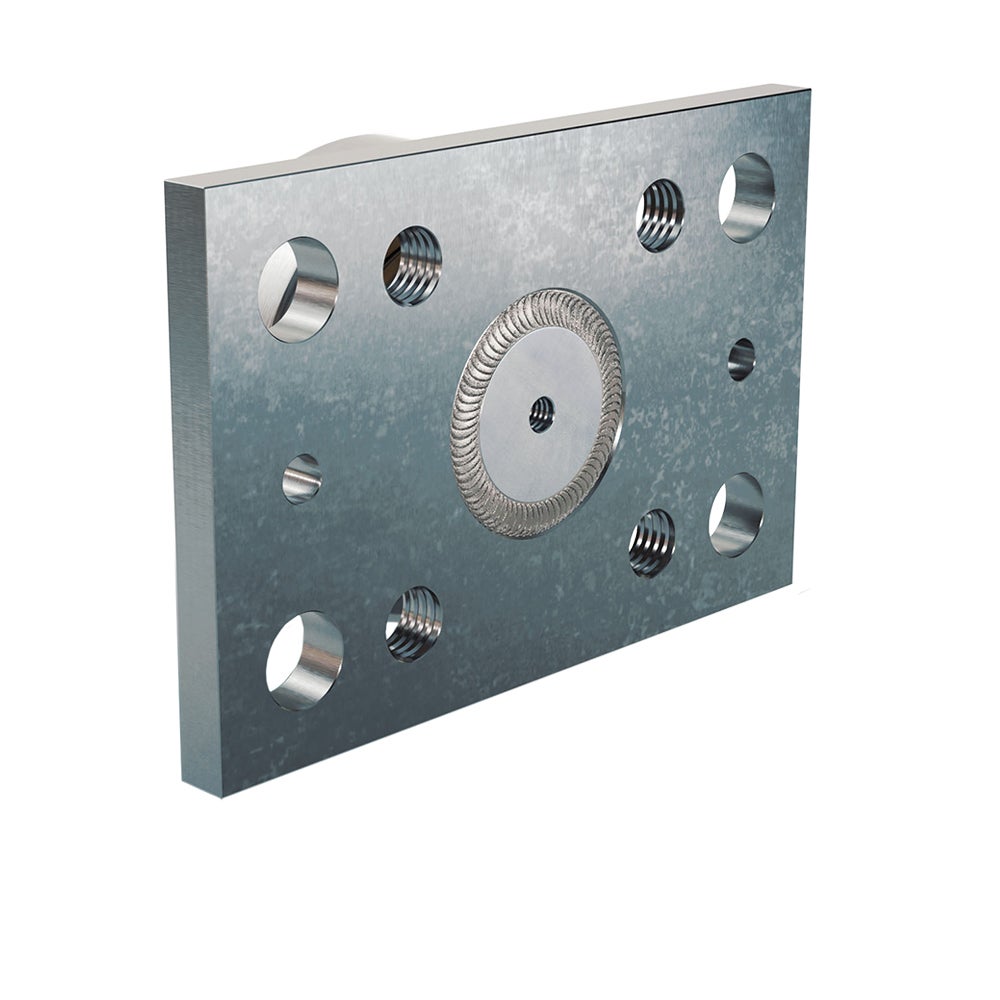

Fixing Element Rectangular BR---.1100

• The fixing element is welded with the respective combined roller
• Special dimensions on request.

* For L measurement, see respective roller.

Order example: Roller + fixing element TR070.0200/BR 1100
Roller, combined, fixed, Ø 70,1 mm - welded with mounting plate 120 x 80 x 15 mm

Dimensions in mm.

Product Information

Designation Remark

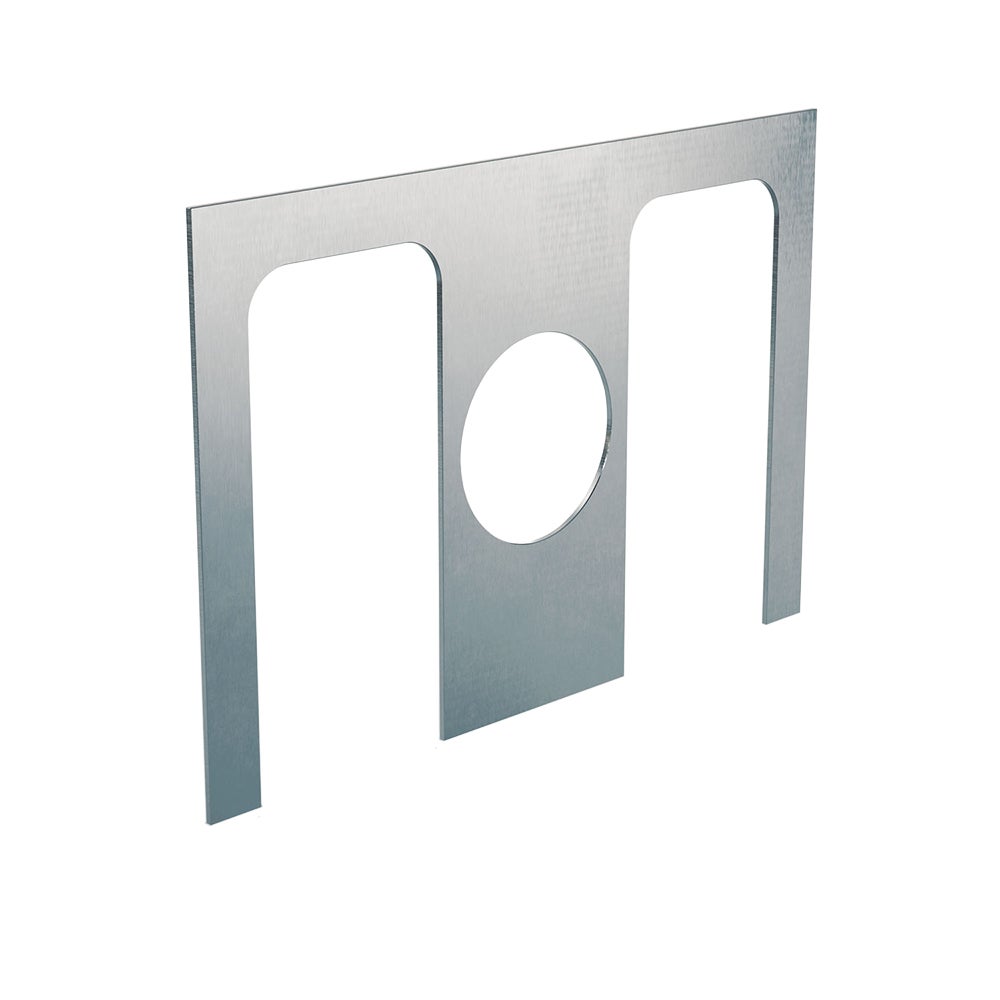

Roller: TR050.---, Plate: BR1100, Distance sheet: BR050.1505, BR050.1510
Roller: TR060.--- / XTR060.---, Plate: BR1100, Distance sheet: BR060.1505, BR060.1510
Roller: TR070.--- / XTR070.---, Plate: BR1100, Distance sheet: BR070.1505, BR070.1510
Roller: TR080.--- / XTR080.---, Plate: BR1100, Distance sheet: BR080.1505, BR080.1510
Roller: TR090.--- / XTR090.---, Plate: BR1100, Distance sheet: BR090.1505, BR090.1510
Roller: TR110.--- / XTR110.---, Plate: BR1100, Distance sheet: BR110.1505, BR110.1510
Roller: TR120.--- / XTR120.---, Plate: BR1100, Distance sheet: BR120.1505, BR120.1510
Roller: TR150.--- / XTR150.---, Plate: BR1100, Distance sheet: BR150.1505, BR150.1510

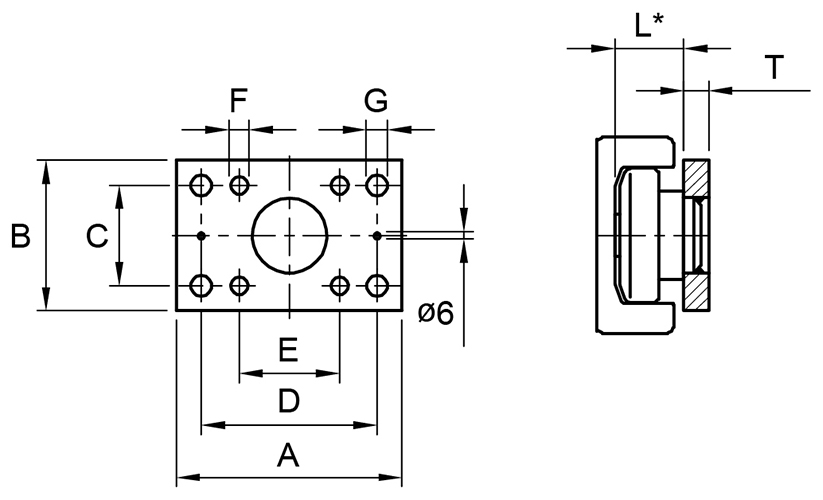

Technical Drawing
Designation A B C D E F G T
100 60 40 80 40 M10 10,50 10
100 60 40 80 40 M10 10,50 10
120 80 50 90 50 M12 13 15
120 80 50 90 50 M12 13 15
160 100 60 120 60 M16 17 20
180 120 80 140 80 M16 17 20
180 120 80 140 80 M16 17 20
200 150 100 160 100 M16 17 20
