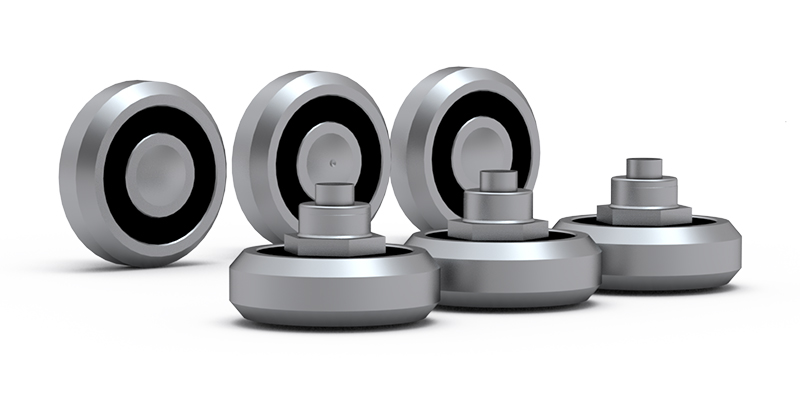

Rollers CPN-CPA

STOCK ITEM
Available individually in all sizes as eccentric or concentric rollers. Prismatic roller for T- and U-rail.
Roller seals: Standard 2Z (2ZR for size 63) is the steel cover disc, which is supplied on all standard sliders.
For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
Rollers are lubricated for life

Dimensions in mm.
Download PDF

Product Information

Material: Steel 100Cr6. Also available in stainless steel AISI 440.
Technical Drawing
Designation Select all Lead Time * Size Roller type Material
1 18 Concentric Steel
Compare
Get quote
2 18 Concentric Stainless steel
Compare
Get quote
1 18 Concentric Steel
Compare
Get quote
1 18 Eccentric Steel
Compare
Get quote
2 18 Eccentric Stainless steel
Compare
Get quote
1 18 Eccentric Steel
Compare
Get quote
1 28 Concentric Steel
Compare
Get quote
2 28 Concentric Stainless steel
Compare
Get quote
1 28 Concentric Steel
Compare
Get quote
1 28 Eccentric Steel
Compare
Get quote
2 28 Eccentric Stainless steel
Compare
Get quote
1 28 Eccentric Steel
Compare
Get quote
1 43 Concentric Steel
Compare
Get quote
2 43 Concentric Stainless steel
Compare
Get quote
1 43 Concentric Steel
Compare
Get quote
1 43 Eccentric Steel
Compare
Get quote
2 43 Eccentric Stainless steel
Compare
Get quote
1 43 Eccentric Steel
Compare
Get quote
1 63 Concentric Steel
Compare
Get quote
2 63 Concentric Stainless steel
Compare
Get quote
1 63 Eccentric Steel
Compare
Get quote
2 63 Eccentric Stainless steel
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

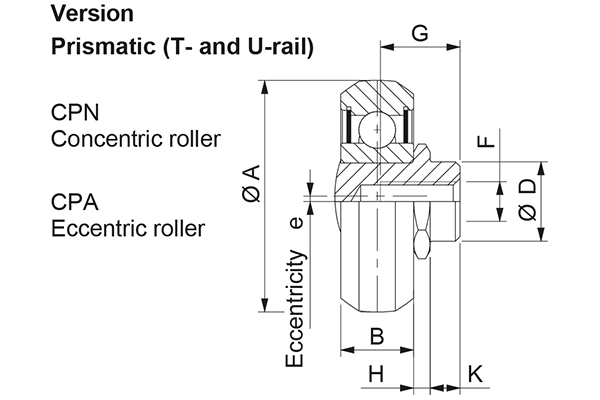

Technical Drawing
Designation Select all A B D e H G F K
14 4 6 - 1,55 5,50 M4 1,80
Compare
Get quote
14 4 6 - 1,55 5,50 M4 1,80
Compare
Get quote
14 4 6 - 1,55 5,50 M4 1,80
Compare
Get quote
14 4 6 0,40 1,55 5,50 M4 1,80
Compare
Get quote
14 4 6 0,40 1,55 5,50 M4 1,80
Compare
Get quote
14 4 6 0,40 1,55 5,50 M4 1,80
Compare
Get quote
23,20 7 10 - 2,20 7 M5 3,80
Compare
Get quote
23,20 7 10 - 2,20 7 M5 3,80
Compare
Get quote
23,20 7 10 - 2,20 7 M5 3,80
Compare
Get quote
23,20 7 10 0,60 2,20 7 M5 3,80
Compare
Get quote
23,20 7 10 0,60 2,20 7 M5 3,80
Compare
Get quote
23,20 7 10 0,60 2,20 7 M5 3,80
Compare
Get quote
35 11 12 - 2,50 12 M6 4,50
Compare
Get quote
35 11 12 - 2,50 12 M6 4,50
Compare
Get quote
35 11 12 - 2,50 12 M6 4,50
Compare
Get quote
35 11 12 0,80 2,50 12 M6 4,50
Compare
Get quote
35 11 12 0,80 2,50 12 M6 4,50
Compare
Get quote
35 11 12 0,80 2,50 12 M6 4,50
Compare
Get quote
50 17,50 18 - 2,30 16 M8 6
Compare
Get quote
50 17,50 18 - 2,30 16 M8 6
Compare
Get quote
50 17,50 18 1,20 2,30 16 M10 6
Compare
Get quote
50 17,50 18 1,20 2,30 16 M10 6
Compare
Get quote
Designation Select all C (N) C0rad (N) Weight (kg)
765 410 0
Compare
Get quote
765 410 0
Compare
Get quote
765 410 0
Compare
Get quote
765 410 0
Compare
Get quote
765 410 0
Compare
Get quote
765 410 0
Compare
Get quote
2130 1085 0,02
Compare
Get quote
2130 1085 0,02
Compare
Get quote
2130 1085 0,02
Compare
Get quote
2130 1085 0,02
Compare
Get quote
2130 1085 0,02
Compare
Get quote
2130 1085 0,02
Compare
Get quote
6140 2750 0,06
Compare
Get quote
6140 2750 0,06
Compare
Get quote
6140 2750 0,06
Compare
Get quote
6140 2750 0,06
Compare
Get quote
6140 2750 0,06
Compare
Get quote
6140 2750 0,06
Compare
Get quote
15375 6250 0,19
Compare
Get quote
15375 6250 0,19
Compare
Get quote
15375 6250 0,19
Compare
Get quote
15375 6250 0,19
Compare
Get quote
