Rollers CPN-CPA
Prismatic roller for T- and U-rail

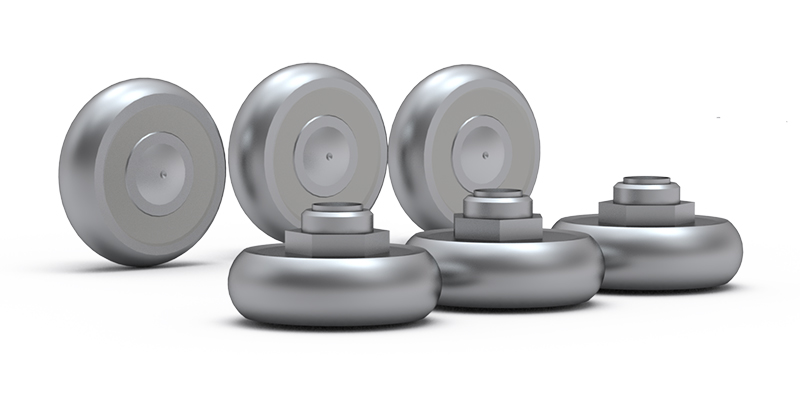

Rollers CRPN-CRPA
Available individually in all sizes as eccentric or concentric rollers. Crowned roller for K-rail.
Roller seals: Standard 2Z (2ZR for size 63) is the steel cover disc, which is supplied on all standard sliders.
For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
Rollers are lubricated for life.
Dimensions in mm.
Read more
Roller seals: Standard 2Z (2ZR for size 63) is the steel cover disc, which is supplied on all standard sliders.
For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
Rollers are lubricated for life.
Dimensions in mm.
Product Information
Material: Steel 100Cr6. Also available in stainless steel AISI 440.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Size | Roller type | Material | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 43 | Concentric | Steel | ||||
|
|
|
2 | 43 | Concentric | Stainless steel | ||||
|
|
|
2 | 43 | Eccentric | Steel | ||||
|
|
|
2 | 43 | Eccentric | Stainless steel | ||||
|
|
|
2 | 63 | Concentric | Steel | ||||
|
|
|
2 | 63 | Concentric | Stainless steel | ||||
|
|
|
2 | 63 | Eccentric | Steel | ||||
|
|
|
2 | 63 | Eccentric | Stainless steel |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

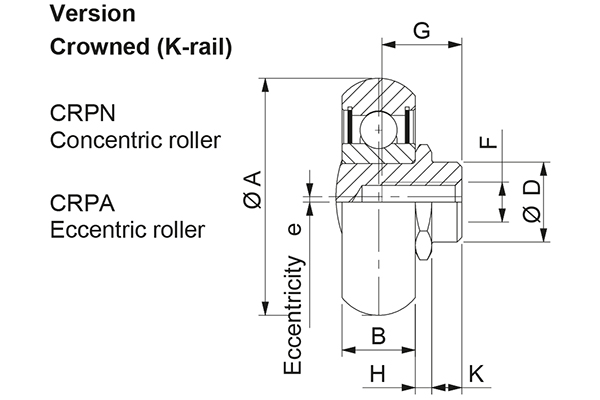

| Designation | Select all | CAD | Compare | Get quote | A | B | D | e | H | G | F | K | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
35.6 | 11 | 12 | - | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
35.6 | 11 | 12 | - | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
35.6 | 11 | 12 | 0.8 | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
35.6 | 11 | 12 | 0.8 | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
49.7 | 17.5 | 18 | - | 2.3 | 16 | M8 | 6 | ||||
|
|
|
49.7 | 17.5 | 18 | - | 2.3 | 16 | M8 | 6 | ||||
|
|
|
49.7 | 17.5 | 18 | 1.2 | 2.3 | 16 | M10 | 6 | ||||
|
|
|
49.7 | 17.5 | 18 | 1.2 | 2.3 | 16 | M10 | 6 |
| Designation | Select all | CAD | Compare | Get quote | C (N) | C0rad (N) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|
|
|
|
6140 | 2550 | 0.06 | ||||
|
|
|
6140 | 2550 | 0.06 | ||||
|
|
|
6140 | 2550 | 0.06 | ||||
|
|
|
6140 | 2550 | 0.06 | ||||
|
|
|
15375 | 5775 | 0.19 | ||||
|
|
|
15375 | 5775 | 0.19 | ||||
|
|
|
15375 | 5775 | 0.19 | ||||
|
|
|
15375 | 5775 | 0.19 |
| Designation | Select all | CAD | Compare | Get quote | Y | E | N min. | Radius R | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.55 | 18 + 0.02/-0.02 | 7 | 1 | ||||
|
|
|
0.55 | 18 + 0.02/-0.02 | 7 | 1 | ||||
|
|
|
0.55 | 18 + 0.02/-0.02 | 7 | 1 | ||||
|
|
|
0.55 | 18 + 0.02/-0.02 | 7 | 1 |
