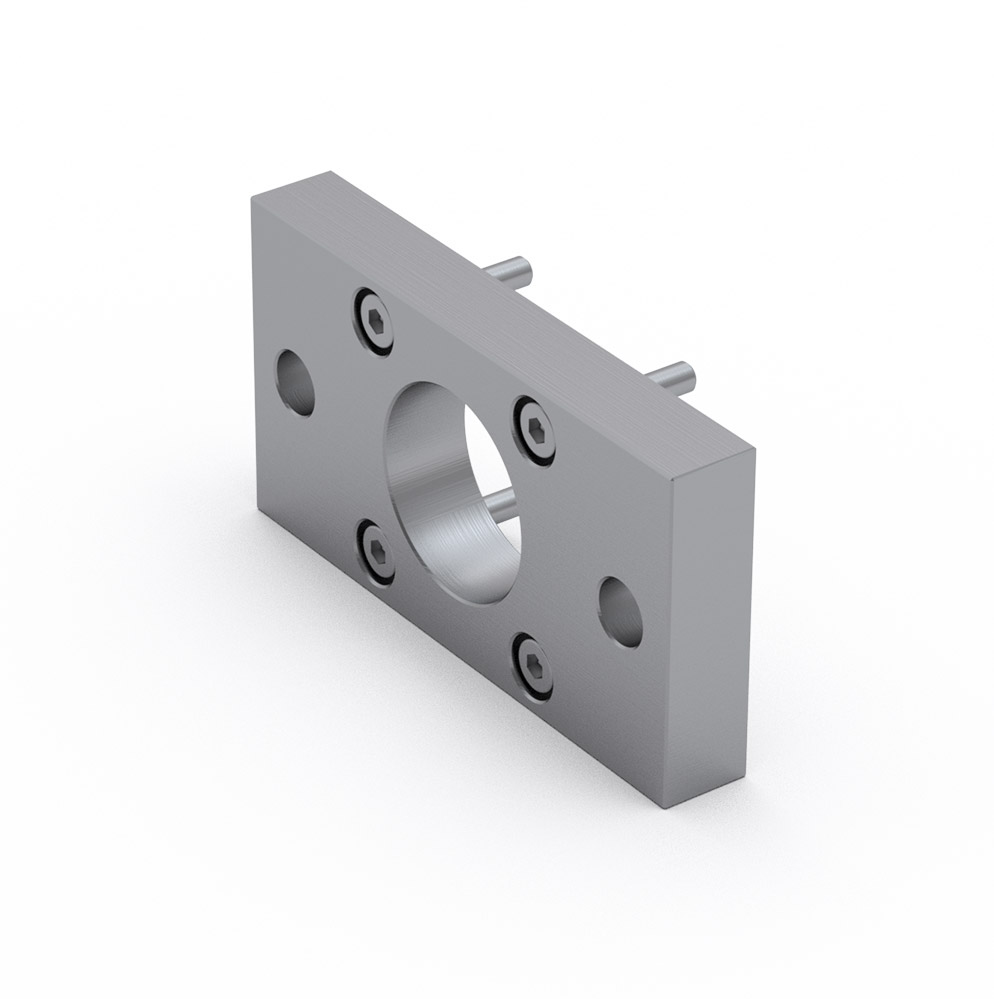

Flange mounting MAFL
Dimensions in mm.
Mounting screws are included.
Mounting screws are included.
Lataa PDF (kaikki tiedot)
code.product.loadingpdf
+
Lisää PDF-luetteloon
Product Information
Material: Anodized aluminium
| Designation | Select all | Lead Time * | Compatible with | Description | Material | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/0D498449D0423494303FE5BB0932F4626CC09BF848BABB243DD71D38DA932938/398183b71b794638b2192901b75d7bd9/STP/media/6247a1285de64a27bb8d824cd7b2238e/CAD_MAFL25-108624_FlangeMountingMAFL_Rollco.STP | 2 | MCE 25 | MAFL 25 | Anodized aluminium | F MCE | 0.03 |
|
||
|
|
/storage/876C78A86AD47EF380FD7E2E1266A85E5EC602F2BA007733D7535489D2AA4E6D/b938f6bc89bf4b00b20d3a1aacf339bb/STP/media/388b0b05f9d74a5ab8cf4b237d1ad1fd/CAD_MAFL32-108625_FlangeMountingMAFL_Rollco.STP | 2 | MCE 32 | MAFL 32 | Anodized aluminium | F MCE | 0.06 |
|
||
|
|
/storage/A90AB6D8E74F37FD234BCB05E8C99BF1028A564036DD0D57B9BCE2D8263D62F7/41c9d6a81c4e4fff984d910d83ff5fec/STP/media/202cc114fe124ec1bae0cdb5b9fbbeed/CAD_MAFL45-108626_FlangeMountingMAFL_Rollco.STP | 2 | MCE 45 | MAFL 45 | Anodized aluminium | F MCE | 0.11 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | D4 | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/0D498449D0423494303FE5BB0932F4626CC09BF848BABB243DD71D38DA932938/398183b71b794638b2192901b75d7bd9/STP/media/6247a1285de64a27bb8d824cd7b2238e/CAD_MAFL25-108624_FlangeMountingMAFL_Rollco.STP | 55 | 29 | 8 | 43 | - | 21 | 5.1 | 18 | 2.9 | 5.5 | 5.5 |
|
||
|
|
/storage/876C78A86AD47EF380FD7E2E1266A85E5EC602F2BA007733D7535489D2AA4E6D/b938f6bc89bf4b00b20d3a1aacf339bb/STP/media/388b0b05f9d74a5ab8cf4b237d1ad1fd/CAD_MAFL32-108625_FlangeMountingMAFL_Rollco.STP | 70 | 36 | 10 | 55 | - | 22 | 5.5 | 20 | 4.5 | 6.5 | 8 |
|
||
|
|
/storage/A90AB6D8E74F37FD234BCB05E8C99BF1028A564036DD0D57B9BCE2D8263D62F7/41c9d6a81c4e4fff984d910d83ff5fec/STP/media/202cc114fe124ec1bae0cdb5b9fbbeed/CAD_MAFL45-108626_FlangeMountingMAFL_Rollco.STP | 80 | 50 | 10 | 65 | 32 | 32 | 3.5 | 26 | 6.6 | 7 | 11 |
|
