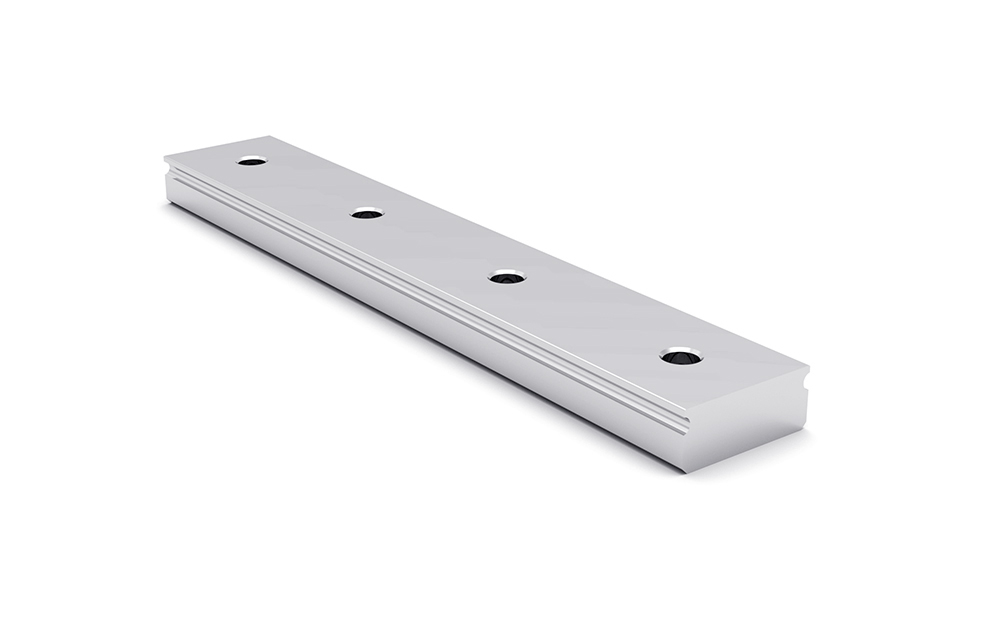

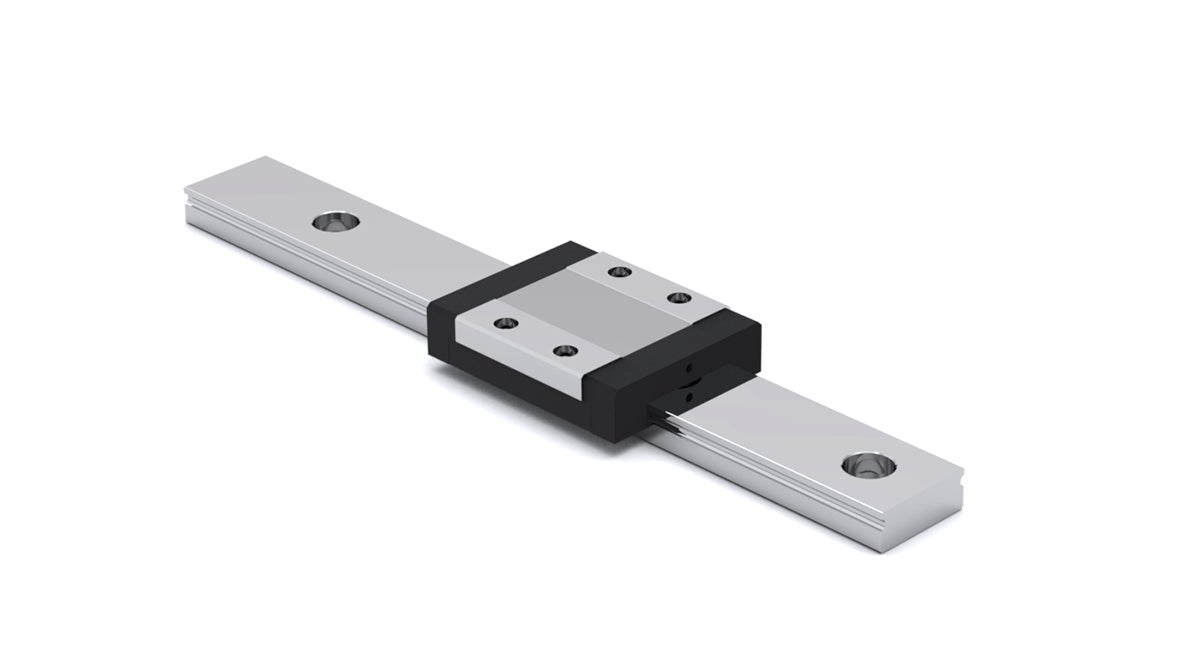

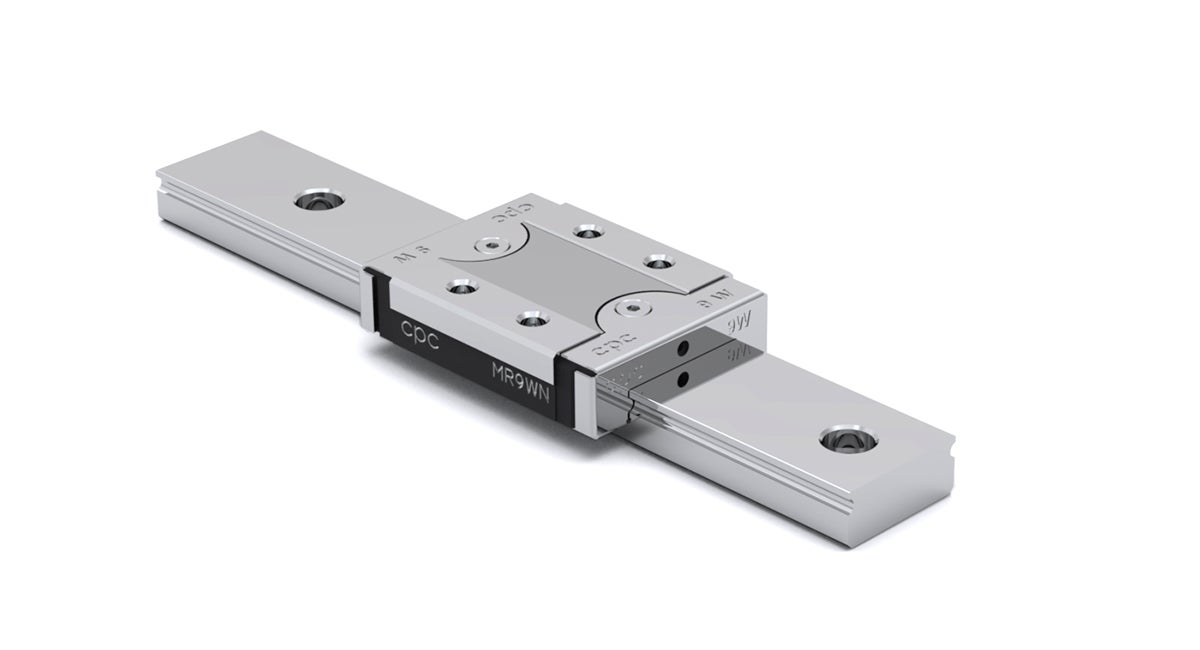

Wide MRU-W Rail

Tapped from bottom.

Dimensions in mm.

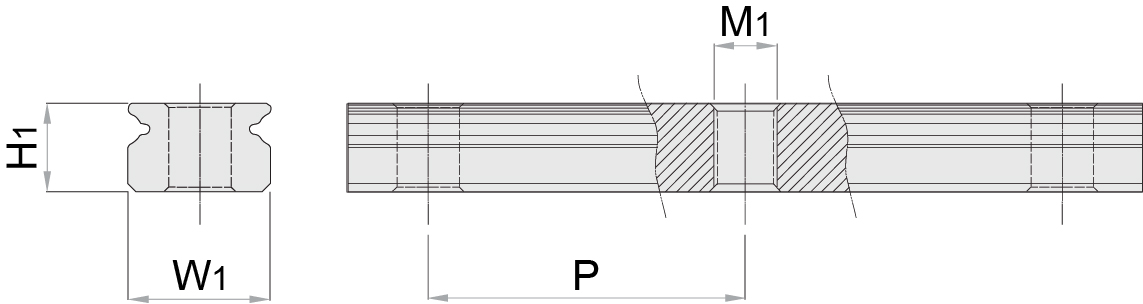

Technical Drawing
Designation H1 W1 Hole Pitch (P) M1 Weight Rail
2,60 4 10 - 69 g/m
2,70 6 15 M3x0,5 105 g/m
4 10 20 M3x0,5 280 g/m
5,20 14 30 M4x0,7 516 g/m
7,30 18 30 M4x0,7 940 g/m
8,50 24 40 M5x0,8 1472 g/m
9,50 42 40 M5x0,8 2818 g/m
