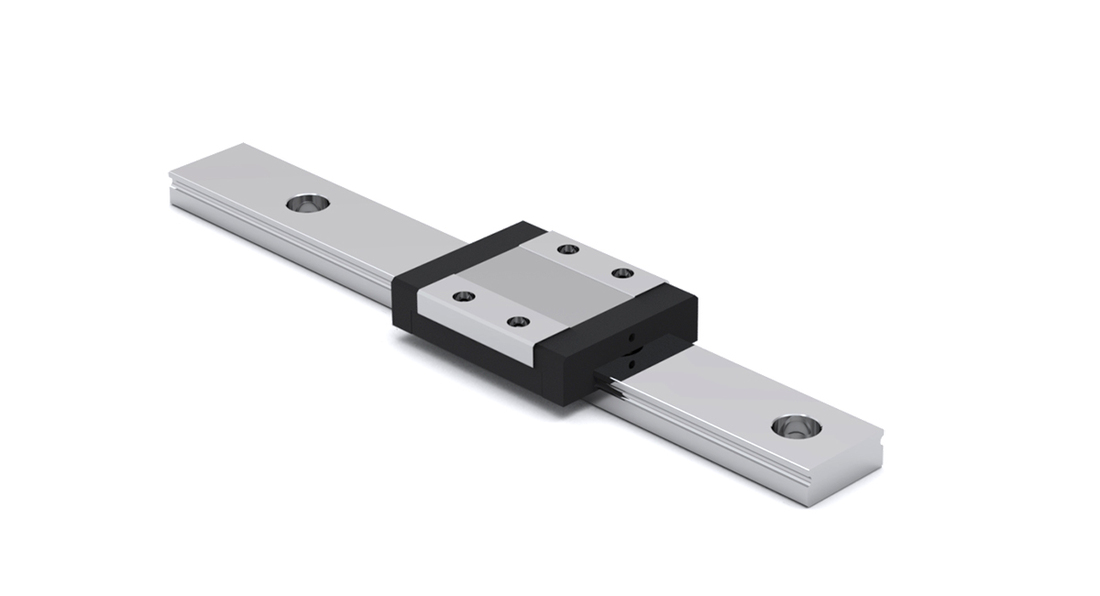

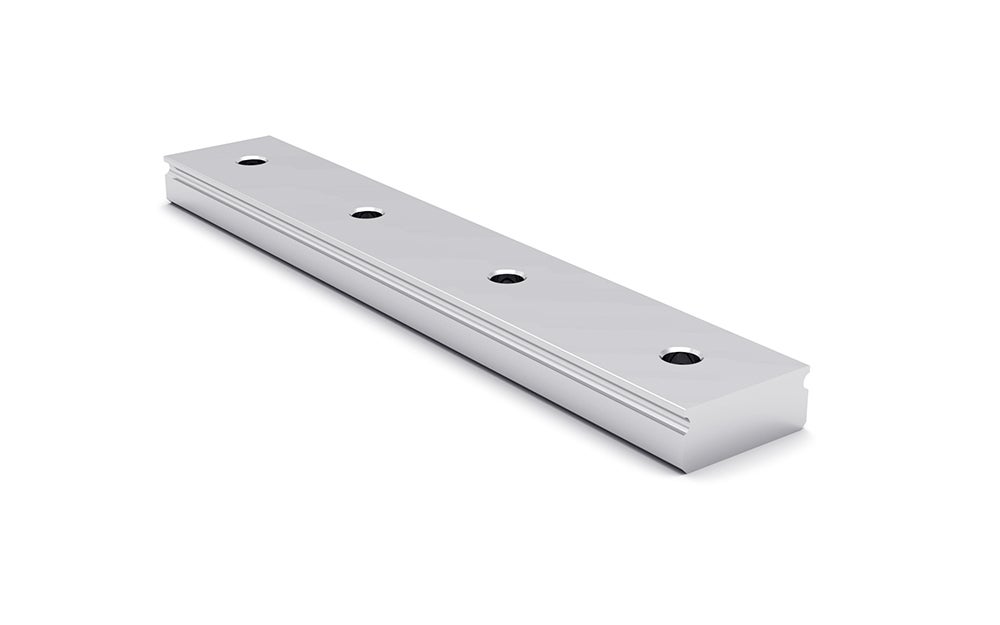

MR-W SS Series

STOCK ITEM
Wide rail type
(End seal)

Dimensions in mm.

Please note that blocks and rails are not sold separately for sizes 2, 3 and 5. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Download PDF
Additional Drawing 1

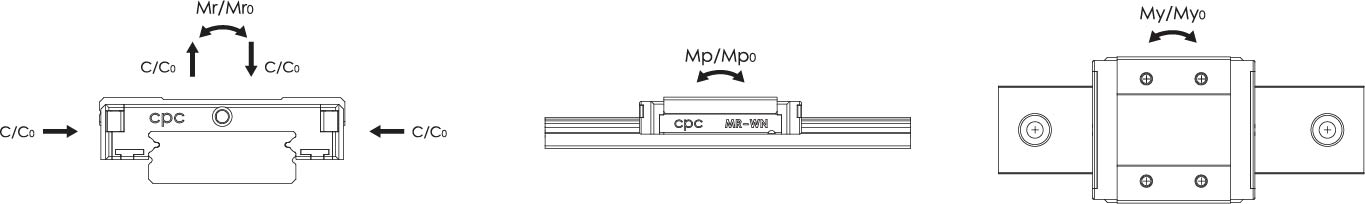

Designation Select all Lead Time * Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block
2 310 N 625 N 1,6 Nm 1,2 Nm 1,2 Nm 3 g
Compare
Get quote
2 280 N 530 N 1,6 Nm 0,9 Nm 0,9 Nm 3,4 g
Compare
Get quote
2 370 N 800 N 2,5 Nm 1,9 Nm 1,9 Nm 3,4 g
Compare
Get quote
1 475 N 900 N 4,6 Nm 2,2 Nm 2,2 Nm 6 g
Compare
Get quote
1 615 N 1315 N 6,8 Nm 4,1 Nm 4,1 Nm 8 g
Compare
Get quote
1 1180 N 2095 N 15 Nm 7,3 Nm 7,3 Nm 19 g
Compare
Get quote
1 1570 N 3140 N 22,65 Nm 14,9 Nm 14,9 Nm 27 g
Compare
Get quote
1 2030 N 3605 N 33,2 Nm 13,7 Nm 13,7 Nm 37 g
Compare
Get quote
1 2550 N 4990 N 45,9 Nm 26,7 Nm 26,7 Nm 51 g
Compare
Get quote
1 3065 N 5200 N 63,7 Nm 26,3 Nm 26,3 Nm 65 g
Compare
Get quote
1 4070 N 7800 N 95,6 Nm 56,4 Nm 56,4 Nm 93 g
Compare
Get quote
1 5065 N 8385 N 171,1 Nm 45,7 Nm 45,7 Nm 137 g
Compare
Get quote
1 6725 N 12580 N 257,6 Nm 257,6 Nm 93,1 Nm 200 g
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

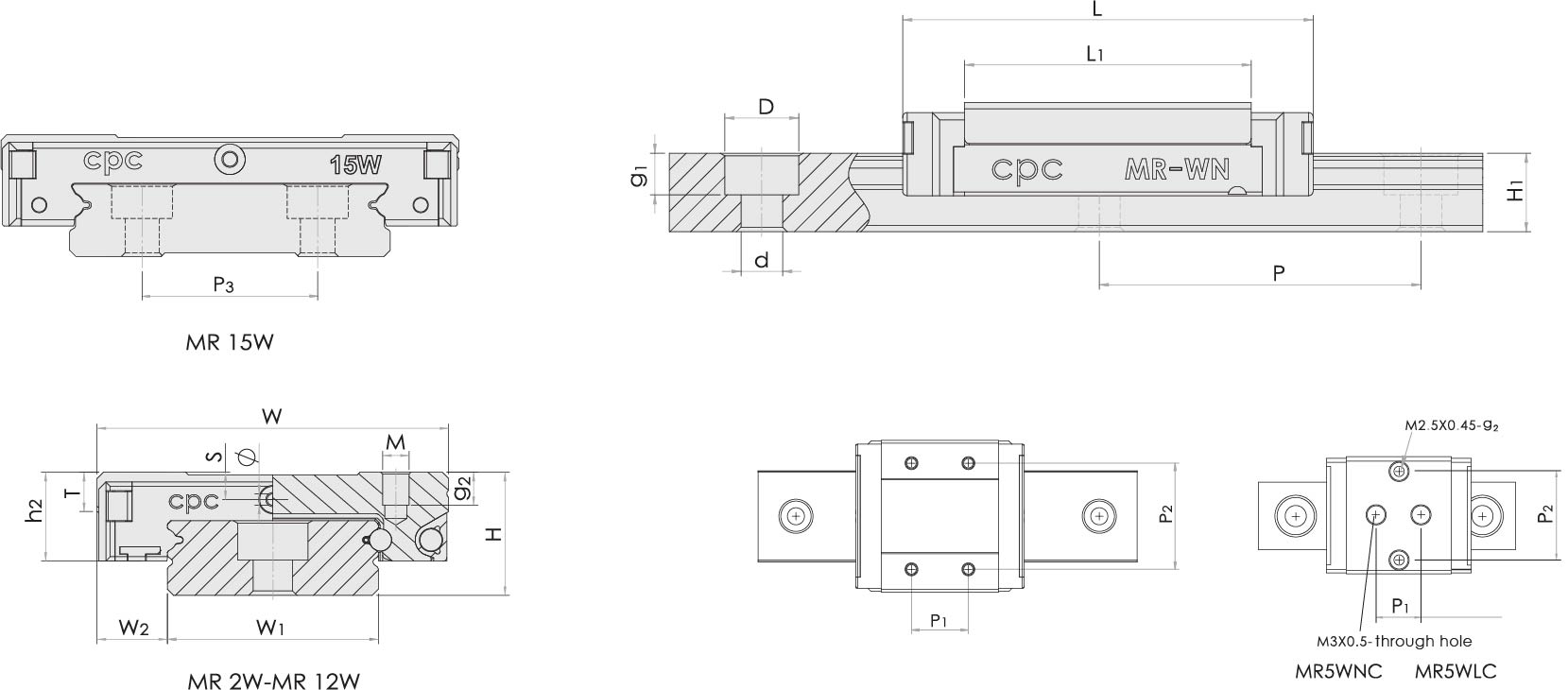

Technical Drawing
Designation Select all System Height (H) System Width (W) Block Length (L)
4 10 17
Compare
Get quote
4,50 12 15
Compare
Get quote
4,50 12 20,10
Compare
Get quote
6,50 17 21,10
Compare
Get quote
6,50 17 27,20
Compare
Get quote
9 25 31,80
Compare
Get quote
9 25 40,50
Compare
Get quote
12 30 39,10
Compare
Get quote
12 30 50,70
Compare
Get quote
14 40 44,50
Compare
Get quote
14 40 59,60
Compare
Get quote
16 60 55,80
Compare
Get quote
16 60 74,50
Compare
Get quote
Technical Drawing
Designation Select all P2 P1 S Mxg2
- 6,50 - M2x1,3
Compare
Get quote
- 4,50 0,80 M2x1,4
Compare
Get quote
- 8 0,80 M2x1,4
Compare
Get quote
13 6,50 1,20 M2,5x1,5
Compare
Get quote
13 11 1,20 M2,5x1,5
Compare
Get quote
19 10 1,90 M3x3
Compare
Get quote
19 19 1,90 M3x3
Compare
Get quote
21 12 2,60 M3x3
Compare
Get quote
23 24 2,60 M3x3
Compare
Get quote
28 15 3,10 M3x3,5
Compare
Get quote
28 28 3,10 M3x3,5
Compare
Get quote
45 20 3,30 M4x4,5
Compare
Get quote
45 35 3,30 M4x4,5
Compare
Get quote
Technical Drawing
Designation Select all W1 H1 D x d x g1 Hole Pitch (P)
4 2,60 2,8x1,8x1,0 10
Compare
Get quote
6 2,70 4x2,4x1,5 15
Compare
Get quote
6 2,70 4x2,4x1,5 15
Compare
Get quote
10 4 5,5x3x1,6 20
Compare
Get quote
10 4 5,5x3x1,6 20
Compare
Get quote
14 5,20 6x3,5x3,5 30
Compare
Get quote
14 5,20 6x3,5x3,5 30
Compare
Get quote
18 7,30 6x3,5x4,5 30
Compare
Get quote
18 7,30 6x3,5x4,5 30
Compare
Get quote
24 8,50 8x4,5x4,5 40
Compare
Get quote
24 8,50 8x4,5x4,5 40
Compare
Get quote
42 9,50 8x4,5x4,5 40
Compare
Get quote
42 9,50 8x4,5x4,5 40
Compare
Get quote
Technical Drawing
Designation Select all L1 h2 W2 Mxg2 T H1 ø
11,90 3 3 M2x1,3 1,30 2,60 -
Compare
Get quote
10 3,50 3 M2x1,4 1,80 2,70 0,30
Compare
Get quote
15,10 3,50 3 M2x1,4 1,80 2,70 0,30
Compare
Get quote
15,10 5 3,50 M2,5x1,5 2,30 4 0,90
Compare
Get quote
21,20 5 3,50 M2,5x1,5 2,30 4 0,90
Compare
Get quote
21,20 7 5,50 M3x3 3,20 5,20 1,10
Compare
Get quote
30,10 7 5,50 M3x3 3,20 5,20 1,10
Compare
Get quote
27,90 8,60 6 M3x3 4 7,30 1,30
Compare
Get quote
39,40 8,60 6 M3x3 4 7,30 1,30
Compare
Get quote
31,10 10,10 8 M3x3,5 4,50 8,50 1,40
Compare
Get quote
46 10,10 8 M3x3,5 4,50 8,50 1,40
Compare
Get quote
38,50 12 9 M4x4,5 4,50 9,50 1,90
Compare
Get quote
57,60 12 9 M4x4,5 4,50 9,50 1,90
Compare
Get quote
  • STOCK ITEM
    Wide block with reinforcement plate and integrated lubrication
