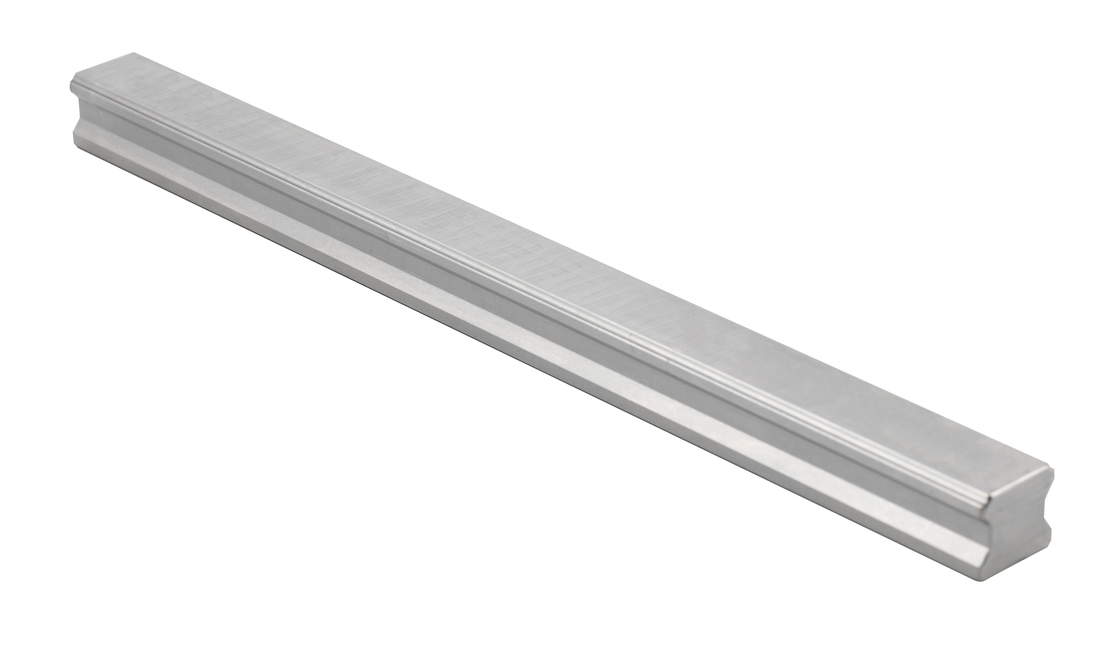

Bottom Mounting Rail SBI-B

STOCK ITEM
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Note: If the maximum length exceeds this size please contact Rollco.

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.

Dimensions in mm.

For more information about recommended screw size, strength and tightening torque, see Linear Rail SBI Technical Information.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Weight Rail (g/m)
Get quote 1 1390
Get quote 1 2370
Get quote 1 3260
Get quote 1 4630
Get quote 1 6450
Get quote 1 10490

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote W1 H1 h2 Hole Pitch (P) G S Length
Get quote 15 13 8 60 20 M5 3000
Get quote 20 16.5 9 60 20 M6 4000
Get quote 23 20 9 60 20 M6 4000
Get quote 28 23 12 80 20 M8 4000
Get quote 34 26 12 80 20 M8 4000
Get quote 45 32 18 105 22.5 M12 4000
  • STOCK ITEM RECOMMENDED

    SBI FL
    Flanged – normal length – standard height (most common)
  • STOCK ITEM RECOMMENDED

    SBI SL
    Slim – normal length – standard height
  • STOCK ITEM RECOMMENDED

    SBI FLL
    Flanged – long – standard height
  • STOCK ITEM RECOMMENDED
  • STOCK ITEM
  • STOCK ITEM
  • STOCK ITEM

    SBI FV
    Flanged – short – low height
  • STOCK ITEM

  • RC Cap
    Rail cap to prevent dirt/scrap on rail
