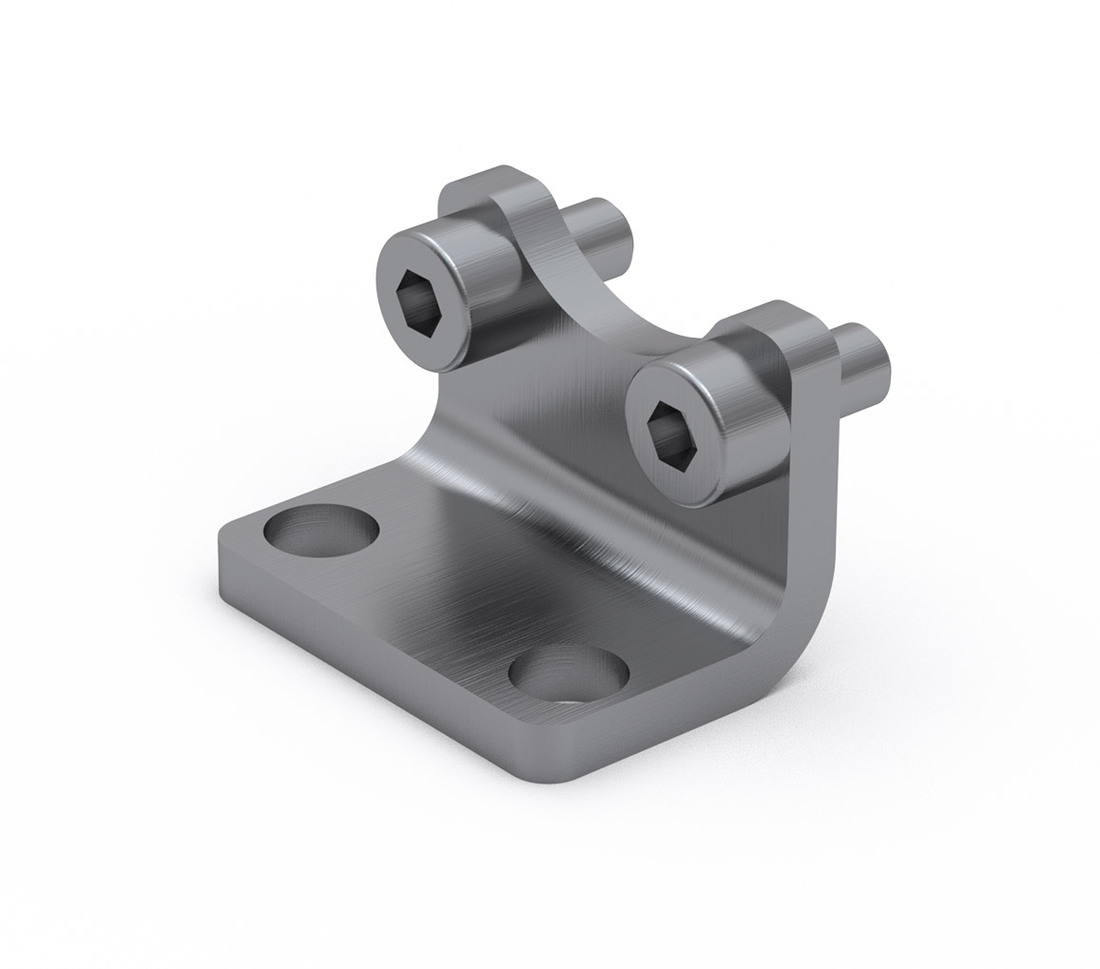

Foot mounting MAHP
Dimensions in mm.
Set contains 2 pcs (i.e. for both front and rear mounting). Mounting screws are included.
Set contains 2 pcs (i.e. for both front and rear mounting). Mounting screws are included.
Lataa PDF (kaikki tiedot)
code.product.loadingpdf
+
Lisää PDF-luetteloon
Product Information
Material: Stainless steel
| Designation | Select all | Lead Time * | Compatible with | Description | Material | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/A56CB851A0FBFBA53944D0640AACE896B29A82BD3AE7FAF5BCECC31B56D9CA27/6ff70fc6cc794e1a91185884b731b187/zip/media/53153858b3a64b1fbf25a6e48dab3d53/CAD_MAHP25-108253_FootMountingMAHP_Rollco.zip | 2 | MCE 25 | MAHP 25 | Stainless steel | F MCE | 0.04 |
|
||
|
|
/storage/3A966B4B06285CC2303B8E27D10FFD6B4A9A19A733D8C437E3CEE93BA85689C3/d4dc153a4b774eee8e07e39492608739/zip/media/3b208ba4941040ad93ff64ce568ca5f9/CAD_MAHP32-108254_FootMountingMAHP_Rollco.zip | 2 | MCE 32 | MAHP 32 | Stainless steel | F MCE | 0.06 |
|
||
|
|
/storage/386686FBD18F793086F1D5B6B3DECC85EA2D25C0233ED64EF0C9B4EDDD35D4D2/792d6a0e3db24af1a80301179ed8a793/zip/media/7b62de81b891449eaa7000ee2bf21655/CAD_MAHP45-108255_FootMountingMAHP_Rollco.zip | 2 | MCE 45 | MAHP 45 | Stainless steel | F MCE | 0.11 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | L1 | L2 | L3 | L4 | L6 | L8 | L9 | D1 | R | L5 Front | L5 Rear | L7 Front | L7 Rear | ØD2 Front | ØD2 Rear | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/A56CB851A0FBFBA53944D0640AACE896B29A82BD3AE7FAF5BCECC31B56D9CA27/6ff70fc6cc794e1a91185884b731b187/zip/media/53153858b3a64b1fbf25a6e48dab3d53/CAD_MAHP25-108253_FootMountingMAHP_Rollco.zip | 25 | 18 | 17.5 | 13 | 3 | 17.5 | 22 | 5.5 | 9 | 11.5 | 13 | 21 | 18 | 2.8 | 4.5 |
|
||
|
|
/storage/3A966B4B06285CC2303B8E27D10FFD6B4A9A19A733D8C437E3CEE93BA85689C3/d4dc153a4b774eee8e07e39492608739/zip/media/3b208ba4941040ad93ff64ce568ca5f9/CAD_MAHP32-108254_FootMountingMAHP_Rollco.zip | 32 | 22 | 22 | 16 | 3 | 20 | 25.5 | 6.6 | 10 | 14.5 | 14.5 | 22 | 22 | 4.5 | 5.5 |
|
||
|
|
/storage/386686FBD18F793086F1D5B6B3DECC85EA2D25C0233ED64EF0C9B4EDDD35D4D2/792d6a0e3db24af1a80301179ed8a793/zip/media/7b62de81b891449eaa7000ee2bf21655/CAD_MAHP45-108255_FootMountingMAHP_Rollco.zip | 45 | 32 | 26.2 | 18 | 3 | 24 | 32 | 6.6 | 13 | 16 | 16 | 32 | 32 | 6.6 | 6.6 |
|
-
-
