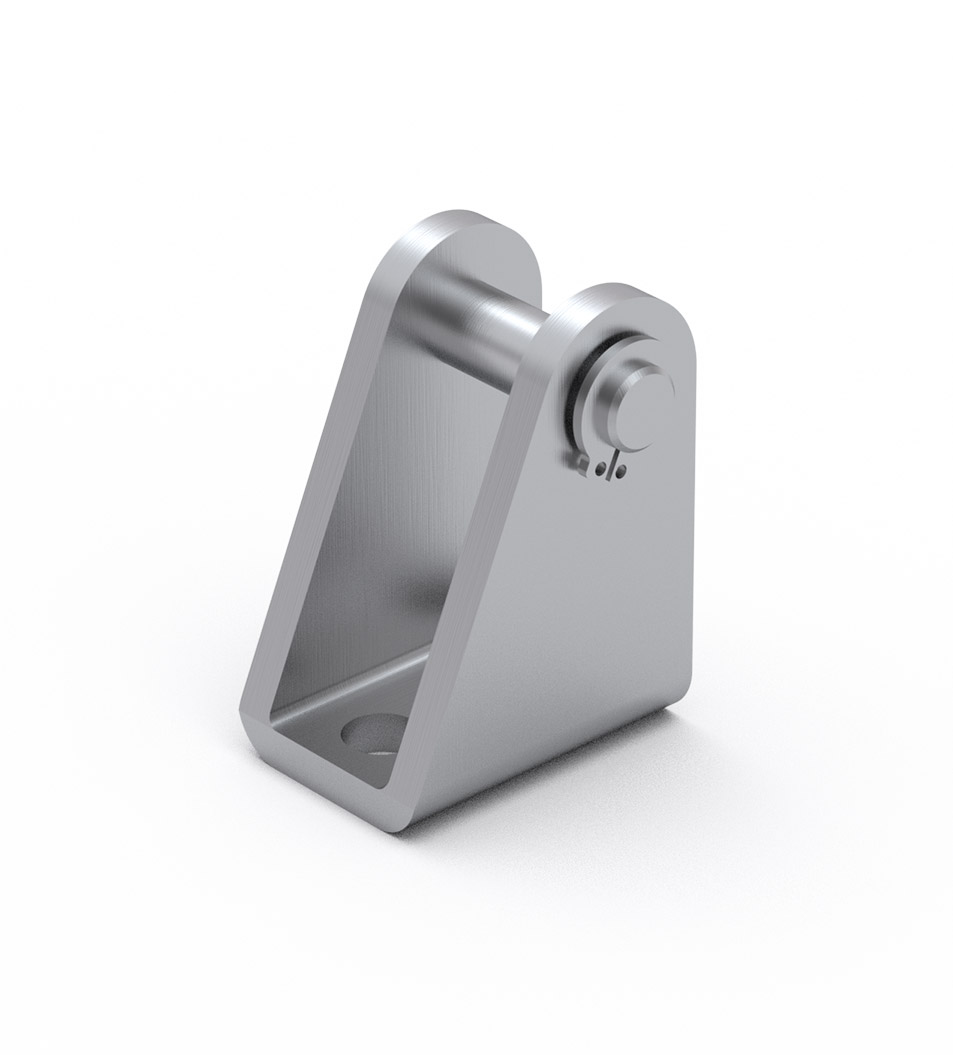

Clevis foot mounting MLBU

Dimensions in mm.
Lataa PDF code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

Material: Galvanized steel
Designation Select all Lead Time * Compatible with Description Material Fmax (N) Mass (kg) CAD Compare
/storage/8A5812852D34B9BBF9AFC3F51653EB45E9AF2EDAC056FE53A9976CCD585A9BBD/9c779f5effbb4f388503ac53cb815091/STP/media/2349ba87b6d54e3e9fa9b6903be7c9bd/CAD_MLBU25-108227_ClevisFootMountingMLBU_Rollco.STP 2 MCE 25 - Galvanized steel F MCE 0.04
Get quote
/storage/5E11AE2E90238B454402A2D489F5288BCB36C5906316FCEB4076B2A84F6093C3/7edec781244c4dd9aa2bff5f758fca26/STP/media/cd2ee7beaf3642418ca8676563c4a586/CAD_MLBU32-108226_ClevisFootMountingMLBU_Rollco.STP 2 MCE 32 MLBU 32 Galvanized steel F MCE 0.08
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all L1 L2 L3 L4 L5 L6 L7 D1 D2 R CAD Compare
/storage/8A5812852D34B9BBF9AFC3F51653EB45E9AF2EDAC056FE53A9976CCD585A9BBD/9c779f5effbb4f388503ac53cb815091/STP/media/2349ba87b6d54e3e9fa9b6903be7c9bd/CAD_MLBU25-108227_ClevisFootMountingMLBU_Rollco.STP 25 15 12.1 23.0 (+0.3/0) 27 (±0.5) 3 (±0.5) 18 6 (f7) 5.5 7
Get quote
/storage/5E11AE2E90238B454402A2D489F5288BCB36C5906316FCEB4076B2A84F6093C3/7edec781244c4dd9aa2bff5f758fca26/STP/media/cd2ee7beaf3642418ca8676563c4a586/CAD_MLBU32-108226_ClevisFootMountingMLBU_Rollco.STP 32 20 16.1 29.5 (+0.3/0) 30 (±0.5) 4 (±0.5) 24 8 (f7) 6.6 10
Get quote
