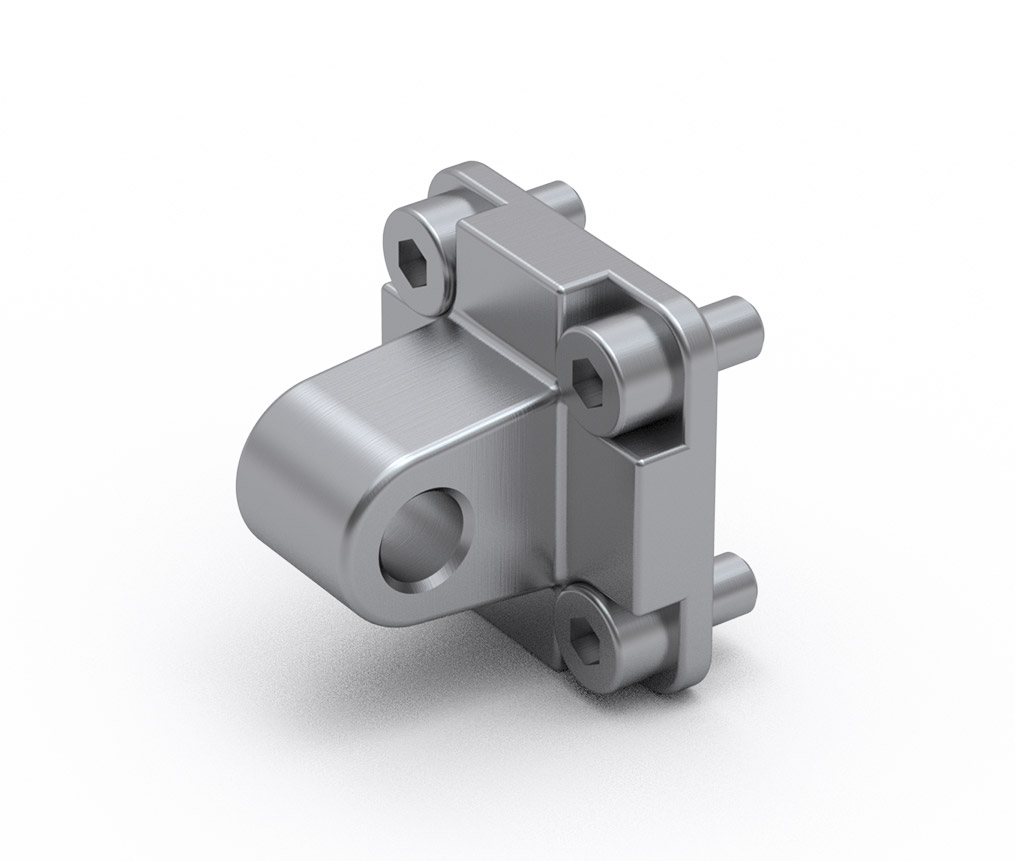

Swivel/clevis mount MASU

Dimensions in mm.

Mounting screws are included.
Lataa PDF code.product.loadingpdf
+ Lisää PDF-luetteloon

Product Information

Material: Aluminium (MASU 45: Aluminium and galvanized steel)
Designation Select all Compatible with Description Material Fmax (N) Mass (kg/m)
/storage/C193075C0176D8E2F9EDE405E462B07C2E581B9ECD10B0CE48045767425DEB63/fbc9fcd3919344aaa3ff42a24b6300af/STP/media/4755b0591c754efe9142fa2b5e8d4447/CAD_MASU25-108243_SwivelClevisMountMASU_Rollco.STP MCE 25 MASU 25 Aluminium F MCE 0,02 kg
Get quote
/storage/6CAB873774E6649BFEB6E5A8AA5A0B9C5186B7435A1FEEDD1244A522055DA8F9/9fa9ddd675004e13beb3d1735c0f41d2/STP/media/bfae4f5704934ae6bd4da3295d172380/CAD_MASU32-108244_SwivelClevisMountMASU_Rollco.STP MCE 32 MASU 32 Aluminium F MCE 0,03 kg
Get quote
/storage/EF670D2E4DCCBB309681D035A823064E3822DFA3885EF44C67FED1A8E27AE392/f6df5cd765bb47fbb2154193ff16da2d/STP/media/e616a265fa1643b8b0229dc6ca7592c6/CAD_MASU45-108245_SwivelClevisMountMASU_Rollco.STP MCE 45 MASU 45 Aluminium and galvanized steel F MCE 0,12 kg
Get quote
Designation Select all L1 L2 L3 L4 L5 L6 L7 L8 L9 D1 D2 D3 R1 R2
/storage/C193075C0176D8E2F9EDE405E462B07C2E581B9ECD10B0CE48045767425DEB63/fbc9fcd3919344aaa3ff42a24b6300af/STP/media/4755b0591c754efe9142fa2b5e8d4447/CAD_MASU25-108243_SwivelClevisMountMASU_Rollco.STP 27 (±0,2) 18 12 16 (±0,2) 10 2,60 6 3 - 6 4,50 10 (h11) 6 4,50
Get quote
/storage/6CAB873774E6649BFEB6E5A8AA5A0B9C5186B7435A1FEEDD1244A522055DA8F9/9fa9ddd675004e13beb3d1735c0f41d2/STP/media/bfae4f5704934ae6bd4da3295d172380/CAD_MASU32-108244_SwivelClevisMountMASU_Rollco.STP 34 (±0,2) 22 16 20 (±0,2) 14 2,60 6 3 - 8 5,50 12 (h11) 8 5
Get quote
/storage/EF670D2E4DCCBB309681D035A823064E3822DFA3885EF44C67FED1A8E27AE392/f6df5cd765bb47fbb2154193ff16da2d/STP/media/e616a265fa1643b8b0229dc6ca7592c6/CAD_MASU45-108245_SwivelClevisMountMASU_Rollco.STP 48 (±0,2) 32 26 22 (±0,2) 13 5,50 9 45 53 10 6,60 14 (h11) 10 5,50
Get quote
